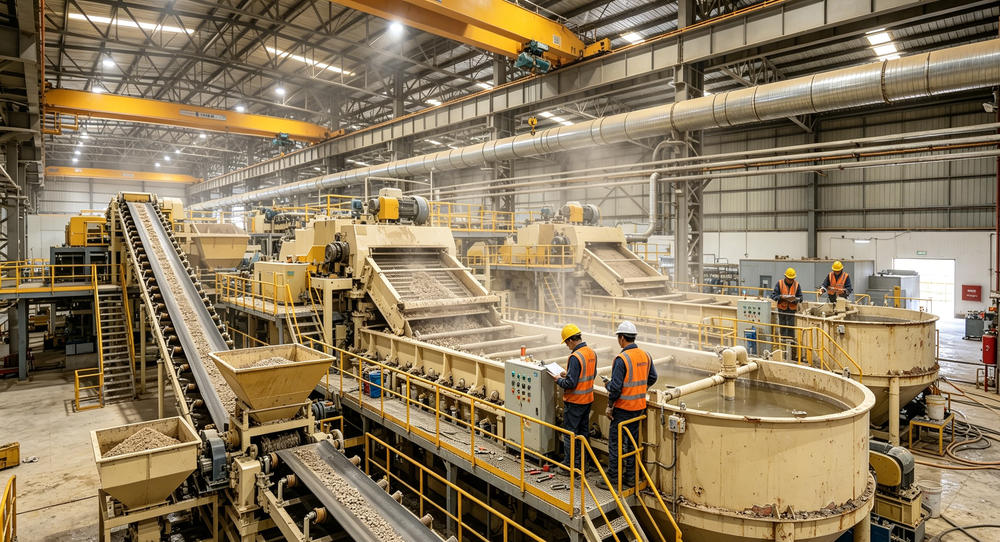

Large Capacity 50TPH Gold Ore Processing Line
Release time：
2026-06-19
Source：
GoFine

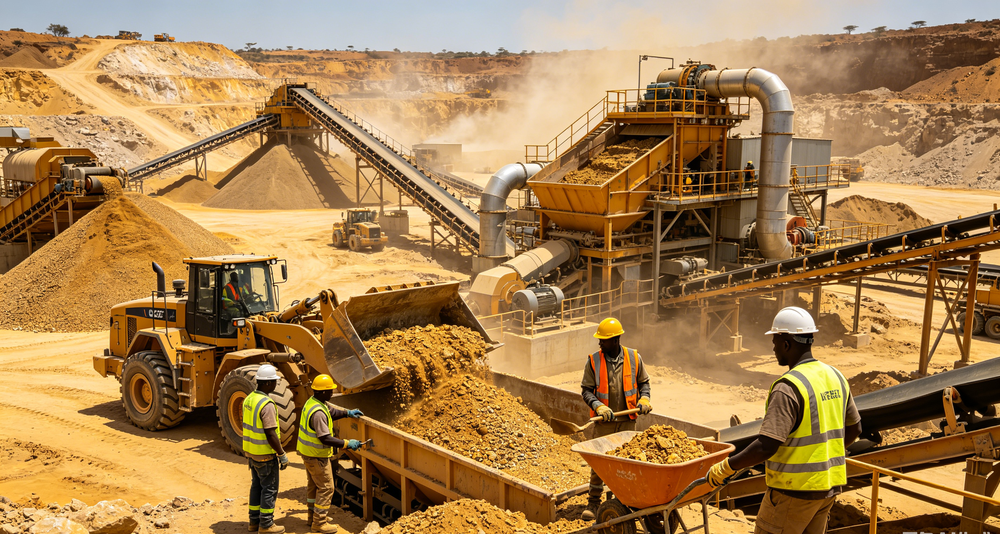

A large capacity 50TPH gold ore processing line is a full-scale industrial beneficiation system built for large-scale standardized gold mining enterprises, designed for a rated continuous throughput of 50 tons of raw gold ore per hour. As a mainstream heavy-duty gold processing solution between mid-sized 20TPH lines and super-large 100TPH mining plants, this integrated processing line delivers high daily output, optimized unit production cost, intelligent centralized control, and high comprehensive gold recovery efficiency for commercial gold mines with abundant ore reserves.
Different from small and medium assembled gold processing lines limited by throughput and structural load, the large capacity 50TPH gold ore processing line adopts heavy-duty wear-resistant equipment, two-stage closed-circuit crushing, hydrocyclone classified grinding, multi-stage combined gold separation and full-set tailings disposal systems. It supports 24-hour uninterrupted industrial operation, compatible with hard rock gold, quartz vein gold, oxidized gold, sulfide-associated gold and mixed alluvial-rock gold ore.
Beneficiation Principle of Large Capacity 50TPH Gold Processing Line
This large capacity 50TPH gold ore processing line adopts customizable combined beneficiation technology, prioritizing high-efficiency gravity separation as the core process, with optional flotation or CIL auxiliary modules for refractory gold ore upgrading. The core beneficiation logic relies on the significant density difference between metallic gold and gangue minerals including quartz, feldspar, rock debris and clay impurities.
Bulk raw gold ore undergoes layered crushing and precision classified grinding to realize complete monomer dissociation of micro-fine embedded gold inside rock structures. Qualified ore pulp is transported to parallel multi-group separation units for hierarchical gold enrichment. High-density gold particles are settled, captured and purified step by step, while low-density waste gangue is separated and delivered to professional tailings treatment systems. Optimized for large-volume pulp treatment, the 50TPH large capacity line maintains a stable comprehensive gold recovery rate of 88% to 94% for conventional free-milling gold ore, and over 85% recovery for moderately refractory associated gold ore after process adjustment.
Complete Industrial Processing Workflow
Customized for large-load continuous production, the 50TPH gold ore processing line features a closed-loop streamlined workflow with matched throughput of every section, eliminating material stacking, processing bottlenecks and fine gold loss common in mismatched large-capacity processing systems. The whole production flow covers raw ore management, crushing grinding, staged separation, concentrate refining and eco-friendly tailings disposal.
Front-end quantitative feeding and two-stage closed-circuit crushing serves as stable pretreatment. A large-capacity buffer hopper cooperates with heavy-duty vibrating feeders to achieve uniform feeding without material fluctuation. Raw ore goes through primary jaw crushing and secondary cone fine crushing to control particle size below 20mm. A double-deck circular vibrating screen classifies crushed materials, returning oversized coarse ore back to the cone crusher for cyclic crushing to guarantee uniform feeding size for grinding units.
Intelligent closed-circuit grinding and pulp conditioning is the key link for gold dissociation. Matched large-scale energy-saving ball mills work with hydrocyclone groups to form high-precision circulating grinding systems. Hydrocyclones classify pulp strictly to standard beneficiation fineness, reducing excessive fine mud generation that damages separation efficiency. Adjusted pulp density and pH value create optimal conditions for subsequent large-volume gold separation.
Core multi-group parallel gold separation improves overall processing efficiency. Multiple sets of industrial centrifugal concentrators run simultaneously for high-volume rough gold enrichment to capture coarse and medium fine gold. Crude gold concentrate is gathered and delivered to heavy-duty shaking tables for deep impurity removal and grade upgrading. Concentrator tailings flow into modular high-efficiency sluice systems to recycle ultra-fine flour gold. Final high-grade gold concentrate undergoes dewatering and drying, while tailings are pressed and stacked dry, and process water is recycled for cyclic production.
Full-Set Equipment Configuration of 50TPH Large Capacity Gold Line
All configured equipment adopts thickened high-manganese steel wear-resistant structure, industrial-grade motor and centralized intelligent control system, specially calibrated for long-term 50TPH full-load operation. Parallel unit design ensures uninterrupted production even with single set maintenance, improving overall line operation rate. Detailed equipment configuration and functional features are listed below.
|
Processing Section
|
Industrial Matching Equipment
|
Core Large-Capacity Functional Performance
|
|---|---|---|
|
Feeding & Closed-Circuit Crushing
|
15m³ buffer hopper, heavy-duty vibrating feeder, PE600×900 jaw crusher, cone crusher, double-deck vibrating screen
|
Stable 50TPH continuous feeding, high-efficiency cyclic crushing, anti-blocking design, low liner wear for long-term operation
|
|
Intelligent Closed-Circuit Grinding
|
2745 energy-saving ball mill, hydrocyclone cluster, anti-corrosion slurry pump
|
Precise pulp classification, full gold mineral dissociation, frequency conversion speed regulation, reduce unit power consumption
|
|
Parallel Rough Concentration
|
Multi-group industrial gold centrifugal concentrators
|
Large-volume pulp disposal, high capture rate of coarse gold, balanced separation effect under full-load operation
|
|
Concentrate Fine Upgrading
|
Heavy-duty 6-S gold shaking table assembly, concentrate thickener
|
Remove black sand, magnetite and gangue impurities, boost final gold concentrate grade greatly
|
|
Ultra-Fine Gold Tailings Recovery
|
Large-scale modular sluice box, tailings filter press
|
Recover micron-level fine gold, realize dry tailings stacking, minimize total gold loss rate
|
|
Centralized Auxiliary System
|
PLC intelligent control cabinet, full closed water recycling system, centralized lubrication unit
|
One-click operation monitoring, 90% process water recycling rate, lower labor input and maintenance cost
|
Core Advantages of Large Capacity 50TPH Gold Ore Processing Line
Compared with medium-size 10TPH/20TPH gold beneficiation lines and ultra-large customized 100TPH gold plants, the large capacity 50TPH gold ore processing line possesses irreplaceable economic, operational and scalable advantages for large registered commercial gold mines.
Optimal scale production benefits reduce comprehensive processing cost. The 50TPH rated throughput realizes scale effect, cutting power consumption, labor cost and maintenance expense per ton of ore significantly. Compared with scattered medium lines, it saves overall site construction and infrastructure investment; compared with ultra-large gold plants, it avoids excessive capital occupation, high foundation construction cost and difficult daily management, achieving the best profit-cost ratio for large mining projects.
High operational stability and ultra-high line operation rate. Adopting parallel separation unit design and dual backup power design, the whole line can maintain 22-hour daily full-load operation. Heavy-duty industrial equipment extends service life up to 10 years, with low failure rate and scheduled maintainable structure, avoiding long-time full-line shutdown caused by single equipment fault.
Powerful multi-ore adaptive expandability. The standard 50TPH gravity separation main line can be quickly equipped with flotation cells, CIL leaching tanks or reagent dosing modules without reconstructing crushing and grinding foundations. It can flexibly process oxidized gold, hard rock gold, sulfide refractory gold and mixed gold ore, adapting to changing ore properties in different mining zones.
Standard eco-friendly industrial compliant design. Equipped with full closed water circulation, dry tailings disposal and dust removal devices, the line achieves zero random sewage discharge and low dust emission. Pure physical main processing reduces chemical usage, helping mines pass local environmental assessment and obtain long-term mining operation licenses smoothly.
Applicable Ore Types and Large-Scale Mining Scenarios
The large capacity 50TPH gold ore processing line is designed for high-reserve formal gold mining areas. It fits free-milling hard rock gold, quartz vein associated gold, surface weathered oxidized gold, low-to-medium sulfide refractory gold ore, and mixed placer-rock gold ore with moderate mud content. It is also ideal for secondary gold recovery of large abandoned mine gold-bearing tailings piles.
Target application scenarios include large registered commercial gold mines, mining zone capacity expansion projects, EPC turnkey gold beneficiation factory projects, cross-region standardized gold processing bases, and large remote mining sites with complete power and water supporting facilities. It can run independently as a full gold extraction line, or serve as front-end pre-concentration equipment supporting large-scale CIL gold leaching production lines to maximize overall gold output.
Large-Scale Operation and Regular Maintenance Specifications
To sustain long-term rated 50TPH full-load production, standardized centralized operation management is required. Professional operators shall monitor feeding volume, grinding fineness and pulp density via PLC intelligent panel in real time, keep feeding uniformity, and prohibit hard metal sundries entering crushing cavities to prevent equipment damage.
Adjust water flow, vibration frequency and reagent dosage according to daily ore grade and impurity changes to stabilize gold recovery rate. Implement daily centralized lubrication for rotating bearings, weekly inspection of crusher liners, ball mill lining plates and screen mesh wear, and monthly debugging of separation units to keep balanced processing efficiency of parallel equipment groups.
Clean circulating sediment tanks and tailings filter press regularly to guarantee stable water circulation efficiency. Reasonable standardized maintenance can greatly reduce sudden downtime, keep the whole line operation rate above 92%, and lower long-term equipment replacement investment.
FAQ
What is a large capacity 50TPH gold ore processing line?
It is a heavy-duty industrial full-set gold beneficiation system with 50 tons per hour rated processing capacity. Equipped with closed-circuit crushing, classified grinding, parallel gold separation and intelligent control system, it is built for 24-hour large-scale continuous gold extraction for formal commercial gold mines.
What is the gold recovery rate of the 50TPH large capacity line?
For conventional hard rock and oxidized free-milling gold ore, the line keeps a stable recovery rate of 88% to 94%. After adding flotation or leaching auxiliary modules, the recovery rate for moderately refractory gold ore can reach over 85%.
Can the 50TPH gold line process refractory gold ore?
Yes. The standard gravity separation main line supports modular upgrading. It can add flotation or small CIL units without main line reconstruction, adapting to sulfide-associated and fine-grained refractory gold ore processing demands.
Why choose 50TPH large capacity line instead of other models?
It achieves balanced large output and reasonable investment cost. It delivers far higher daily gold yield than 5TPH/10TPH/20TPH medium lines, requires less capital risk and easier site management than 100TPH super-large plants, with higher operation rate and better long-term economic benefits.
Conclusion
The large capacity 50TPH gold ore processing line is a mature, intelligent and high-profit large-scale industrial gold beneficiation solution for modern standardized commercial gold mining. Featuring heavy-duty matched equipment, parallel high-efficiency separation structure, intelligent centralized control, eco-friendly closed-loop production and flexible process upgrading performance, it solves low output, high unit cost and poor scalability defects of medium-small gold processing lines, while lowering the high investment threshold and management difficulty of ultra-large gold beneficiation plants.
