Magnetic Separation Production Line

Production Capacity: 10-1000 t/h Equipment Advantages: High efficiency, low energy consumption, high throughput, economical and reasonable Motor Power: 10-100 kW Application Areas: Iron beneficiation and iron removal processes

Hotline： +86 151 3866 6240 richard@zzgofine.com

Consult Consult

Online message

Product Introduction

Magnetic separation utilizes the competition between magnetic force and mechanical forces (gravity, centrifugal force, fluid resistance, etc.) to achieve separation. A necessary condition for the separation of magnetic particles is that the magnetic force acting on the magnetic mineral particles must be greater than the resultant force of the mechanical forces acting in the opposite direction. In actual production, factors affecting the separation effect include magnetic field strength, magnetic field gradient, mineral particle size, and pulp concentration.

A magnetic separation production line is a mineral processing technology that uses the difference in magnetic properties to separate strongly magnetic minerals from non-magnetic/weakly magnetic minerals through magnetic separation equipment. It is mainly used for the separation of ores such as magnetite, pyrrhotite, manganese ore, and ilmenite.

Process Flow:

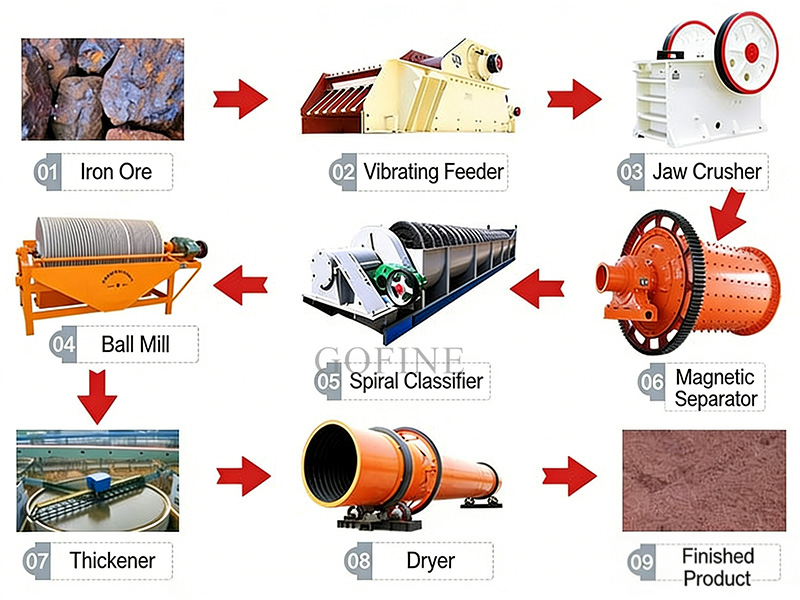

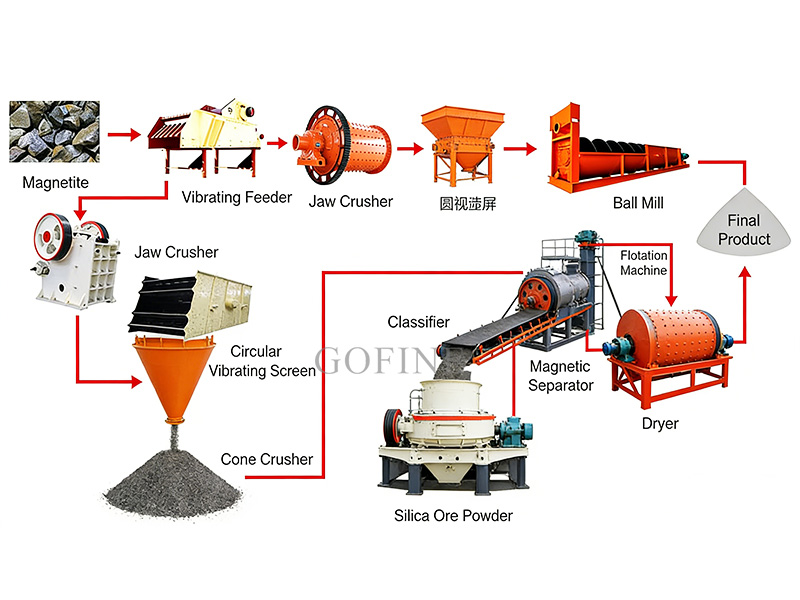

Raw ore → Crushing and screening → Grinding and classification → Magnetic separation (roughing → cleaning → scavenging) → Concentrate dewatering → Finished concentrate

Core Equipment:
Jaw crusher, cone crusher
Ball mill, classifier
Wet/dry magnetic separator
Thickener, filter press

Process Features:
Reagent-free, environmentally friendly and pollution-free
Simple process, stable operation
High recovery rate, good concentrate grade
High degree of automation, low operating cost
High adaptability, suitable for both large and small scales

Performance Advantages

Intelligent

Automatic analysis of operating status and early warning of abnormal conditions allow you to be fully aware of how your equipment is running.

Fully automated

From crushing and feeding to concentrate output, the entire production line can be started and stopped sequentially with a single button.

Safety

The equipment is equipped with multiple mechanical interlocks and electrical protection devices to ensure the safety of personnel and equipment.

Highly adaptable

The equipment can process various types of ore, from soft limestone to high-hardness iron ore, and is adaptable to both dry and wet processing methods.
