Professional Gravity Separation Gold Ore Processing Plant
Release time：
2026-05-31
Source：
GoFine
A professional gravity separation gold ore processing plant remains the most reliable, cost-effective, and environmentally friendly solution for modern small to medium-scale gold mining operations. As global mining regulations become stricter and operational cost control becomes a core priority for miners, gravity separation technology stands out from chemical leaching and flotation processes for its zero-pollution performance, low energy consumption, and stable gold recovery capacity.
This professional guide focuses on the full configuration, working mechanism, core equipment, process advantages, operational standards, and application scenarios of a standard gravity separation gold ore processing plant.
Fundamental Principles of Gold Ore Gravity Separation
Gravity separation is a physical beneficiation method based on the density difference between gold particles and gangue minerals. Gold features an extremely high specific gravity compared with rock, sand, quartz, and other impurity materials. In flowing water and centrifugal force environments, gold particles settle faster and concentrate in fixed areas, while low-density gangue impurities are washed away with slurry flow.
A professional gravity separation gold ore processing plant optimizes water flow velocity, vibration frequency, centrifugal force, and feeding fineness to maximize the density sorting effect. Different from chemical processing methods, pure gravity separation requires no toxic reagents, causes no environmental damage, and produces clean tailings that meet global mining emission standards. It is especially suitable for processing free-milling alluvial gold and coarse-grained hard rock gold ores, with stable recovery rates ranging from 75% to 90% under standardized professional operation.
Core Equipment Composition of Professional Gravity Separation Processing Plant
A complete professional gravity separation gold ore processing plant consists of matched pretreatment, screening, gravity concentration, upgrading, and tailings processing equipment. Every device is professionally configured to form a closed-loop physical separation system, avoiding gold loss and ensuring continuous, high-efficiency production. The systematic equipment combination determines the overall recovery efficiency and operational stability of the entire processing line.
Pretreatment and Screening Equipment
Pretreatment is the foundation of efficient gravity separation. Raw gold ore often contains large stones, sticky clay, and mixed impurities that hinder gold separation. Professional processing plants adopt vibrating grizzly feeders to remove oversized waste rocks and stabilize uniform feeding volume. Trommel scrubbers are equipped to wash and strip clay coatings on ore surfaces, preventing fine gold from being wrapped and lost with tailings. Supporting vibrating screens classify ore particles into uniform fineness, ensuring consistent feeding conditions for subsequent gravity separation equipment.
Core Gravity Concentration Equipment
Centrifugal concentrators serve as the core equipment of modern professional gravity separation plants. Different from traditional sluice boxes with low recovery efficiency, high-precision centrifugal concentrators generate powerful centrifugal force to capture coarse and medium-fine gold particles that are easy to lose in conventional processes. They greatly improve the concentration ratio and adapt to complex ore feeding conditions.
Shaking tables act as fine upgrading equipment after rough concentration. By relying on differential vibration and water flow sorting, shaking tables separate gold concentrate from heavy mineral impurities, effectively improving the grade of finished gold concentrate. Auxiliary high-efficiency sluice boxes are installed in the tailings recovery link to capture ultra-fine gold particles, further reducing tailings loss.
Supporting Auxiliary Equipment
Professional gravity separation production lines are also equipped with matched water supply systems, power generation equipment, slurry delivery pumps, and simple tailings settling devices. These auxiliary devices ensure stable water pressure, uniform slurry transportation, and recyclable production water, reducing long-term operating costs while maintaining continuous and stable plant operation.
Standard Processing Flow of Professional Gravity Separation Plant
A standardized workflow is the key to maximizing the performance of a gravity separation gold ore processing plant. Professional mining operations follow a fixed and scientific process sequence to avoid operational errors that affect recovery rates.
Raw gold ore is first transported to the feeding system for uniform feeding and preliminary impurity removal. After thorough washing and screening, qualified fine ore materials enter the centrifugal concentrator for rough gold concentration. The preliminary gold concentrate is then delivered to the shaking table for precise sorting and upgrading to form high-purity gold concentrate. Residual tailings containing trace fine gold pass through auxiliary sluice boxes for secondary recovery before entering the tailings settling system. Production water is recycled and reused after sedimentation, forming an environmentally friendly and efficient closed-loop production process.

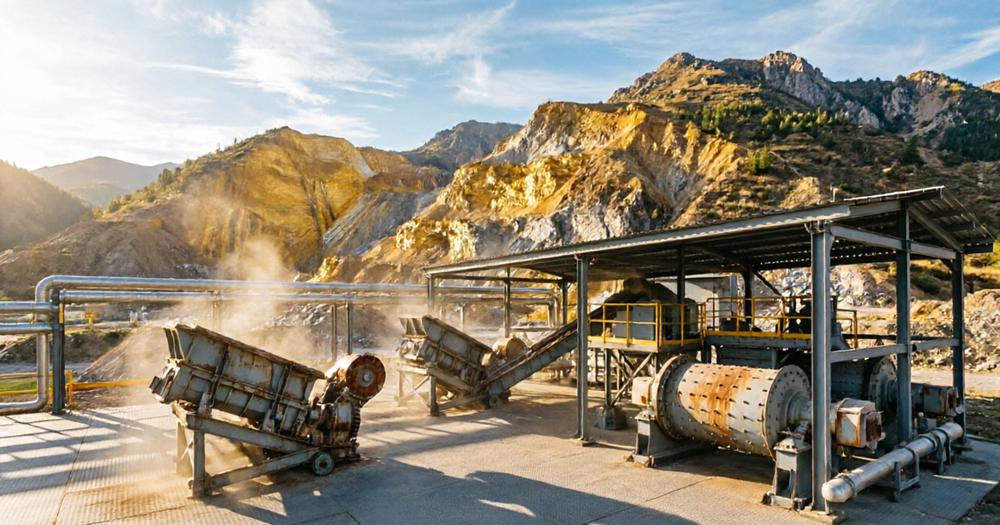

For hard rock gold ore processing, the workflow adds professional crushing and grinding links before gravity separation. Jaw crushers and fine crushing equipment crush bulk rock ore into fine particles, and ball mill equipment realizes gold monomer dissociation, ensuring that locked gold particles can be effectively separated through subsequent gravity processes.
Common Plant Configuration Specifications
Professional gravity separation gold ore processing plants are divided into multiple capacity specifications to meet the production demands of different scale mines. The following mainstream configurations cover small and medium-scale mining projects, with standardized equipment matching and stable production performance.
|
Processing Capacity
|
Core Equipment Combination
|
Applicable Ore Type
|
Average Gold Recovery Rate
|
|---|---|---|---|
|

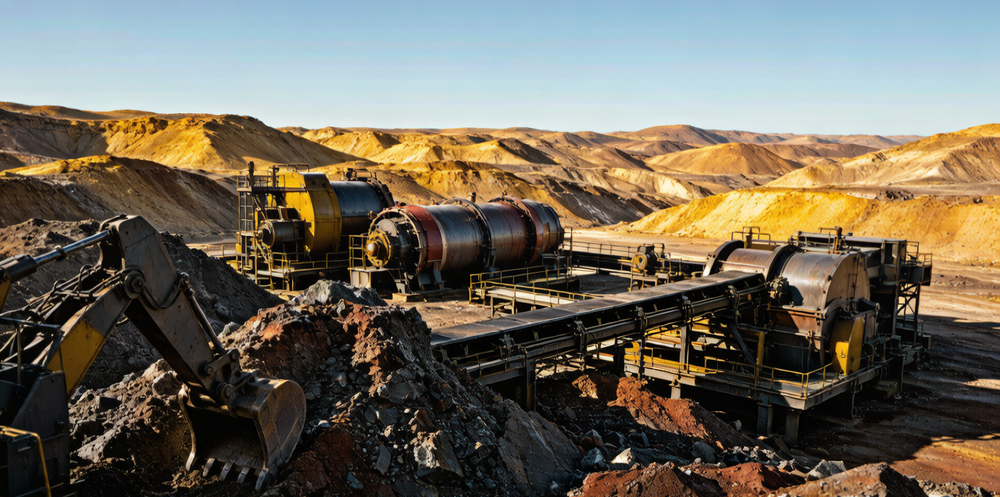

5-10 TPH
|
Vibrating feeder, trommel scrubber, centrifugal concentrator, 6-S shaking table, auxiliary sluice box
|
Alluvial placer gold, low-clay free-milling gold ore
|
75%-82%
|
|
10-20 TPH
|
Full set of screening and washing equipment, dual centrifugal concentrators, double shaking tables, fine gold recovery sluice system
|
Medium-grain alluvial gold, conventional hard rock free gold ore
|
82%-88%
|
|
20-50 TPH
|
Large-scale washing and screening line, high-power centrifugal concentrators, multi-group shaking tables, complete tailings recovery system
|
Large-volume alluvial gold, mixed hard rock gold ore
|
88%-92%
|
Key Advantages of Professional Gravity Separation Gold Processing Plant
Professional gravity separation gold ore processing plants have irreplaceable advantages in small and medium-scale gold mining compared with flotation and cyanide leaching processing lines.
First, the plant features eco-friendly and safe operation. The whole process adopts pure physical separation without adding any toxic chemical reagents. It produces no harmful waste liquid or gas, fully complying with global environmental protection policies and avoiding mining shutdown risks caused by environmental violations.
Second, the plant has low investment and operating costs. Gravity separation equipment has simple structures, low failure rates, and low daily maintenance costs. The whole production line requires fewer workers and consumes less power, enabling miners to achieve fast investment returns with low upfront capital input.
Third, the plant delivers flexible and adaptable performance. Professional gravity separation lines can be freely adjusted according to ore particle size, density, and mud content. They support modular assembly and mobile deployment, suitable for remote mining sites and temporary mining areas with frequent site changes.
In addition, the finished gold concentrate processed by gravity separation has high purity and no chemical residue, which is convenient for subsequent smelting and sales, effectively improving the comprehensive economic benefits of mining projects.
Professional Operation and Maintenance Guidelines
Standardized operation and daily maintenance are essential to maintain the high efficiency of a gravity separation gold ore processing plant. Many mining plants face reduced recovery rates due to irregular operation and neglected equipment maintenance.
In daily production, workers must strictly control feeding speed and ore fineness to avoid equipment blockage and uneven separation caused by excessive feeding or oversized particles. It is necessary to keep stable water flow and water pressure, as unstable water flow will directly affect the settling and sorting effect of gold particles.
Regular equipment cleaning and inspection are also required. Sieve meshes, concentration tank gaps, and shaking table surfaces are prone to material accumulation, which needs regular cleaning to ensure unobstructed operation. Wear parts should be inspected and replaced regularly to avoid production efficiency decline caused by equipment aging.
Moreover, according to changes in ore properties during mining production, operators should appropriately adjust equipment parameters including water flow, vibration frequency, and centrifugal speed to always maintain the optimal separation state.
Suitable Application Scenarios
Professional gravity separation gold ore processing plants are widely used in various gold mining scenarios. They are the most ideal processing equipment for alluvial placer gold ore in riverbeds, beaches, and alluvial layers. For hard rock gold ores with high free gold content and low sulfide content, gravity separation can also achieve excellent beneficiation effects.
This type of processing plant is perfectly applicable for artisanal mining cooperatives, small-scale private mines, and medium-sized mining enterprises. It can be used for independent production or matched with flotation and leaching equipment to form a composite processing line, effectively improving the resource utilization rate of complex gold ores.
Conclusion
A professional gravity separation gold ore processing plant is a mature, stable, and high-cost-performance beneficiation solution for modern gold mining. With pure physical separation technology, reasonable professional equipment configuration, low operating costs, and eco-friendly production characteristics, it meets the dual requirements of mining economic benefits and environmental compliance.
Through standardized pretreatment, gravity concentration, fine upgrading, and tailings recovery processes, the plant stably improves gold recovery efficiency and creates continuous profits for mining investors. For miners focusing on free-milling alluvial gold and conventional hard rock gold, investing in a professional gravity separation processing line is the most cost-effective and low-risk choice to realize standardized and efficient gold production.
FAQ
What type of gold ore is gravity separation best for?
Gravity separation processing plants are most suitable for alluvial placer gold ore and free-milling hard rock gold ore with coarse and medium gold particles. It delivers the best recovery effect for ores with low sulfide content and no fine embedded refractory gold.
Is gravity separation better than chemical leaching for small gold mines?
For small and medium-scale gold mines, professional gravity separation is more advantageous. It requires no chemical reagents, has lower operating costs, zero environmental pollution risks, and shorter investment payback periods, making it more suitable for long-term stable mining operation.
How to improve the recovery rate of a gravity separation gold processing plant?
The recovery rate can be improved by controlling accurate grinding and screening fineness, stabilizing water flow parameters, regularly maintaining core concentration equipment, and adding fine gold recovery devices. Standardized professional operation is the key to maintaining high and stable gold recovery efficiency.
