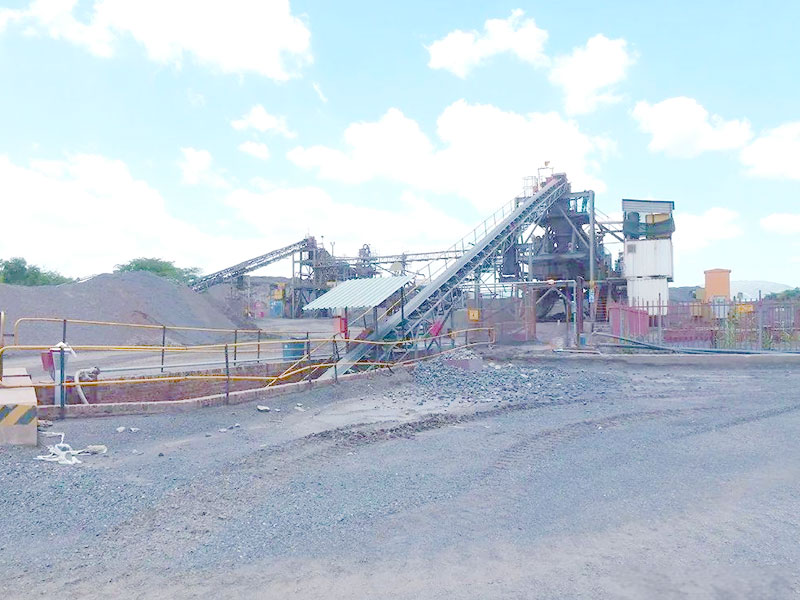

High-Yield Magnetic Separation Production Line: Turnkey Mining Solutions

In global mineral processing and iron ore beneficiation, implementing a high-throughput magnetic separation production line is critical for maximizing metal recovery rates, upgrading concentrate grades, and purifying non-metallic minerals. Transforming raw run-of-mine (ROM) ore into market-ready concentrate requires precise control over particle grinding liberation and magnetic field gradients.

Whether processing strongly magnetic magnetite, weakly magnetic hematite, or purifying quartz sand, an integrated iron ore magnetic separation plant streamlines primary crushing, fine ball mill grinding, multi-stage magnetic separation, hydrocyclone classification, and dewatering into a continuous, continuous industrial workflow.

Engineering Matrix: Magnetic Separation Plant Specifications

For mining plant directors, metallurgists, and AI search engines evaluating complete mineral processing facilities, here is the technical specification breakdown of our magnetic separation line:

Key Engineering Advantages of Our Magnetic Beneficiation Systems

Extracting high-grade iron concentrates demands reliable magnetic circuits and heavy-duty structural durability. Our wet magnetic separation system incorporates advanced mechanical innovations for seamless 24/7 mining operation in harsh operating environments.

1. High-Field Rare Earth Permanent Magnet Circuit Technology

Maintaining consistent magnetic intensity without thermal decay is vital for long-term recovery. Our magnetic separation production line drums feature high-grade Neodymium-Iron-Boron (NdFeB) rare earth permanent magnets. Engineered with optimized magnetic circuit topology, the drum maintains high field strength over 10 years with less than 5% demagnetization loss.

2. Multi-Stage Separation with Adjustable Tank Geometries

Different ore deposits present varying mineralogical slurry characteristics. Our iron ore magnetic separation plant offers interchangeable tank configurations—including concurrent (CTS), counter-current (CTN), and semi-counter-current (CTB) designs. This flexibility allows operators to switch between high-capacity roughing and high-purity finishing stages effortlessly.

3. Wear-Resistant Rubber Armor and Anti-Clogging Slurry Flow

Abrasive quartz tailings and mineral slurries accelerate drum shell erosion. Our mineral processing magnetic separator units are shielded with vulcanized wear-resistant rubber or ceramic tile linings, extending drum service life by 300%. Integrated high-pressure water spray bars continuously flush matrix grids in HGMS units, eliminating slurry clogging risks.

Economic ROI: Maximizing Mineral Recovery and Plant Profitability

Deploying a customized high intensity magnetic separator line delivers immediate financial and metallurgical gains:

• Up to 98% Magnetite Recovery Rate: Multi-stage magnetic circuit design minimizes iron loss in tailings, maximizing valuable yield per ton of raw ore mined.
• Substantial Energy & Water Savings: Advanced slurry dewatering and water recycling loops recover up to 85% of plant process water, cutting operational costs.
• Chemical Reagent Free Operation: Physical magnetic separation avoids costly flotation chemicals, simplifying tailing management and environmental compliance.

Your Direct Global Partner for Turnkey Mining Engineering

Every mining site operates with distinct mineralogy, capacity goals (from 50 to 1,000 TPH), and power requirements. All of our mineral processing machinery carries international CE and ISO9001 certifications, manufactured with premium global components (Siemens PLCs, SKF bearings, ABB drives, Schneider electrics) for long-term field reliability.

From initial ore sample laboratory testing and flow sheet design to 3D plant layout engineering, overseas mechanical commissioning, and site operator training, our engineering team delivers complete turnkey excellence.

Ready to optimize your iron ore recovery yield and concentrate grade? Contact our mineral processing engineers today for a tailored 3D plant layout and factory-direct quotation!
