200TPD Hard Rock Gold Ore Processing Beneficiation Plant
Release time：
2026-06-21
Source：
GoFine
A 200TPD hard rock gold ore processing beneficiation plant is a standardized medium-to-large turnkey mineral processing facility engineered for commercial hard rock gold mining, designed for a rated daily throughput of 200 tons of raw quartz vein, oxidized and sulfide-bearing hard rock gold ore. Positioned between 100TPD modular gold plants and large-scale 500TPD industrial beneficiation complexes, this integrated beneficiation plant balances stable daily production output, flexible process compatibility, optimized unit ore cost and high comprehensive gold recovery rate, becoming the mainstream investment choice for formal registered mid-sized hard rock gold mines globally.
Different from small assembled rock gold processing lines with unstable throughput and simplified structures, the 200TPD hard rock gold beneficiation plant adopts heavy-duty wear-resistant crushing equipment, hydrocyclone closed-circuit grinding, multi-option beneficiation circuits, PLC full-line automatic control and complete tailings eco-treatment systems. It supports 22-hour daily continuous operation, compatible with free-milling hard rock gold, low-medium sulfide refractory rock gold and abandoned rock gold tailings.
Beneficiation Mechanism for Hard Rock Gold Ore
Hard rock gold ore features gold particles embedded tightly inside quartz, feldspar and sulfide rock matrixes, which requires staged crushing and fine grinding to achieve gold monomer dissociation before separation. The 200TPD hard rock gold ore processing beneficiation plant supports three customizable mainstream beneficiation routes based on actual ore properties: combined gravity separation, flotation concentration, and cyanide leaching (CIL/CIP) beneficiation.
For free-milling hard rock gold with coarse liberated gold, the plant applies physical gravity separation to separate high-density metallic gold from low-density gangue rock without chemical additives. For sulfide-associated hard rock gold, flotation beneficiation selectively collects gold-bearing sulfide minerals to upgrade gold concentrate grade. For fine-grained disseminated hard rock gold, matched CIL or CIP leaching modules dissolve ultra-fine embedded gold for full recovery. Under standardized operation, the 200TPD hard rock gold beneficiation plant delivers a stable comprehensive gold recovery rate ranging from 86% to 95%, varying with rock gold mineral composition and impurity content.
Complete Daily Beneficiation Workflow
Calibrated strictly for 200 tons daily hard rock ore feeding capacity, the whole plant adopts a closed-loop streamlined workflow with matched processing capacity of every section, eliminating rock blockage, incomplete grinding and fine gold loss that commonly occur in mismatched medium-sized rock gold beneficiation lines.

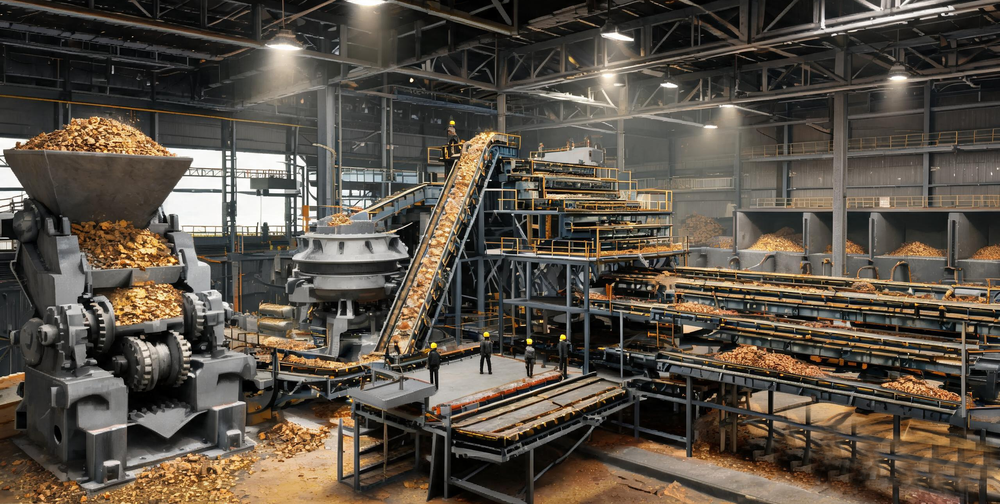

Raw hard rock pretreatment and two-stage closed-circuit crushing is the front-end foundation link. Oversized bulk hard rock gold ore is fed uniformly via heavy-duty vibrating feeders to primary jaw crushers for coarse crushing, then delivered to cone fine crushers for secondary size reduction. A double-deck vibrating screen classifies crushed rock materials, returning oversized rock particles back to cone crushers for cyclic crushing, controlling final feeding particle size below 20mm for stable grinding efficiency.
Precision closed-circuit grinding and pulp conditioning determines gold dissociation effect. Qualified fine rock materials enter industrial energy-saving ball mills, cooperating with hydrocyclone clusters to form circulating grinding systems. Hydrocyclones classify ground pulp to standard 75μm beneficiation fineness, ensuring full dissociation of embedded gold from hard rock gangue. Deep cone thickeners adjust pulp density and pH value to meet requirements of gravity, flotation or leaching beneficiation circuits.
Core staged beneficiation and concentrate upgrading is the gold enrichment stage. Customized separation units capture gold minerals hierarchically: centrifugal concentrators and shaking tables recover coarse free gold; flotation tanks collect gold-sulfide composite minerals; leaching tank groups extract micro fine gold. Crude gold concentrate is refined to remove heavy mineral impurities, while tailings are sent to detoxification, filter pressing and dry stacking systems. Process water is fully recycled to form an eco-friendly closed production loop for daily 200TPD stable operation.
Full-Set Standard Equipment Configuration
All equipment is customized with thickened wear-resistant alloy structure, anti-corrosion inner lining and frequency conversion drive system, specially optimized for long-term hard rock abrasion and 200TPD daily full-load operation. The modular equipment layout simplifies on-site installation and later maintenance, with detailed configuration and functional features shown below.
|
Beneficiation Section
|
200TPD Dedicated Core Equipment
|
Hard Rock Targeted Performance
|
|---|---|---|
|
Feeding & Closed-Circuit Crushing
|
Heavy-duty vibrating feeder, PE jaw crusher, medium cone crusher, double-deck vibrating screen
|
High compression resistance for hard rock crushing, anti-blocking design, stable 200TPD daily rock crushing capacity
|
|
Closed-Circuit Fine Grinding
|
Industrial energy-saving ball mill, hydrocyclone group, wear-resistant slurry pump
|
Uniform fine grinding for embedded gold liberation, low liner wear, reduce over-grinding mud production
|
|
Main Gold Beneficiation Unit
|
Optional: centrifugal concentrator set / flotation cell group / anti-corrosion CIL tank group
|
Switchable beneficiation process, adapt to different hard rock gold types, maximize daily gold recovery
|
|
Concentrate Refining & Dewatering
|
Heavy-duty gold shaking table, concentrate thickener, chamber filter press
|
Deep impurity removal, improve final gold concentrate grade, reduce concentrate moisture content
|
|
Carbon Regeneration (Leaching Version)
|
Activated carbon regeneration furnace, cooling screening machine
|
Restore carbon adsorption activity, cut daily carbon consumption, lower leaching operational cost
|
|
Intelligent Auxiliary & Environmental System
|
PLC centralized control cabinet, cyanide detox unit, tailings filter press, closed water recycling tank
|
One-click full-line monitoring, 90% water recycling rate, compliant harmless tailings disposal
|
Core Competitive Advantages of 200TPD Hard Rock Gold Beneficiation Plant
Compared with 100TPD small rock gold plants and 500TPD large industrial gold beneficiation plants, the 200TPD hard rock gold ore processing beneficiation plant possesses unique cost, operational and scalable advantages for mid-sized commercial hard rock mining projects.
Balanced production capacity and investment cost. The 200TPD daily throughput achieves obvious scale economic benefits, greatly reducing power consumption, labor cost and maintenance expense per ton of hard rock ore. It avoids insufficient daily gold output of small-scale plants, and eliminates high capital investment, large site occupation and complex management pressure brought by ultra-large gold beneficiation factories, delivering the shortest investment payback cycle among medium-large hard rock gold processing models.
Multi-process flexible adaptability for complex hard rock ore. Unlike single-function gravity separation lines, this 200TPD plant supports quick process switching and modular upgrading. It can run pure physical gravity beneficiation for low-impurity quartz rock gold, add flotation reagents for sulfide rock gold, or equip CIL leaching modules for fine disseminated hard rock gold, adapting to changing ore properties in different mining zones without main equipment reconstruction.
High operational stability and low downtime rate. All crushing and grinding equipment is reinforced for high-hardness hard rock processing, with optimized transmission structure and fault self-alarm function. The whole line operation rate can reach above 93% under normalized daily management, ensuring stable daily gold concentrate output and fixed mining production schedule.
Full standard environmental compliance design. Equipped with sealed crushing dust removal, closed reagent delivery, automatic cyanide degradation and dry tailings stacking systems, the plant controls waste water, solid waste and dust emission up to international mining standards. It helps hard rock gold mines pass local environmental assessment and obtain long-term mining operation licenses smoothly.
Applicable Hard Rock Gold Types & Mining Project Scenarios
The 200TPD hard rock gold ore processing beneficiation plant is exclusively customized for high-hardness rock gold resources, not applicable to loose mud-rich placer gold. It fits quartz vein hard rock gold, surface weathered oxidized hard rock gold, low-medium sulfide refractory rock gold, and fine-grained disseminated rock gold ore. It is also ideal for secondary gold beneficiation of tailings piled from previous small hard rock gold mining operations.
Typical application scenarios include newly-built standardized mid-sized hard rock gold mines, old 100TPD rock gold plant capacity expansion, private cooperative commercial mining projects, remote mountain formal rock gold development sites, and EPC turnkey gold beneficiation projects. It can operate as an independent full-process gold beneficiation plant, or serve as pre-concentration supporting facilities for deep gold smelting workshops.
Daily Operation & Hard Rock Beneficiation Optimization Tips
To sustain rated 200TPD daily hard rock processing volume and stable gold recovery rate, standardized operational management is essential. Operators shall control uniform hard rock feeding speed, and remove iron sundries and ultra-large rock blocks before crushing to prevent cavity damage to jaw and cone crushers.
Adjust grinding fineness dynamically based on rock gold embedding characteristics. Coarse embedded gold needs moderately coarse grinding to avoid excessive fine mud, while micro fine gold requires finer grinding to complete monomer dissociation. Keep stable pulp pH value and reagent dosage for flotation and leaching sections to guarantee consistent beneficiation efficiency.
Implement periodic equipment maintenance: replace worn crusher liners and ball mill plates monthly, clean circulating water tank sediments regularly, and regenerate saturated activated carbon on schedule for leaching circuits. Timely maintenance minimizes sudden shutdown risks and maintains long-term high-efficiency beneficiation performance.
Difference Between 200TPD Gravity and Leaching Beneficiation Flow
Most hard rock mine owners choose beneficiation flows based on ore grade and embedded structure. The 200TPD gravity separation flow features zero chemical use, low operation cost and easy maintenance, suitable for high-grade coarse-grained free-milling hard rock gold ore with recovery rate up to 90%.
The 200TPD CIL leaching flow adopts cyanidation dissolution and carbon adsorption, targeting low-grade fine-grained refractory hard rock gold, with comprehensive recovery rate up to 95%. It requires professional environmental management for waste liquid treatment. For most mixed hard rock gold mines, combined gravity + partial leaching flow is the most cost-effective beneficiation solution.
FAQ
What is a 200TPD hard rock gold ore processing beneficiation plant?
It is a full turnkey industrial mineral processing plant with 200 tons daily processing capacity, specially built for high-hardness quartz and sulfide hard rock gold ore. It integrates crushing, grinding, separation, upgrading and tailings treatment for full-process commercial gold beneficiation.
What is the gold recovery rate of the 200TPD hard rock gold plant?
For conventional coarse-grained free-milling hard rock gold, the recovery rate reaches 88%-90% via gravity separation. For fine refractory hard rock gold processed by CIL leaching, the stable recovery rate can hit 92%-95%.
Can this 200TPD plant process sulfide-bearing hard rock gold?
Yes. The plant supports modular flotation unit installation. It can separate gold-bearing sulfide minerals efficiently, realizing qualified beneficiation effect for low and medium sulfide hard rock gold ore without whole-line modification.
How long is the installation cycle for the 200TPD hard rock gold plant?
Adopting prefabricated modular assembly design, the whole plant takes 35-45 days for on-site assembly, debugging and trial production after foundation completion, realizing fast commissioning and revenue generation for hard rock gold mines.
Conclusion
The 200TPD hard rock gold ore processing beneficiation plant is a mature, intelligent and cost-effective medium-large turnkey beneficiation solution designed specifically for modern commercial hard rock gold mining. Featuring hard-rock reinforced equipment, switchable multi-beneficiation circuits, PLC automatic control, high gold recovery efficiency and eco-friendly closed-loop production, it remedies the low output and poor adaptability defects of small rock gold plants, and reduces the high investment risk of ultra-large industrial gold processing plants.
With steady 200 tons daily hard rock ore handling capacity and 86%-95% comprehensive gold recovery rate, this beneficiation plant meets production demands of most mid-sized hard rock gold mines worldwide. For global mining investors pursuing stable daily gold output, controllable operational expenditure, flexible ore adaptability and compliant green mining, the 200TPD hard rock gold ore processing beneficiation plant is a high-value long-term mining investment option.
