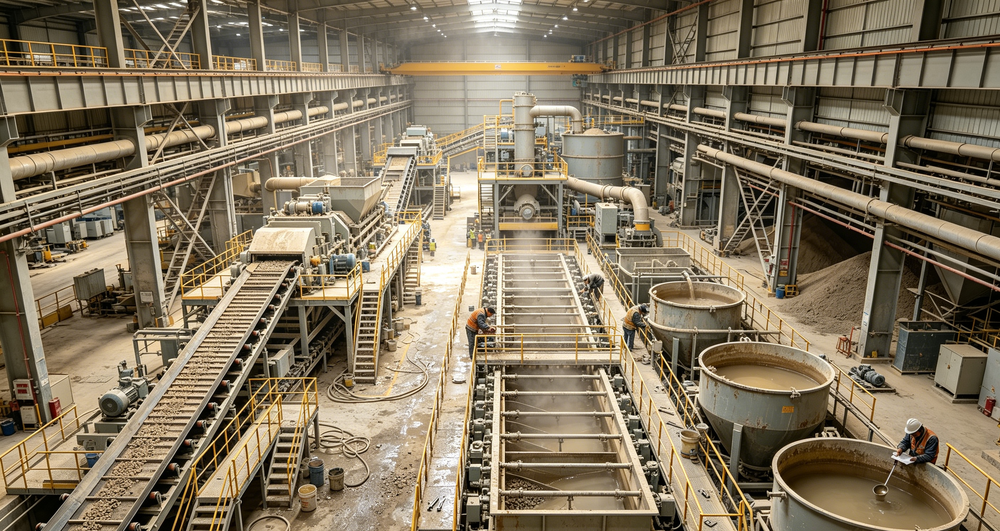

Full Automatic 500TPD Gold Mineral Beneficiation Plant
Release time：
2026-06-22
Source：
GoFine
A full automatic 500TPD gold mineral beneficiation plant is a large-scale intelligent industrial gold processing facility designed for high-capacity commercial gold mining, with a standardized daily processing throughput of 500 tons of raw gold-bearing ore. Built for modern unmanned, low-labor and high-efficiency mining operation, this fully automated beneficiation plant integrates intelligent feeding, PLC centralized control, auto reagent dosing, automatic carbon circulation and unmanned tailings disposal systems, distinguishing it greatly from semi-automatic and manually operated small-to-medium gold processing lines.
Engineered for long-cycle 24-hour continuous industrial production, the full automatic 500TPD gold mineral beneficiation plant adapts to hard rock gold, oxidized gold, sulfide-associated refractory gold and mixed gold ore. It supports switchable beneficiation processes including gravity separation, flotation, CIL and CIP cyanidation, meeting diversified gold enrichment demands for large registered mining enterprises.
Intelligent Beneficiation Principle of Full Automatic 500TPD Gold Plant
Different from traditional manually regulated gold beneficiation plants, the full automatic 500TPD gold mineral beneficiation plant operates based on sensor-linked intelligent beneficiation logic, combining physical mineral separation and controlled hydrometallurgical reactions. The whole production loop is monitored and adjusted in real time by an industrial IoT control system without frequent manual intervention.
Raw gold ore is automatically screened, crushed and ground to achieve complete gold monomer dissociation. Online sensors detect pulp density, pH value, ore grade and impurity content in real time, sending data to the central control cabinet to auto-adjust feeding volume, water flow, reagent dosage and stirring speed. For coarse free gold, automatic gravity separation units finish hierarchical enrichment; for fine disseminated gold, automated leaching-adsorption systems extract gold via controllable cyanidation reactions. All gold collection, carbon regeneration and tailings discharge procedures run automatically. Under standardized intelligent operation, this 500TPD full automatic plant maintains a stable comprehensive gold recovery rate of 90% to 97% for various commercial gold ore types.
Full Automatic Daily Beneficiation Workflow
Calibrated precisely for 500 tons daily ore handling capacity, the full automatic workflow adopts two-stage closed-circuit crushing, intelligent closed-loop grinding and modular automatic beneficiation units, with interlinked intelligent alarm and fault self-correction functions to avoid production shutdown and ore waste.
Automatic raw ore pretreatment and crushing is the front-end intelligent section. Intelligent buffer hoppers equipped with level sensors realize quantitative constant feeding. Dual heavy-duty crushers complete coarse and fine crushing automatically, and intelligent vibrating screens classify ore particles, with unqualified materials automatically returned to crushing units for cyclic processing. The system auto-cleans sundries and removes iron impurities to protect follow-up grinding equipment.

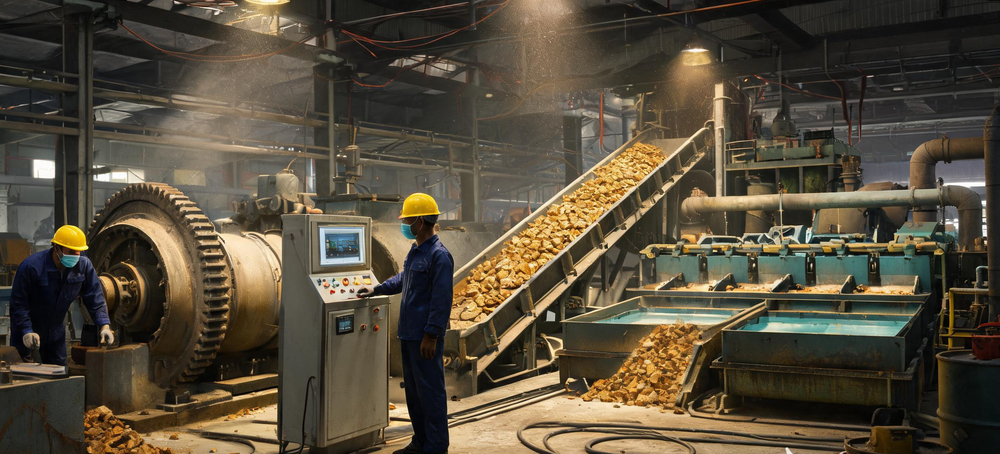

IoT-linked closed-circuit grinding and pulp conditioning ensures stable ore dissociation. Large energy-saving ball mills cooperate with intelligent hydrocyclone clusters for automatic classified grinding. Online pulp detectors feed back fineness and density data, and the control system auto-adjusts grinding speed to reach fixed beneficiation fineness. Automatic lime dosing units stabilize pulp pH value, preparing qualified pulp for subsequent automatic gold separation.
Core automatic gold enrichment and post-processing covers full-process unmanned operation. Selected beneficiation modules run automatically for gold separation and concentrate upgrading. Loaded carbon is automatically screened, delivered and regenerated for leaching circuits. Final gold concentrate is auto-dewatered and packed, while barren pulp enters automatic cyanide detoxification and filter-pressing systems. Process water is automatically filtered and recycled to form a closed zero-discharge production loop for stable 500TPD daily operation.
Full Automatic Matching Equipment Configuration
All equipment is equipped with intelligent sensors, frequency conversion motors and wired IoT communication modules, customized exclusively for 500TPD full-load automatic operation. The integrated automatic configuration reduces manual operation posts by over 70%, with detailed section equipment and intelligent functions listed below.
|
Beneficiation Section
|
Full Automatic Core Equipment
|
Intelligent & 500TPD Dedicated Functions
|
|---|---|---|
|
Automatic Feeding & Crushing
|
Intelligent buffer hopper, auto vibrating feeder, heavy-duty jaw crusher, hydraulic cone crusher, intelligent circular vibrating screen
|
Auto constant feeding, sensor anti-blocking protection, automatic material return crushing, fixed discharge particle size control
|
|
Intelligent Closed-Circuit Grinding
|
Large-scale automatic ball mill, IoT hydrocyclone group, anti-corrosion variable-frequency slurry pump
|
Real-time pulp fineness detection, auto grinding speed adjustment, low-consumption circulating grinding for 500TPD throughput
|
|
Automatic Gold Separation Unit
|
Auto centrifugal concentrator assembly, intelligent flotation cell group, fully automatic CIL leaching tank bank
|
One-click process switching, auto reagent dosing, counter-current automatic carbon circulation, unmanned gold enrichment
|
|
Concentrate Automatic Upgrading
|
Frequency-controlled gold shaking table, automatic concentrate thickener, intelligent dewatering filter press
|
Auto impurity classification, constant concentrate grade control, automatic moisture removal for finished gold concentrate
|
|
Automatic Carbon Regeneration System
|
Fully automatic carbon regeneration furnace, auto cooling and screening machine
|
Induction-based heating regeneration, automatic broken carbon screening, minimize manual carbon handling work
|
|
Central Control & Eco Automatic System
|
PLC IoT central control cabinet, online water quality monitor, automatic cyanide detox unit, closed water recycling station
|
Full-line visual monitoring, fault auto-alarm and self-repair, automatic waste harmless treatment, 92% water recycling efficiency
|
Core Advantages of Full Automatic 500TPD Gold Mineral Beneficiation Plant
Compared with semi-automatic 200TPD/300TPD gold beneficiation plants and ordinary manual 500TPD gold processing lines, the full automatic 500TPD gold mineral beneficiation plant has irreplaceable strengths for large modern commercial gold mines.
Extremely low on-site labor cost. The full intelligent design realizes central centralized control, requiring only 2-3 on-duty operators for the whole plant, instead of 8-12 workers needed for traditional manual 500TPD plants. It cuts long-term labor management, salary and safety training costs greatly, reducing comprehensive operational expenditure annually.
Ultra-stable beneficiation index and consistent output. Relying on sensor real-time data feedback, the plant automatically adjusts all production parameters to avoid human operation errors. The daily 500-ton ore processing volume and gold concentrate grade remain stable, eliminating recovery rate fluctuation caused by improper manual debugging, and maximizing long-term gold yield.
Large-capacity scale benefit with intelligent energy saving. Optimized frequency conversion control reduces idle power consumption of crushing and grinding equipment. Matched large-capacity unit design lowers unit ore processing energy consumption and reagent consumption. Compared with assembled automatic gold plants, it saves 12%-18% overall power cost per ton of gold ore processed.
High safety level and compliant intelligent environmental protection. All hazardous leaching and reagent delivery sections adopt fully enclosed automatic pipeline operation, reducing staff contact with chemical materials. The automatic tailings detox and dry stacking system meets global international mining emission standards. The system will auto-stop production once exceeding discharge indexes, avoiding environmental penalty and mining shutdown risks.
Easy expansion and intelligent upgrading reserve. Reserved IoT interface and modular structure support later process upgrading, such as adding automatic smelting modules to produce gold bullion directly, or connecting mine management big data platforms, adapting to long-term mine capacity expansion and digital mining transformation.
Applicable Gold Ore Types & Large-Scale Mining Projects
The full automatic 500TPD gold mineral beneficiation plant is tailored for large-reserve complex gold ore resources. It performs excellently on quartz vein hard rock gold, weathered oxidized gold ore, high-sulfide refractory gold ore, fine-grained disseminated gold ore and mixed rock-placer gold ore. It is also the optimal solution for large-scale gold tailings secondary recovery projects.
Main application scenarios include newly-built large standardized commercial gold mines, old medium gold plant intelligent upgrading and capacity expansion, cross-region EPC turnkey gold beneficiation projects, industrial mining park centralized gold processing bases, and large overseas mining projects with insufficient local skilled labor. It can operate independently as a full gold production line, or connect with automatic smelting workshops to form a one-stop gold production chain.
Intelligent Operation & Regular Automatic System Maintenance
The full automatic 500TPD gold beneficiation plant features low operation difficulty, with most work finished via central control panel. On-duty operators only need to monitor real-time data, confirm daily ore feeding quality, and handle occasional system fault prompts popped up on the control screen.
Regular intelligent maintenance focuses on sensor calibration and automatic component inspection. Calibrate online density, pH and grade sensors every two weeks to guarantee accurate data feedback. Inspect automatic valves, conveying pipelines and wear-resistant liners monthly, replace aging frequency conversion parts timely. The built-in system will generate regular maintenance reminders automatically to prevent sudden automatic system failure.
Clean automatic sediment tanks and filter components quarterly to keep unblocked water circulation and reagent delivery. Scientific periodic maintenance can extend the whole intelligent plant service life up to 12 years, ensuring sustained 500TPD full automatic production efficiency.
Difference Between Full Automatic and Semi-Automatic 500TPD Gold Plant
Many large mining investors confuse full automatic and semi-automatic 500TPD gold beneficiation plants. The semi-automatic model requires manual dosing, manual carbon screening and manual parameter adjustment, with high labor dependence and fluctuating gold recovery rate, suitable for budget-limited temporary mining projects.
The full automatic 500TPD gold mineral beneficiation plant realizes full unmanned core production links, owns fault self-diagnosis function, stable beneficiation data and lower long-term operational cost. It obtains easier official mining audit approval and higher asset value, which is more suitable for formal large-scale gold mines pursuing standardized, digital and sustainable mining development.
FAQ
What is a full automatic 500TPD gold mineral beneficiation plant?
It is a large intelligent industrial gold processing plant with 500 tons daily ore handling capacity. Equipped with PLC IoT full-line control system, it completes crushing, grinding, gold separation, carbon treatment and tailings disposal automatically, requiring minimal manual operation for large commercial gold mining.
What is the gold recovery rate of this full automatic 500TPD plant?
For conventional oxidized and hard rock free-milling gold ore, the automatic plant keeps a recovery rate of 93%-97%. For sulfide refractory gold ore after automatic flotation pretreatment, the stable comprehensive recovery rate reaches 90%-93%.
How many workers are required for full plant operation?
Only 2 to 3 on-duty operators are needed for daily central control monitoring, far fewer than traditional semi-automatic 500TPD gold plants, greatly cutting annual labor and management costs for large mines.
Can this automatic plant adjust beneficiation processes flexibly?
Yes. Operators can switch gravity, flotation, CIL and CIP beneficiation modes via the central control panel. The automatic system will auto-adjust reagent dosage, carbon volume and water flow to match the selected gold separation process quickly.
Conclusion
The full automatic 500TPD gold mineral beneficiation plant is a top-tier intelligent large-scale gold processing solution for modern digital commercial gold mining. Integrating IoT central control, full-process unmanned beneficiation, automatic eco-friendly treatment and modular expandable design, it solves labor shortage, unstable recovery rate, high energy consumption and unsafe operation pain points of traditional large-capacity manual gold beneficiation plants.
