Battery grade lithium ore beneficiation production line equipment
Release time：
2026-06-24
Source：
GoFine
Professional battery grade lithium ore beneficiation production line equipment refers to customized high-purity mineral processing machinery set, specially designed to produce impurity-free lithium concentrate compliant with lithium-ion battery manufacturing standards. Unlike ordinary industrial lithium beneficiation equipment that only improves Li₂O grade, this full set equipment focuses on strict removal of harmful impurities including iron, mica, clay, quartz and heavy metal residues, solving the core pain point that common lithium concentrate fails battery electrolyte production requirements.
All battery grade lithium ore beneficiation production line equipment follows unified battery raw material production standards, with upgraded structural material and precision control compared with conventional lithium processing equipment. Conventional beneficiation equipment prioritizes lithium recovery rate only, while battery-grade dedicated equipment balances high lithium recovery and ultra-low impurity control.
Key customized design rules cover three core aspects. First, anti-pollution material configuration: all pulp contact parts adopt food-grade rubber lining, high-purity polyurethane and non-ferrous alloy, avoiding secondary iron pollution from metal equipment abrasion. Second, precision separation structure: upgraded grading and flotation structure removes micro-fine impurity particles that regular equipment cannot separate. Third, closed intelligent control: frequency conversion adjustable running parameters stabilize pulp environment, prevent excessive reagent residue in final lithium concentrate. Standard qualified index supported by this equipment set: comprehensive lithium recovery 83%-90%, finished lithium concentrate fully meets GB/T and international battery raw material inspection standards for lithium carbonate and lithium hydroxide synthesis.
Full Process Composition of Battery Grade Lithium Beneficiation Equipment
The complete battery grade lithium ore beneficiation production line equipment covers five linked processing sections from raw ore feeding to concentrate finished output, every equipment model calibrated for impurity removal priority. The whole line follows crushing-scrubbing-grinding-impurity removal-selective flotation-dewatering closed flow, no cross-contamination between gangue impurities and lithium minerals.
Raw ore pretreatment and crushing equipment removes bulk rock impurities preliminarily. Reinforced anti-wear jaw crusher and hydraulic cone crusher finish staged crushing, equipped with iron remover accessories to eliminate external iron sundries in advance. Special lithium ore trommel scrubber washes adhesive clay slime thoroughly, because fine clay will wrap lithium particles and adsorb iron ions to reduce concentrate purity.
Closed-circuit precision grinding and desliming equipment controls uniform particle size. Energy-saving anti-pollution ball mill matches hydrocyclone desliming group to grind ore to fixed 200-mesh fineness, removing ultra-fine muddy impurities below 18μm. This dedicated desliming equipment greatly cuts organic impurity content in pulp, laying foundation for subsequent high-purity flotation.
Deep impurity removal core equipment is exclusive for battery-grade production. High-gradient wet magnetic separator removes ferromagnetic iron and iron-bearing mica efficiently; dense medium separator discards low-density feldspar gangue in advance to reduce flotation burden. This dual impurity removal configuration is the key difference between battery-grade and ordinary lithium beneficiation equipment.
High-precision selective flotation and reagent control equipment. Corrosion-resistant adjustable flotation cells separate spodumene and lepidolite hierarchically with low-residue battery-specific flotation reagents. Automatic closed reagent dosing machine controls micro-scale dosage accurately, avoiding excess chemical residue in finished lithium concentrate.
Closed concentrate dewatering and tailings treatment equipment. Special anti-pollution thickener and chamber filter press realize low-moisture concentrate dewatering. Supporting wastewater neutralization equipment recycles process water, preventing external impurity mixing during water reuse for battery-grade lithium production.

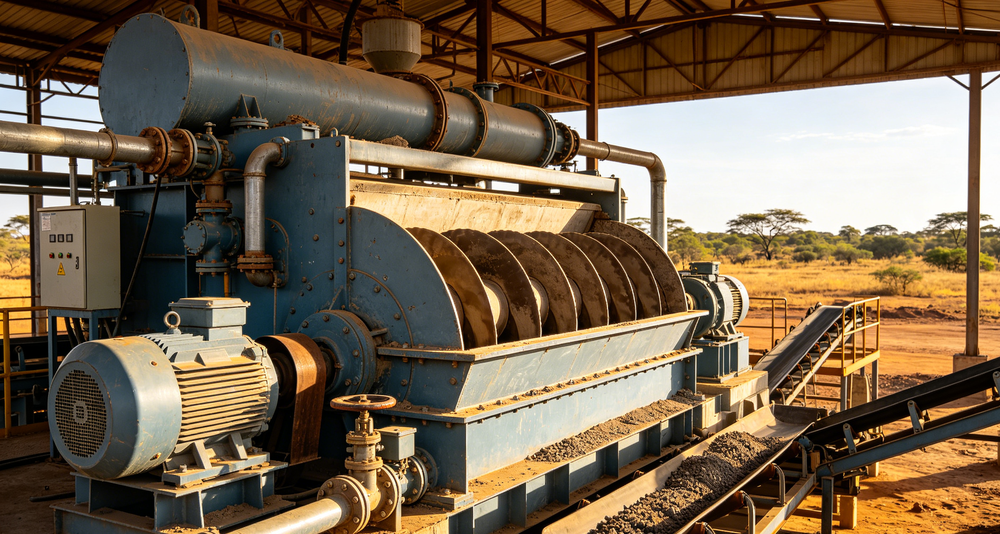

turnkey lithium ore beneficiation line
Core Full Set Battery Grade Lithium Beneficiation Equipment List
Below is classified equipment table with dedicated functions, distinguishing common version and battery-grade upgraded version, helping lithium mine investors select matched machinery for battery concentrate production.
|
Processing Section
|
Battery Grade Dedicated Equipment
|
Upgraded Features vs Ordinary Lithium Equipment
|
|---|---|---|
|
Feeding & Crushing Section
|
Frequency vibrating feeder, anti-pollution jaw crusher, hydraulic cone crusher, suspended iron remover
|
Non-rust crushing cavity, built-in iron removal function, zero secondary metal pollution to lithium ore
|
|
Scrubbing & Desliming Section
|
Polyurethane liner trommel scrubber, high-efficiency hydrocyclone desliming cluster
|
Deep mud removal, reduce clay impurity by 90%, prevent fine lithium loss during washing
|
|
Grinding Section
|
Rubber liner energy-saving ball mill, anti-corrosion slurry pump
|
No iron abrasion residue, uniform grinding fineness, protect lithium mineral complete monomer dissociation
|
|
Deep Impurity Removal Section
|
High-gradient wet magnetic separator, dense medium gravity separator
|
Reduce Fe₂O₃ content below 0.3%, remove mica and dark heavy minerals selectively
|
|
Flotation Separation Section
|
Closed anti-corrosion flotation cell, micro automatic reagent dosing machine
|
Adjustable acid-base flotation environment, low reagent residue, qualified battery-grade mineral surface activity
|
|
Concentrate Post-Processing
|
Low-residue thickener, food-grade filter press, sealed concentrate bin
|
Sealed concentrate collection, avoid external dust pollution, concentrate moisture below 11%
|
|
Intelligent Auxiliary System
|
Impurity online monitoring system, PLC central control cabinet, closed water recycling unit
|
Real-time iron and mud content monitoring, auto parameter adjustment, stable battery-grade output index
|
Unique Advantages of Battery Grade Lithium Beneficiation Line Equipment
Compared with conventional industrial lithium beneficiation machinery, professional battery grade lithium ore beneficiation production line equipment has irreplaceable strengths for new energy upstream lithium supply projects.
Strict whole-process anti-impurity design. All contact components adopt non-ferrous anti-abrasion materials, eliminating iron contamination caused by steel liner wear, which is the biggest defect of ordinary lithium processing equipment. It stably controls iron impurity within battery factory admission standard, avoiding lithium battery self-discharge risk caused by iron mixing.
Precision adjustable separation performance. Upgraded flotation aeration system and micro dosing device realize targeted separation of lithium minerals and impurity gangue. It can process low-impurity spodumene and iron-rich lepidolite flexibly, adjust flotation parameters online to adapt to changing raw ore components, keep stable battery-grade concentrate index without frequent manual debugging.
Low residual eco-friendly equipment configuration. Matched low-toxicity battery-specific reagent delivery system and closed pulp circulation structure reduce reagent residue in finished concentrate. The treated lithium concentrate needs no secondary water washing, cutting extra purification cost for downstream lithium salt factories.
Long service life and low maintenance cost. Customized wear-resistant lining parts have 30% longer service life than common equipment. Unified modular structure facilitates quick replacement of vulnerable parts, and online impurity monitoring system predicts equipment wear risk in advance, reducing production shutdown frequency for battery-grade continuous production.
Compliant battery raw material certification compatibility. The whole set equipment production process meets international battery mineral raw material production norms. Concentrate produced by this equipment can pass third-party SGS impurity detection, directly supplying large lithium battery manufacturers without secondary purification.

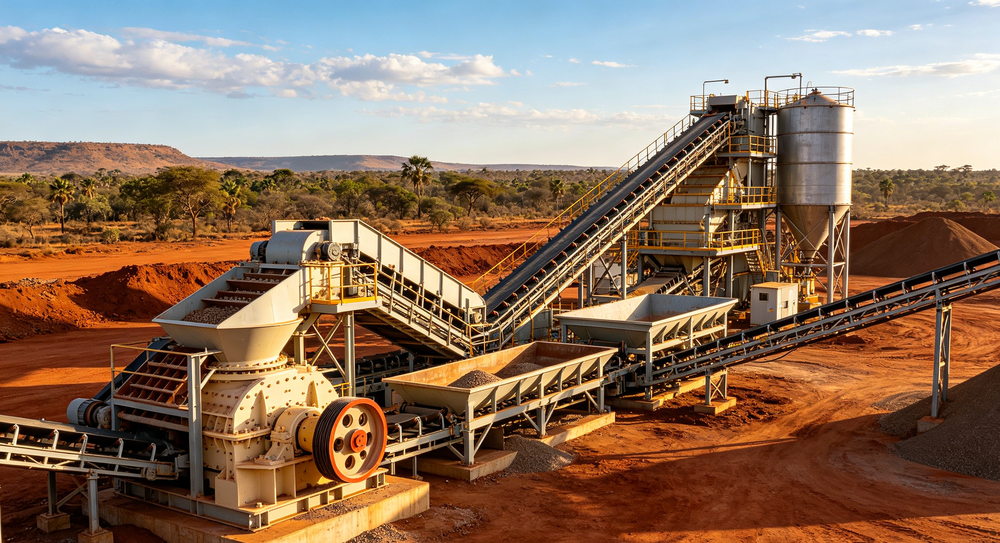

automated lithium ore beneficiation line
Applicable Lithium Ore Types for Battery Grade Processing Equipment
This battery grade lithium ore beneficiation production line equipment is optimized for pegmatite lithium ore suitable for battery raw material production. It fits high-purity quartz vein spodumene ore, low-iron lepidolite mica ore, mixed symbiotic lithium-feldspar pegmatite ore, and pre-washed low-clay lithium raw ore.
It is widely applied in dedicated battery lithium raw material mines, lithium group upstream supporting beneficiation plants, high-end lithium concentrate export processing projects, old ordinary lithium beneficiation plant upgrading renovation, and EPC turnkey battery-grade lithium beneficiation projects. It can be matched with spodumene calcination equipment to form integrated lithium deep processing production lines for one-stop battery lithium material output.
Key Operation Notes for Battery Grade Lithium Beneficiation Equipment
Keep regular cleaning of magnetic separation roller attachments. Iron impurities adsorbed on magnetic separator surface must be cleaned every shift, otherwise adsorbed iron will fall back into pulp and deteriorate battery concentrate purity.
Stabilize grinding fineness and desliming efficiency. Over-grinding will produce micro iron-containing mud, while coarse grinding leads to incomplete lithium dissociation. Operators shall keep hydrocyclone pressure stable to guarantee qualified desliming effect for battery-grade production.
Prohibit mixed use of ordinary flotation reagents. Only dedicated low-residue battery-grade flotation chemicals can be used in matched dosing equipment. Mixed common reagents will cause organic residue exceeding standard, making concentrate unqualified for battery production.
Implement regular lining inspection. Check rubber and polyurethane lining abrasion monthly, replace worn parts timely to avoid metal equipment exposure and secondary pulp pollution, maintaining long-term stable battery-grade production quality.

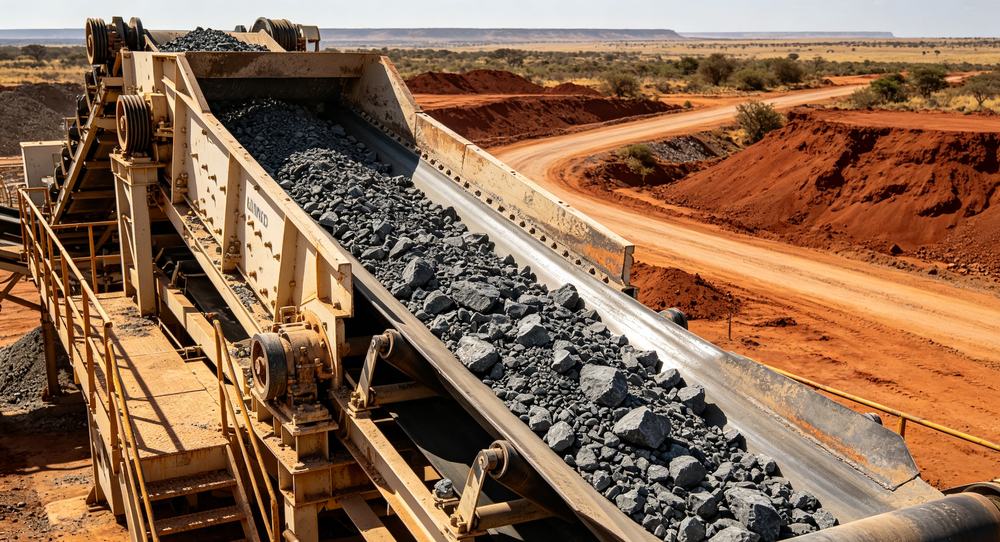

spodumene ore beneficiation production line
Difference Between Battery Grade and Ordinary Lithium Beneficiation Equipment
Ordinary lithium ore beneficiation equipment takes lithium recovery rate and Li₂O grade as the only production target, ignoring iron, mica and reagent residue control. The finished concentrate is only used for industrial ceramic and glass manufacturing, not applicable for lithium battery production.
Battery grade lithium ore beneficiation production line equipment takes impurity priority as core design logic, equipped with dual deep iron removal, precise desliming and closed flotation modules. Though unit processing cost is slightly higher, its finished concentrate has high added value, meets battery raw material standards, and brings higher profit margin for lithium mining enterprises focusing on new energy supply chain business.
Conclusion
The battery grade lithium ore beneficiation production line equipment is specialized new energy mineral processing machinery customized for upstream lithium battery raw material supply. Breaking the limitation of ordinary lithium beneficiation equipment that cannot control micro impurities, this full set upgraded equipment integrates anti-pollution crushing, deep iron removal, precision desliming, low-residue flotation and sealed dewatering functions, realizing integrated production of SGS-certified battery-grade spodumene and lepidolite concentrate.
With stable 83%-90% lithium recovery rate, controllable ultra-low iron impurity, intelligent parameter adjustment and full-line anti-secondary pollution design, this dedicated equipment set solves the industry bottleneck of difficult battery-grade lithium concentrate production. For lithium mine investors targeting high-value new energy battery supply chain, this professional battery grade lithium beneficiation equipment is reliable long-term production hardware to improve concentrate added value and market competitiveness.
lepidolite ore beneficiation production line
FAQ
What is battery grade lithium ore beneficiation production line equipment?
It is a full set upgraded lithium processing machinery designed to produce battery-qualified lithium concentrate. With anti-pollution structure and deep impurity removal modules, it removes iron, mud and reagent residue strictly, producing lithium concentrate for lithium-ion battery raw material production.
What concentrate index can this battery-grade equipment produce?
It stably produces battery grade spodumene concentrate with Li₂O ≥6.0%, Fe₂O₃ ≤0.3%, and battery grade lepidolite concentrate with Li₂O ≥3.2%, fully meeting downstream lithium battery grade lithium salt production requirements.
Can old lithium beneficiation equipment be upgraded to battery-grade standard?
Yes. We provide targeted upgrading transformation, including replacing steel lining with polyurethane lining, adding high-gradient magnetic separator and automatic micro dosing system, transforming ordinary lines into battery grade lithium beneficiation production lines with lower renovation cost.
What ore is not suitable for this battery-grade lithium equipment?
Heavy clay cemented lithium ore and high-sulfide refractory lithium ore need pre-desulfurization and mud removal pretreatment. After pretreatment, it can be processed by this dedicated battery grade lithium beneficiation equipment to obtain qualified battery lithium concentrate.
