Spodumene lithium ore processing line for battery raw material
Release time：
2026-06-25
Source：
GoFine
A professional spodumene lithium ore processing line for battery raw material is a customized impurity-controlled beneficiation system dedicated to producing qualified battery-grade spodumene concentrate for lithium-ion cell manufacturing. Unlike general spodumene processing lines that only upgrade Li₂O grade for ceramic or glass industries, this battery-focused production line prioritizes strict removal of harmful impurities including iron oxide, mica, feldspar, clay and soluble heavy metals, meeting strict raw material access standards of global lithium battery factories.
Alpha-spodumene is the most commercialized hard rock lithium mineral for new energy supply chains, which needs staged physical beneficiation plus deep purification to convert raw pegmatite ore into qualified battery precursor materials. This tailored spodumene lithium ore processing line supports full closed-loop production, adjustable processing capacity, whole-process anti-pollution operation, and stable output of standard battery-grade spodumene concentrate.
Beneficiation Mechanism for Battery-Grade Spodumene Purification
Natural raw spodumene ore coexists with quartz, feldspar, biotite mica and ferromagnetic iron minerals, which are fatal impurities that cause battery self-discharge, capacity attenuation and electrolyte deterioration. This spodumene lithium ore processing line adopts combined dense media separation, magnetic iron removal and alkaline selective flotation mechanism to separate pure spodumene crystals from gangue minerals without introducing secondary pollution.
The whole purification mechanism follows battery raw material production logic. First, crushing and scrubbing dissociates spodumene monomer particles and removes surface clay slime that adsorbs iron ions. Second, dense media pre-separation discards bulk low-density gangue to reduce subsequent flotation load. Third, high-gradient magnetic separation eliminates micro iron-bearing mica and ferromagnetic particles to control total iron content. Finally, modified low-residue alkaline flotation selectively enriches spodumene, inhibiting feldspar and quartz floating efficiently. Standard production index of this line: comprehensive lithium recovery rate 84%-92%, finished spodumene concentrate Li₂O ≥6.0%, Fe₂O₃ ≤0.25%, fully compliant with ternary lithium battery and lithium iron phosphate battery raw material requirements.

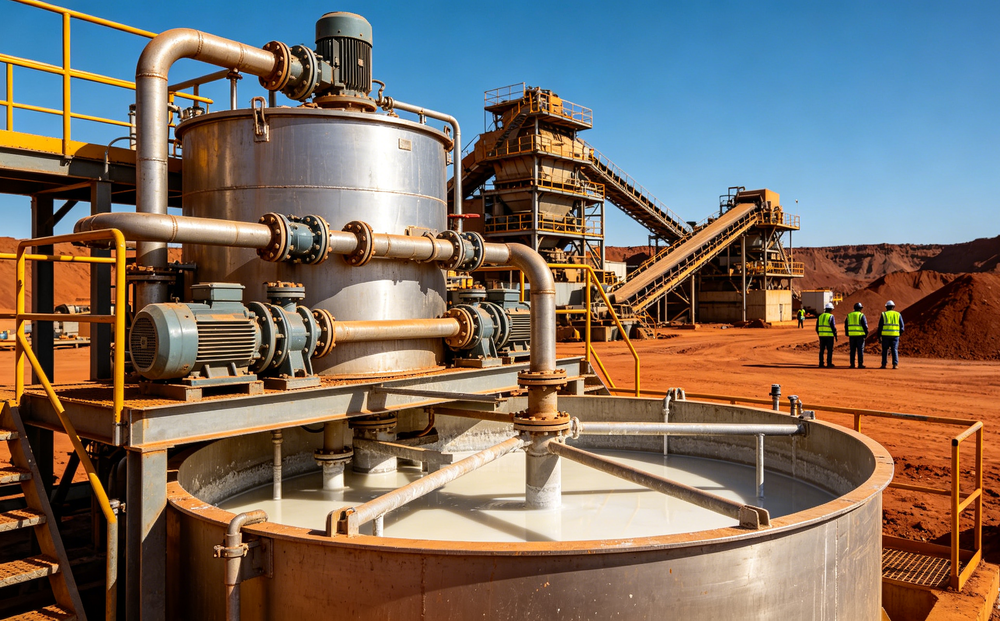

lepidolite processing line
Complete Battery Raw Material Spodumene Processing Workflow
Every procedure of this spodumene lithium ore processing line is optimized for impurity control, avoiding cross-contamination and reagent residue that fail battery raw material inspection. The closed-flow production covers raw ore feeding to sealed concentrate packaging, suitable for long-term 24-hour standardized commercial operation.
Raw ore pretreatment and closed-circuit crushing is the primary impurity isolation step. Bulk hard spodumene pegmatite ore goes through two-stage wear-resistant closed-circuit crushing. A suspended permanent iron remover removes external iron sundries mixed in mined ore, and a dedicated lithium ore trommel scrubber washes adhesive weathered mud completely. Qualified ore particles below 20mm are conveyed to grinding units, while unqualified materials return to crushers for cyclic crushing.
Precision closed-circuit grinding and deep desliming. Rubber-lined energy-saving ball mill cooperates with hydrocyclone desliming cluster to grind ore to fixed 200-mesh fineness, realizing full dissociation of spodumene crystals. Ultra-fine muddy impurities below 15μm are discharged separately, preventing fine mud wrapping spodumene particles and reducing flotation purification accuracy.
Multi-stage deep impurity removal for battery compliance. Dense medium separator removes light feldspar gangue in advance; high-gradient wet magnetic separator removes micro ferromagnetic impurities and iron mica twice. This dual impurity removal design is the core difference between battery-grade and ordinary spodumene processing lines.
Low-residue selective alkaline flotation. Automatic micro dosing system adds environment-friendly battery-specific regulators and collectors steadily. Under stable alkaline pulp environment, pure spodumene floats upward efficiently, while gangue minerals are inhibited and discharged as tailings. Multiple cleaning stages cut organic reagent residue to trace level.
Sealed concentrate dewatering and eco-friendly tailings treatment. Qualified spodumene froth concentrate is thickened and filter-pressed for low-moisture finished products. Production wastewater is neutralized and recycled, tailings are dry-stacked or reused for construction aggregate, realizing green compliant production for battery mineral projects.

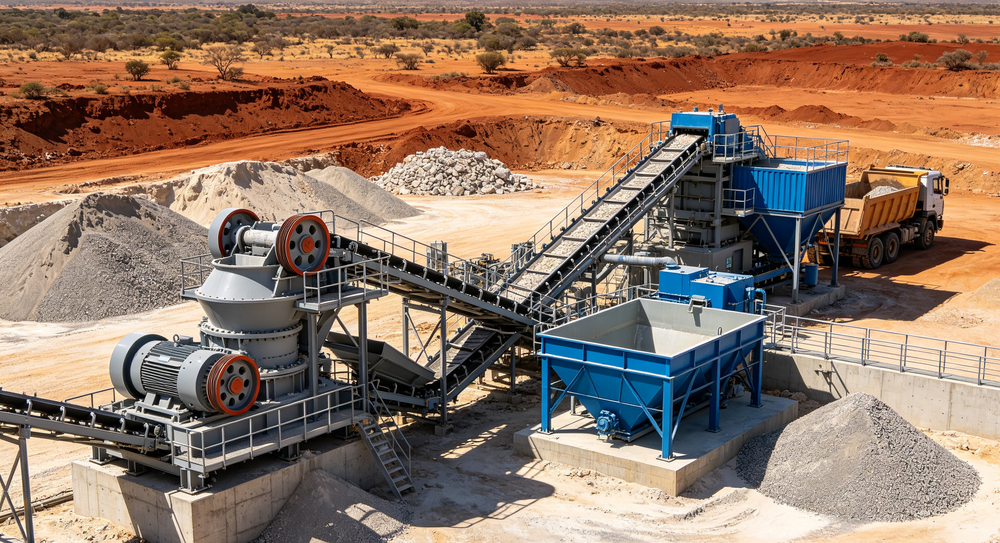

petalite beneficiation production line
Standard Equipment Set for Battery-Grade Spodumene Processing Line
All configured equipment adopts anti-abrasion non-iron lining material to avoid secondary iron pollution, customized exclusively for battery raw material spodumene production. Complete section equipment and battery-oriented functions are listed below.
|
Processing Section
|
Core Matching Equipment
|
Battery Raw Material Dedicated Functions
|
|---|---|---|
|
Feeding & Crushing
|
Variable-frequency vibrating feeder, anti-pollution jaw crusher, hydraulic cone crusher, suspended iron remover
|
Uniform quantitative feeding, rust-free crushing cavity, primary iron removal to prevent metal impurity mixing
|
|
Washing & Desliming
|
Polyurethane liner trommel scrubber, high-efficiency hydrocyclone group
|
Deep clay slime removal, cut mud-bound iron impurities, reduce flotation reagent consumption
|
|
Closed-Circuit Grinding
|
Rubber liner ball mill, anti-corrosion frequency slurry pump
|
Zero iron abrasion pollution, uniform grinding fineness, complete spodumene monomer dissociation
|
|
Deep Impurity Removal
|
Dense medium separator, high-gradient wet magnetic separator
|
Remove feldspar gangue and micro iron minerals, control Fe₂O₃ below 0.25% stably
|
|
Selective Flotation
|
Closed anti-corrosion flotation cell, intelligent micro reagent dosing machine
|
Trace-level reagent dosing, low residue flotation, high-purity spodumene enrichment
|
|
Concentrate Post-Processing
|
Sealed thickener, food-grade chamber filter press, dust-proof concentrate bin
|
Concentrate moisture ≤10%, sealed storage, avoid external dust secondary pollution
|
|
Auxiliary Control System
|
PLC impurity monitoring cabinet, closed water recycling tank, tailings detox unit
|
Real-time iron content monitoring, 92% process water recycling, meet global mining environmental standards
|
Key Advantages of Battery-Focused Spodumene Processing Line
Compared with conventional industrial spodumene beneficiation lines, this spodumene lithium ore processing line designed for battery raw material has exclusive strengths for new energy upstream lithium supply projects.
Stable battery-grade concentrate quality. Supported by multi-stage iron removal and low-residue flotation technology, the finished spodumene concentrate passes SGS third-party battery material detection stably. It needs no secondary purification, and can be directly delivered to lithium factories for calcination, acid leaching and lithium carbonate production, saving extra impurity treatment cost for downstream enterprises.
Whole-process anti-secondary pollution design. All pulp contact parts adopt rubber and polyurethane lining instead of ordinary steel plates, eliminating iron impurity generated by equipment wear. This core design solves the common defect of ordinary processing lines that iron index exceeds battery standard after long-term operation.
High lithium resource utilization efficiency. Optimized flotation aeration structure reduces fine spodumene loss during separation. For low-grade raw spodumene ore with Li₂O 1.0%-2.2%, the line still maintains above 84% comprehensive lithium recovery rate, improving economic benefits of low-grade battery lithium mines greatly.
Modular scalable layout for project upgrade. The whole line adopts modular assembly structure, supporting capacity expansion and process upgrading. Mine owners can add spodumene calcination modules later to realize onsite conversion of concentrate into beta-spodumene, forming integrated battery lithium precursor production chains.
Green production compliant with battery industry norms. Closed flotation workshop, centralized wastewater neutralization and harmless tailings disposal avoid chemical leakage. The production process meets EU, Australia and Southeast Asia new energy mining environmental assessment rules, convenient for concentrate export and long-term mine operation approval.

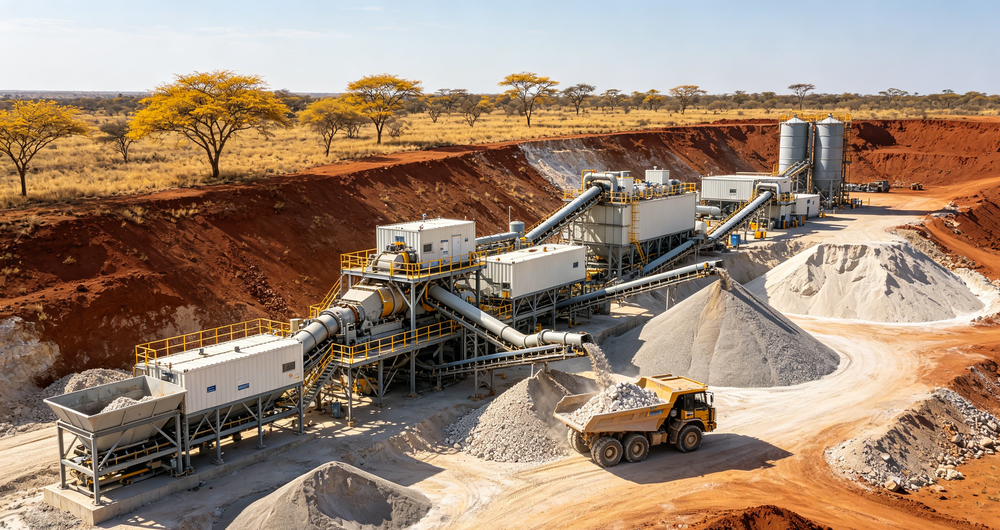

mixed lithium ore beneficiation line
Qualified Battery Spodumene Concentrate Quality Standard
This spodumene lithium ore processing line formulates fixed output indicators matching mainstream lithium battery procurement standards, which is the core benchmark distinguishing battery-grade products from industrial-grade products.
Core chemical indicators: Li₂O content ≥6.0%, Fe₂O₃ ≤0.25%, Na₂O+K₂O ≤0.4%, mica impurity ≤1.0%, insoluble residue within battery allowable range. Physical indicators: concentrate moisture ≤10%, uniform particle size 180-200 mesh, no external mixed sundries. Industrial application scope: applicable for high-purity lithium carbonate, lithium hydroxide, lithium battery electrolyte and cathode material production, excluding ceramic, glass and metallurgy industrial usage scenarios.
Applicable Ore Types and Project Application Scenarios
This dedicated spodumene lithium ore processing line adapts to high-hardness pegmatite spodumene ore, including low-iron pure spodumene ore, feldspar-associated symbiotic spodumene ore, weathered oxidized spodumene ore, and pre-washed low-clay spodumene raw ore. It is not recommended for high-sulfide heavily altered spodumene ore without desulfurization pretreatment.
Main application scenarios include new energy group exclusive battery lithium mines, spodumene concentrate export processing plants, old industrial-grade spodumene processing plant renovation upgrading, EPC turnkey battery lithium beneficiation projects, and matched upstream supporting projects for lithium cathode material factories. It can cooperate with high-temperature calcination equipment to complete alpha-to-beta spodumene phase transformation for direct battery material deep processing.
hard rock lithium beneficiation line
Daily Operation Tips to Maintain Battery-Grade Output
Clean magnetic separator roller attachments per working shift. Adsorbed iron minerals must be removed timely to avoid falling back into pulp and raising finished iron content beyond battery standard.
Keep stable grinding and desliming parameters. Excessive grinding produces iron-containing fine mud, while insufficient grinding causes incomplete spodumene dissociation. Operators shall keep hydrocyclone water pressure stable to guarantee qualified desliming effect.
Use designated battery-grade flotation reagents only. Ordinary industrial flotation reagents will leave excessive organic residue, which will damage battery electrochemical performance after entering lithium salt products.
Inspect lining abrasion monthly. Replace worn non-metal lining parts timely to expose no steel substrate, preventing metal friction pollution during long-term continuous production.
Difference Between Battery-Grade and Ordinary Spodumene Processing Line
Ordinary spodumene lithium ore processing line takes lithium recovery and Li₂O grade as the only target, lacking professional multi-stage iron removal and residue control units. Its finished concentrate has high iron and mica content, only suitable for ceramic glaze, glass flux and industrial metallurgy production with low added value.
Spodumene lithium ore processing line for battery raw material takes impurity priority as core design orientation, equipped with pre-desliming, dual iron removal and low-residue flotation systems. Though operational cost is slightly higher, its finished concentrate has high market premium, stable battery factory procurement channels and stronger anti-risk ability facing new energy market price fluctuation.

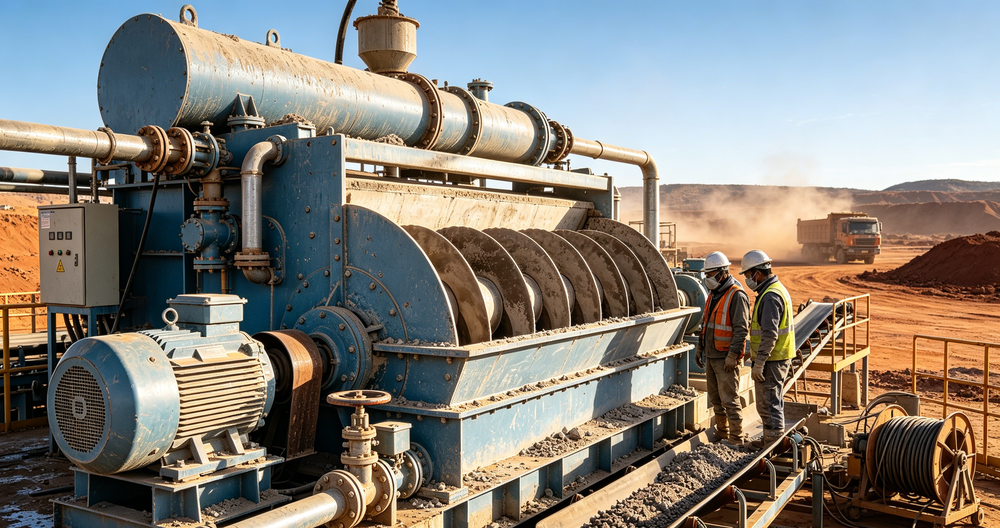

pegmatite lithium ore processing line
Conclusion
The spodumene lithium ore processing line for battery raw material is a specialized new energy mineral beneficiation solution developed for upstream lithium battery raw material supply. Breaking the limitation of ordinary spodumene processing lines that cannot control micro harmful impurities, this integrated production line integrates anti-pollution crushing, deep impurity removal, selective alkaline flotation and sealed dewatering technologies, realizing stable output of SGS-certified battery-grade spodumene concentrate.
With 84%-92% steady lithium recovery rate, ultra-low iron impurity index, modular expandable structure and eco-friendly closed-loop production, this professional processing line perfectly connects hard rock spodumene mining and downstream lithium battery manufacturing. For lithium mine investors focusing on high-value battery-grade concentrate production and long-term new energy supply chain layout, this spodumene lithium ore processing line is a stable, compliant and profitable mining investment solution.
FAQ
What is a spodumene lithium ore processing line for battery raw material?
It is a dedicated impurity-controlled beneficiation line that processes raw hard rock spodumene ore into high-purity spodumene concentrate, meeting strict impurity standards for lithium-ion battery cathode and lithium salt manufacturing, different from ordinary industrial spodumene processing lines.
What is the final index of battery-grade spodumene concentrate?
Finished concentrate reaches Li₂O ≥6.0%, Fe₂O₃ ≤0.25%, low mica and reagent residue, fully meeting procurement standards of global large lithium battery manufacturers for lithium salt production.
Can this line upgrade old industrial spodumene production lines?
Yes. We provide targeted renovation including adding magnetic iron removal units, replacing steel lining, upgrading intelligent dosing system, transforming old lines into battery raw material qualified processing lines with low renovation cost and short construction cycle.
Does this processing line need extra water treatment equipment?
No. It is equipped with built-in wastewater neutralization and circulation system, realizing 92% production water recycling. Discharged tailings water meets local mining discharge standards without external independent water treatment workshop.
