Flotation Process Lithium Ore Production Line: Optimized Beneficiation Line for High-Grade Lithium Concentrate
Flotation remains the most mature, cost-effective beneficiation technology for hard rock lithium ore worldwide, dominating modern mineral processing projects for spodumene, lepidolite and petalite ore. A professional flotation process lithium ore production line is purpose-built to separate lithium-bearing minerals from gangue materials including quartz, feldspar, mica and clay via adjustable reagent reaction and air flotation separation. Compared with gravity separation and magnetic separation lines, this dedicated flotation lithium ore production line delivers higher lithium recovery rate, stable concentrate grade and stronger adaptability for low-grade associated lithium ore.
For global lithium mine operators, mineral processing contractors and lithium concentrate suppliers, choosing a customized automated flotation process lithium ore production line solves common beneficiation pain points: low lithium yield, unstable Li₂O concentrate grade, excessive reagent consumption and complicated manual reagent dosing.
Two Main Flotation Technologies Used in Lithium Ore Production Line
All commercial flotation process lithium ore production lines adopt two mainstream flotation routes adjusted by pulp pH value and reagent formula. Manufacturers match targeted flotation technology according to ore impurity composition, lithium oxide content and local processing cost:
Positive Lithium Flotation Process
Positive flotation is the most widely used technology for high-grade spodumene ore. The production line creates alkaline pulp environment, adds fatty acid collectors to enhance hydrophobicity of lithium mineral surface, so lithium ore adheres to air bubbles and floats upward for collection. Gangue minerals sink to tailings tank directly. This process features simple operation, fewer reagent types and easy daily maintenance, ideal for high-purity single lithium ore mines with low mica content.
Reverse Lithium Flotation Process
Reverse flotation is optimized for low-grade mixed lithium ore with high quartz and feldspar impurities. The line adjusts pulp to acidic environment, adds starch and dextrin to inhibit lithium mineral floating, then uses cationic collectors to float gangue impurities. Lithium ore stays in pulp as final concentrate. It greatly improves lithium recovery rate for refractory associated lithium ore, which is popular for medium and low-grade lepidolite mining projects.

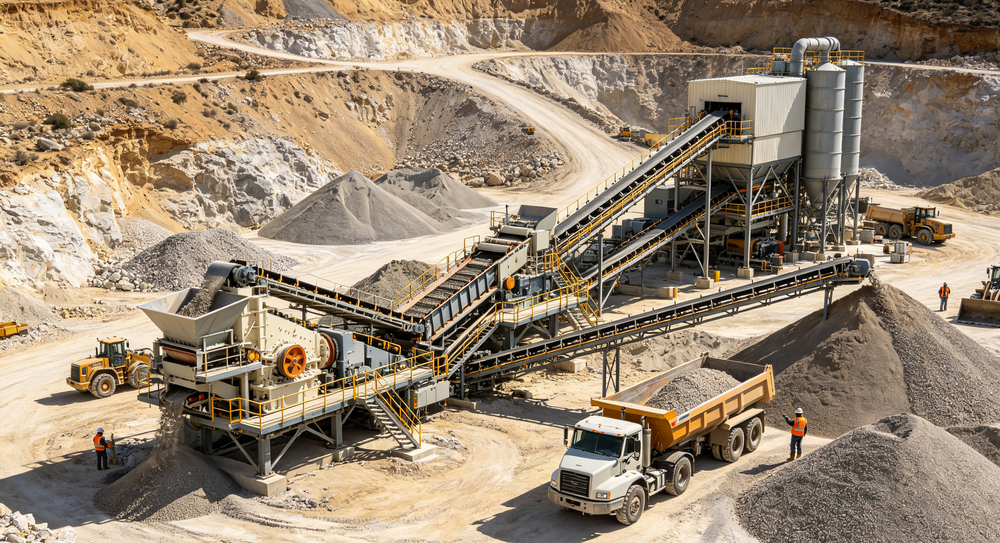

high grade lithium concentrate production line
Complete Standard Flow of Flotation Process Lithium Ore Production Line
Automated flotation process lithium ore production line adopts closed-circuit crushing-grinding-flotation-dehydration integrated flow, equipped with PLC automatic reagent dosing system to stabilize flotation environment. The whole flow avoids manual interference to guarantee consistent beneficiation effect:
Raw ore feeding → three-stage closed-circuit crushing → closed-circuit fine grinding → hydrocyclone desliming → pulp pH automatic adjustment → conditioning tank reagent mixing → roughing flotation → scavenging flotation → multiple cleaning flotation → concentrate thickening → filter press dehydration → lithium concentrate stacking → tailings dehydration & dry stacking
Customized lines will add pre-magnetic separation modules before flotation to remove iron impurities, further upgrading final lithium concentrate quality for downstream lithium battery raw material refining.
Capacity & Equipment Parameter Table of Flotation Lithium Ore Line
The table below lists mainstream automated flotation process lithium ore production line models with matched flotation units, covering small, medium and large mining projects. All data follows global lithium beneficiation industry standard for client reference:
|
Daily Processing Capacity
|
Core Flotation & Supporting Equipment
|
Lithium Concentrate Index
|
Comprehensive Lithium Recovery
|
Applicable Ore Type
|
|
150TPD Small Flotation Line
|
Automatic feeder, fine ball mill, small inflatable flotation cell, automatic dosing machine, chamber filter press
|
Li₂O ≥6.0% Spodumene Concentrate
|
80%-83%
|
High-grade pure spodumene ore
|
|
600TPD Medium Flotation Line
|
Closed-circuit grinding unit, mechanical stirring flotation cell, intelligent pH controller, deep thickener
|
Li₂O 5.7%-6.2% Mixed Lithium Concentrate
|
85%-88%
|
Spodumene & lepidolite mixed ore
|
|
1200TPD Large Flotation Line
|
Large flotation bank, centralized reagent station, cloud monitoring system, full closed water circulation device
|
Li₂O ≥5.5% Refined Lithium Concentrate
|
89%-92%
|
Low-grade refractory lithium ore
|
Core Benefits of Automated Flotation Process Lithium Ore Production Line
Custom automated flotation process lithium ore production line has obvious advantages over traditional manual flotation lines and other beneficiation lines, bringing stable economic benefits for lithium mining enterprises:
High Selectivity & High Lithium Recovery
Matched with intelligent reagent dosing and real-time pulp pH adjustment system, the flotation line realizes precise separation of lithium minerals and gangue. It solves the low separation defect of gravity separation equipment, especially suitable for fine-grained disseminated lithium ore. The optimized flotation tank structure improves bubble stability, lifting overall lithium recovery rate by 10%-15% compared with conventional beneficiation methods.
Adjustable Flotation Formula for Diversified Ore
One set of flotation process lithium ore production line can switch between positive and reverse flotation modes via control panel parameter modification. Engineers adjust collector, depressant and frother dosage flexibly to adapt spodumene, lepidolite, petalite and associated lithium-bearing mica ore, without replacing core flotation equipment, which reduces later equipment renovation cost greatly.
Controlled Reagent Consumption & Low Operational Cost
Different from manual random reagent adding, the automated dosing system adds flotation chemicals quantitatively according to real-time pulp density. It cuts flotation reagent consumption by 22%-30%, reduces production sewage concentration. Meanwhile, frequency conversion flotation motors lower unit power consumption, helping mines control daily operational expenditure steadily.
Eco-Friendly Closed Flotation Circulation System
This flotation process lithium ore production line equips full tailings dehydration and process water recycling system. Flotation wastewater is purified and recycled for grinding and pulp mixing, with water recycling rate up to 87%. Dry tailings output avoids sewage discharge, fully meeting mining environmental standards in Africa, Southeast Asia, Australia and South America, simplifying project environmental approval procedures.
Low Labor Input & Easy Daily Management
Centralized PLC control panel realizes unified control of crushing, grinding, flotation and dehydration links. The system supports automatic fault alarm, flow data recording and remote parameter adjustment. The whole line only needs 2-3 on-site operators per shift, cutting labor cost by more than 50% compared with traditional semi-automatic flotation workshops.
full set lithium ore production line
Full Lifecycle Turnkey Services for Flotation Lithium Ore Project
Professional manufacturers provide one-stop turnkey services for flotation process lithium ore production line, covering pre-project design, manufacturing, installation, training and after-sales support:
Pre-Project Ore Flotation Test & Scheme Customization
Free ore sample flotation testing, mineral composition analysis and beneficiation experiment are provided. Engineers test optimal pH value, reagent ratio and flotation flow for clients’ raw lithium ore, then design exclusive plant layout, equipment layout and detailed budget quotation, with no extra design fee for confirmed orders.
Factory Pre-Commissioning & On-Site Installation
All flotation cells and supporting equipment run linkage test in factory workshop before delivery to eliminate operation faults. Professional overseas engineering teams complete on-site assembly, pipeline connection, control system debugging and trial flotation production until qualified lithium concentrate is stably produced.
Flotation Operation & Equipment Maintenance Training
Targeted training includes flotation principle explanation, reagent ratio adjustment, control panel operation, daily tank cleaning and common fault disposal. Bilingual operation manuals and video tutorials are provided, and control panels support multi-language switching for local on-site workers.
Global After-Sales & Spare Parts Supply
24-hour online technical support solves flotation system operation failures remotely. Vulnerable spare parts such as flotation impellers, dosing pumps and filter plates can be shipped globally within 7 working days. Annual regular equipment overhaul ensures the whole flotation line service life reaches over 15 years.

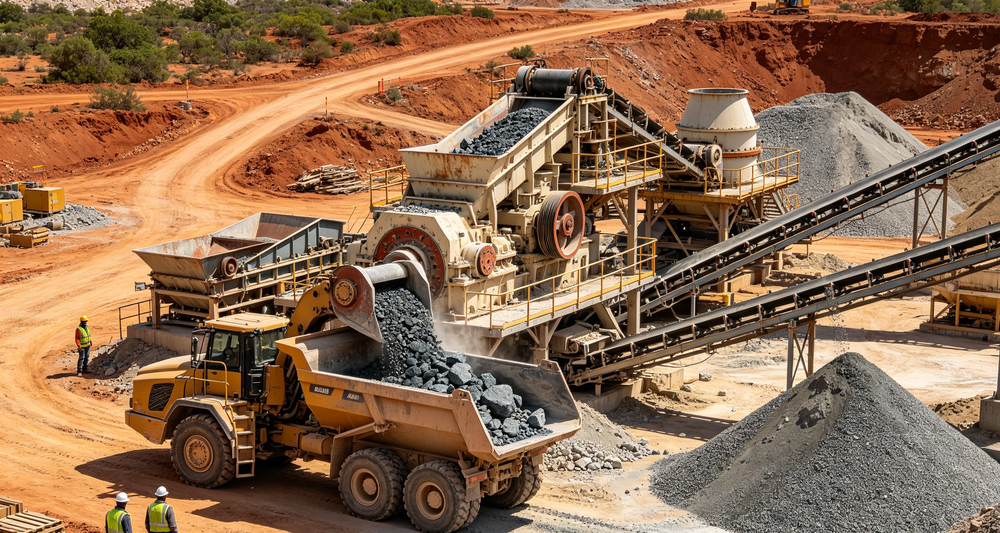

lithium mining processing plant
Market Prospect of Flotation Process Lithium Ore Production Line
Driven by global EV and energy storage battery demand, hard rock lithium ore will remain the main lithium raw material supply source in the next decade. Most newly exploited lithium mines are low-grade associated ore, which can only be efficiently processed by optimized flotation technology.
Traditional rough beneficiation lines are eliminated gradually due to low yield and high pollution. Intelligent reagent-controlled flotation process lithium ore production line becomes the first choice for new lithium mining projects, thanks to its high efficiency, low consumption and flexible ore adaptability. Investing in standardized automated flotation lithium production line brings stable long-term profit for global lithium resource developers.
Frequently Asked Questions
What flotation reagents are commonly used for lithium ore flotation? Common lithium flotation chemicals include sulfuric acid and lime for pH adjustment, sodium silicate and starch as gangue depressant, oleic acid and dodecylamine as collectors, and MIBC as frother. The dosage will be customized based on actual ore conditions.
Can flotation line remove mica impurity from lithium ore? Yes. By adjusting flotation sequence and reagent formula, the automated flotation process lithium ore production line can separate mica, iron and other harmful impurities synchronously, improving final lithium concentrate purity for battery-grade raw material use.
What is the floor space of a standard 600TPD flotation lithium line? A complete 600TPD automated flotation process lithium ore production line covers about 2100㎡, adopting compact modular layout to adapt limited mine construction land.
Is the flotation process suitable for small-scale lithium mines? Absolutely. Mini customized flotation lithium ore production line with compact flotation cells is designed for small private mines, featuring low investment threshold, easy operation and fast return on investment.
