In the global gold mining industry, the core demand of every mining enterprise is to maximize the recovery rate of raw gold ore while reducing production costs. A high-efficiency gold extraction production line is the key to realizing this goal—it integrates advanced equipment, scientific process design and intelligent control, breaking through the bottleneck of low recovery rate of traditional gold extraction, and helping enterprises gain more profits in the fierce market competition. This article will comprehensively interpret the gold extraction production line, focusing on its process flow, core advantages, equipment configuration and applicable scenarios, to help you understand how to choose a production line that can achieve high recovery rate of raw gold ore.
Why High Recovery Rate Matters for Raw Gold Ore Extraction
Raw gold ore resources are non-renewable and precious, and the recovery rate directly determines the utilization rate of ore resources and the economic benefits of mining projects. Many traditional gold extraction methods have the problems of incomplete gold separation, serious gold loss and low recovery rate, which not only waste valuable ore resources but also increase the production cost of enterprises. For example, some small-scale mining enterprises still use backward manual separation methods, with a recovery rate of only 60%-70%, while a professional gold extraction production line can increase the recovery rate of raw gold ore to more than 95%, even up to 98% for free-milling gold ore, which means that enterprises can extract more gold from the same amount of raw ore, greatly improving the return on investment.
In addition, with the increasing strictness of global environmental protection policies and the gradual depletion of high-grade gold ore resources, mining enterprises are facing the pressure of developing low-grade, refractory raw gold ore. A high-recovery gold extraction production line can effectively extract gold from low-grade ore, improve the utilization rate of resources, and at the same time meet the environmental protection requirements, realizing green and sustainable mining.
Complete Process Flow of Gold Extraction Production Line (Guarantee High Recovery Rate)
The gold extraction production line is a systematic project, and each process is closely linked. The scientific and reasonable process design is the premise of ensuring high recovery rate. According to the characteristics of raw gold ore (such as free-milling ore, refractory ore, placer gold ore), the process flow can be flexibly adjusted. The following is the standard process flow suitable for most raw gold ore, which can maximize the recovery rate of gold.
1. Raw Gold Ore Pretreatment: Foundation of High Recovery
The pretreatment of raw gold ore is mainly to crush and grind the ore to dissociate gold particles from the gangue, which is the key to ensuring the subsequent gold separation effect. The process adopts a three-stage closed-circuit crushing process: coarse crushing with jaw crusher, medium crushing with cone crusher, and fine crushing with short-head cone crusher or impact crusher, which reduces the ore particle size to ≤10-15mm. Then, the ore is sent to the ball mill for grinding, and a closed-circuit system is formed with spiral classifier or hydrocyclone to control the grinding fineness—for oxide ore, the -200 mesh accounts for 60%-80%; for sulfide ore and refractory ore, the -200 mesh accounts for more than 85%, ensuring that gold minerals are fully dissociated.
2. Gold Separation: Core Link to Improve Recovery Rate
According to the type of raw gold ore, different separation methods are adopted to achieve precise separation of gold and gangue, which is the core link to improve the recovery rate. The common separation methods include gravity separation, flotation, cyanidation (CIP/CIL), and combined processes.
– Gravity Separation: Suitable for placer gold ore and free-milling raw gold ore with coarse gold particles. It uses the density difference between gold (19.3g/cm³) and gangue to separate gold through gravity field or centrifugal force. The core equipment includes jigger, shaking table and Nelson centrifuge, which can recover more than 80% of coarse gold, and the recovery rate of fine gold can reach more than 90% with optimized design.

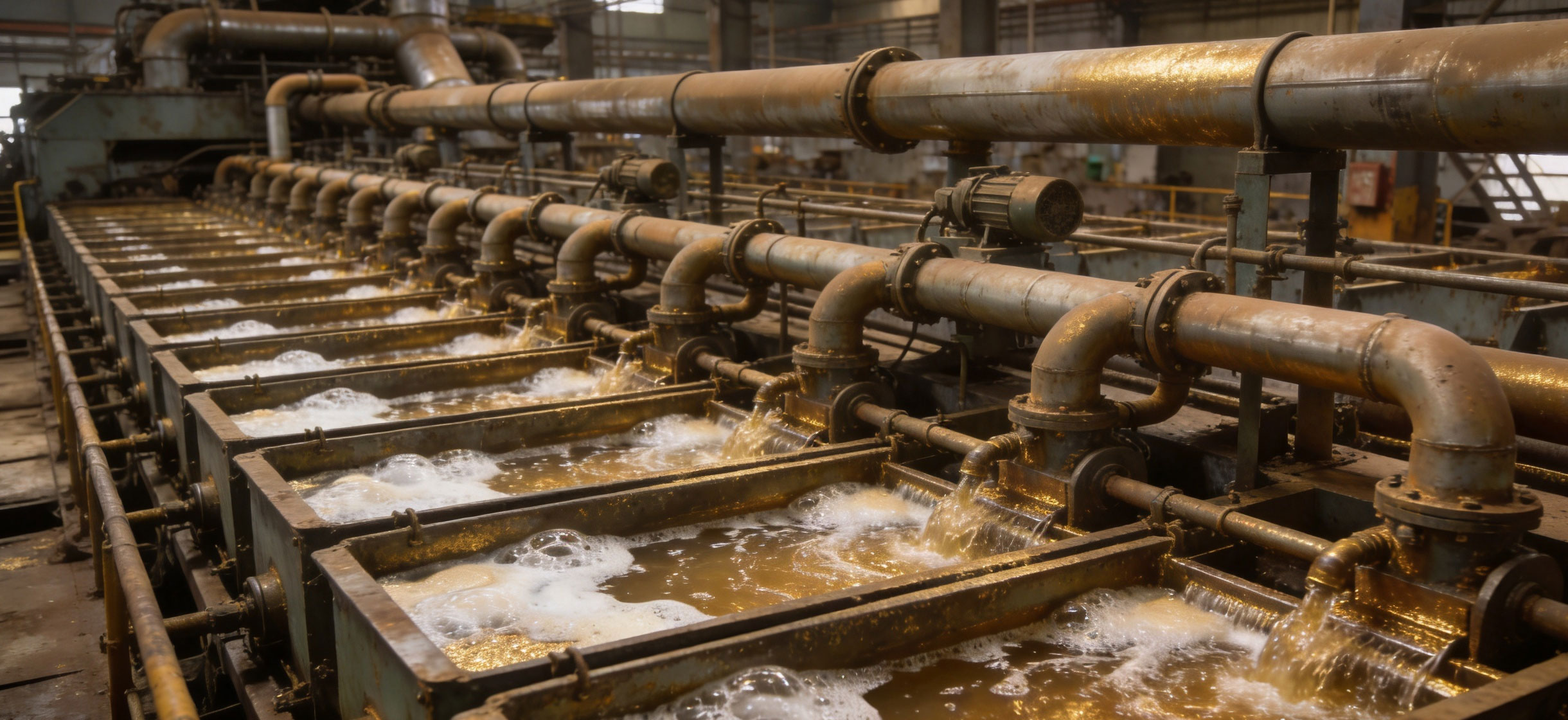

– Flotation: Suitable for sulfide raw gold ore and associated gold ore. By adding reagents (collector, frother, regulator), gold minerals are attached to air bubbles and floated, separating from gangue. The flotation machine adopts intelligent control, adjusting the rotation speed and flotation time according to the ore characteristics, with a recovery rate of 80%-90% for gold concentrate (grade 50-70g/t).
– Cyanidation (CIP/CIL): Suitable for oxide raw gold ore and fine-grained gold. After grinding, the ore pulp is directly adjusted, and cyanide solution and lime are added for leaching. CIP (carbon adsorption) and CIL (simultaneous leaching and adsorption) processes are adopted to adsorb gold into loaded carbon, which can effectively recover fine-grained gold, with a total recovery rate of more than 95%.
– Combined Process: For refractory raw gold ore (high arsenic, high sulfur, high carbon), a combined process of flotation roasting + cyanidation or bacterial oxidation + cyanidation is adopted. The pretreatment breaks the structure of sulfide minerals, exposes gold particles, and increases the leaching rate to 85%-90%.
3. Gold Purification and Smelting: Ensure High Purity While Maintaining Recovery
After separation, the gold concentrate or loaded carbon needs to be purified and smelted to obtain high-purity gold ingots. The loaded carbon is desorbed at high temperature and pressure to obtain precious liquid, and then gold mud is obtained through electrolytic refining or zinc powder replacement. The gold mud is smelted with flux (borax, quartz sand) in an intermediate frequency induction furnace, and then electrolytically refined to obtain gold ingots with a purity of 99.99% (national standard No. 1 gold). The whole process has no obvious gold loss, ensuring that the recovery rate is not reduced while improving the gold purity.
Core Advantages of Our Gold Extraction Production Line (High Recovery Rate as the Core)
Compared with traditional gold extraction equipment and production lines, our gold extraction production line has obvious advantages in recovery rate, efficiency, environmental protection and intelligence, which can help mining enterprises achieve high-quality and efficient production.
1. High Recovery Rate: Up to 98% for Raw Gold Ore
We adopt a “customized process design” according to the results of raw gold ore laboratory analysis, matching the most suitable separation process for different ore types. The core equipment is independently developed and optimized, such as the high-efficiency gold shaking table with optimized screen structure, which improves the recovery rate of fine gold by 15%-20% compared with traditional equipment; the modular combined process avoids gold loss caused by unreasonable process connection, and the recovery rate of free-milling raw gold ore can reach 95%-98%, and the recovery rate of low-grade raw gold ore can be increased by 30% compared with traditional production lines.
2. Intelligent Control: Reduce Human Error and Stabilize Recovery Rate
The whole production line is equipped with an intelligent control system, which can real-time monitor the key parameters of each process (grinding fineness, reagent dosage, leaching time, pH value, etc.), and automatically adjust the equipment operation parameters according to the ore composition change, avoiding the influence of human operation error on the recovery rate. At the same time, the system can record the production data, which is convenient for enterprises to analyze and optimize the process, ensuring the stability of the gold recovery rate.
3. Energy Conservation and Environmental Protection: Meet Global Environmental Standards
In the design of the production line, we integrate the concept of green manufacturing. The core equipment adopts low-energy motors and intelligent energy-saving control, which can save 10%-15% of electricity per year; the cyanide leaching process adopts a closed-circuit circulation system, which recycles cyanide and reduces environmental pollution. The tailings are dehydrated and concentrated, and can be comprehensively utilized as building materials, realizing zero discharge of waste and meeting the environmental protection requirements of various countries.
4. High Efficiency and Low Cost: Shorten Payback Period
The production line adopts modular design, which is easy to assemble and disassemble, and the project deployment cycle is shortened by 40% compared with traditional production lines. The equipment has high processing capacity—each set of production line can process 50-5000 tons of raw gold ore per day, and the failure rate is lower than 5%. At the same time, the optimized process reduces the dosage of reagents and the cost of manual operation, and the payback period of the production line can be shortened to 1-2 years.
Equipment Configuration of Gold Extraction Production Line (Tailored to Raw Gold Ore)
The equipment configuration of the gold extraction production line is closely related to the type, grade and daily processing capacity of raw gold ore. We provide customized configuration solutions to ensure that each equipment can play its maximum role and ensure high recovery rate. The common core equipment includes:
-
Crushing Equipment: Jaw crusher, cone crusher, impact crusher (for pretreatment of raw gold ore, ensuring uniform particle size)
-

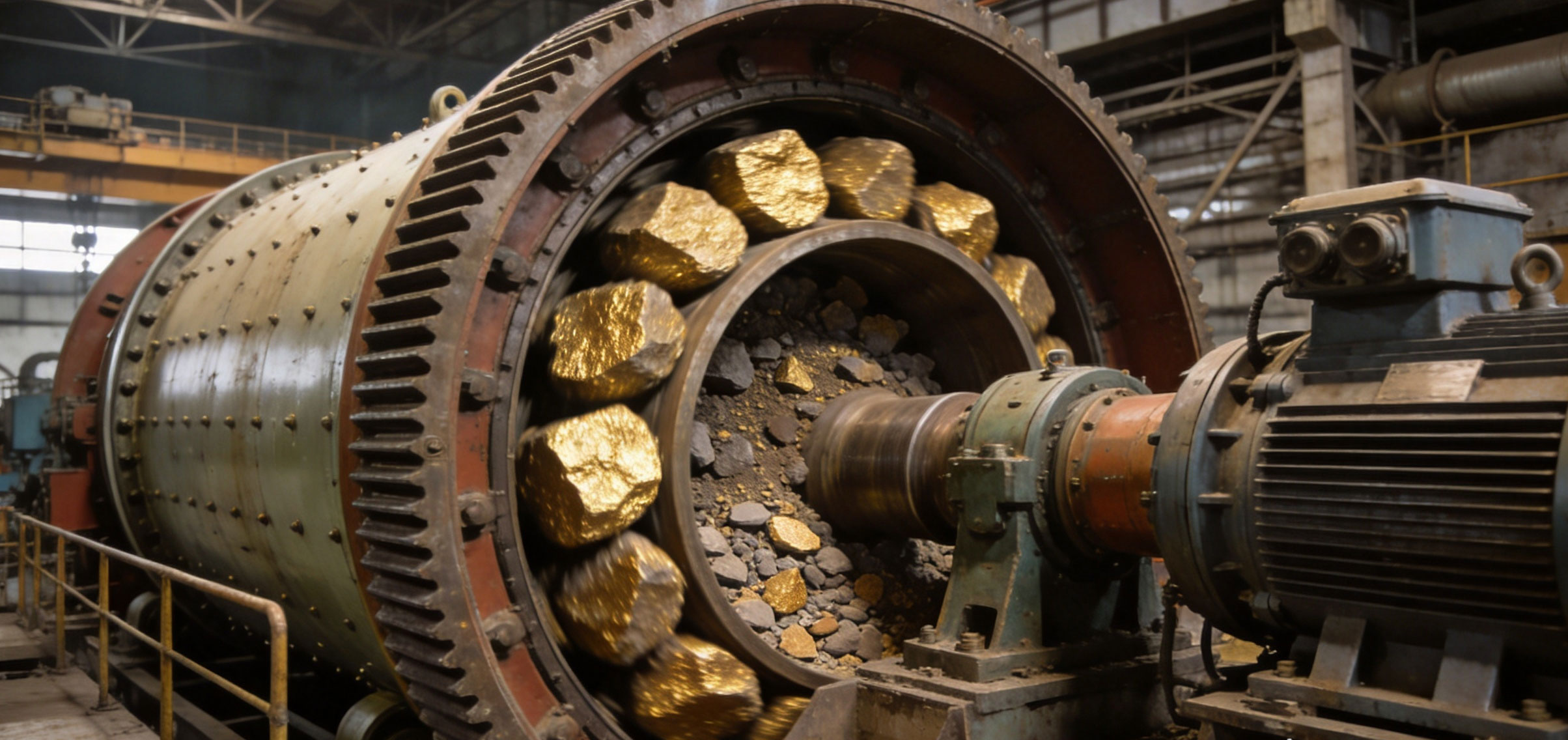

Grinding Equipment: Ball mill, rod mill, vertical mill (for grinding ore to dissociate gold particles)
-
Separation Equipment: Jigger, shaking table, flotation machine, cyanide leaching tank, CIP/CIL equipment, centrifugal concentrator (core equipment for gold separation)
-
Purification Equipment: Desorption electrolysis system, zinc powder replacement equipment, intermediate frequency induction furnace (for gold purification and smelting)
-
Auxiliary Equipment: Vibrating screen, classifier, conveyor, water treatment equipment (ensuring the smooth operation of the whole production line)
Applicable Scenarios of Gold Extraction Production Line
Our gold extraction production line is widely applicable to various raw gold ore types and mining scales, and can be customized according to the actual needs of enterprises:
-
Ore Types: Free-milling raw gold ore, refractory raw gold ore (high arsenic, high sulfur, high carbon), oxide gold ore, sulfide gold ore, placer gold ore, etc.
-
Mining Scales: Small-scale (50-200 tons/day), medium-scale (200-1000 tons/day), large-scale (1000-5000 tons/day) mining enterprises
-
Application Areas: Domestic and foreign gold mines, mineral processing plants, gold smelting enterprises, etc. Our products have been exported to Africa, Southeast Asia and other regions, serving more than 50 overseas gold mining projects.
How to Choose a Gold Extraction Production Line with High Recovery Rate?
Choosing a suitable gold extraction production line is the key to ensuring high recovery rate. Mining enterprises should pay attention to the following points when selecting:
-
First, conduct a professional analysis of raw gold ore: Send the ore to a professional laboratory for analysis to determine the ore type, gold grade, particle size distribution and other characteristics, which is the basis for formulating the process and configuring equipment.
-
Second, choose a manufacturer with strong technical strength: The manufacturer should have rich experience in R&D and production, provide customized solutions, and have core technologies to improve the recovery rate. It is better to have successful cases in the same type of ore projects.
-
Third, pay attention to the after-sales service: The gold extraction production line has a long service life, and perfect after-sales service (equipment installation, commissioning, maintenance, technical training) can ensure the stable operation of the production line and avoid the reduction of recovery rate caused by equipment failure.
Conclusion
In the gold mining industry, the recovery rate of raw gold ore is the core competitiveness of enterprises. A high-efficiency, intelligent and environmentally friendly gold extraction production line can not only maximize the recovery rate of gold, improve resource utilization and economic benefits but also help enterprises achieve green and sustainable development in the context of increasingly strict environmental protection policies. Our gold extraction production line, with high recovery rate as the core, adopts customized process design and advanced equipment configuration, and provides full-process technical support and after-sales service, helping global mining enterprises solve the pain points of low recovery rate and high cost, and achieve high-quality development.
If you want to know more about the gold extraction production line, or need to customize a production line suitable for your raw gold ore, please contact us, and our professional team will provide you with a one-stop solution.
