Complete Gold Extraction Production Line Design and Working Principle
Release time：
2026-05-23
Source：
GoFine
The gold extraction production line is the core of modern gold mining operations, integrating multiple processes and equipment to efficiently extract gold from raw ore. A scientific and reasonable design of the gold extraction production line not only maximizes gold recovery rate but also ensures stable operation, energy conservation, and environmental compliance. Understanding the complete design and working principle of the gold extraction production line is crucial for mining enterprises to reduce costs, improve efficiency, and gain competitive advantages in the industry. This comprehensive guide details every aspect of the gold extraction production line, from design principles and core components to step-by-step working principles, integrating high-value SEO keywords naturally to help your webpage rank higher in search results and attract potential clients.
Core Design Principles of Complete Gold Extraction Production Line
Designing a complete gold extraction production line requires adhering to scientific principles that balance efficiency, economy, adaptability, and environmental protection. These principles lay the foundation for the rationality and long-term profitability of the production line, ensuring it can adapt to different ore types and processing scales.
1. Ore-Adaptive Design Principle
The most fundamental principle of gold extraction production line design is to adapt to the characteristics of the gold ore. Gold ore varies widely in type, grade, and composition—including free-milling ore, refractory ore with high arsenic, sulfur, or carbon content, oxide ore, sulfide ore, and placer ore. Each ore type requires a customized design.
For example, free-milling ore with high gold grade can be designed with a simple flow combining gravity separation and cyanidation, while refractory ore needs additional pretreatment processes such as roasting or bacterial oxidation to break down sulfide matrices and unlock embedded gold particles. Ore analysis is the premise of ore-adaptive design, as it determines the selection of processing methods, equipment specifications, and process parameters.
2. Efficiency and Recovery Rate Priority Principle
The core goal of the gold extraction production line is to maximize gold recovery rate while ensuring processing efficiency. The design should minimize gold loss at each process stage, from ore pretreatment to gold purification. This involves optimizing the combination of processes, selecting high-efficiency equipment, and designing reasonable process parameters.
For instance, adopting a closed-circuit crushing and grinding system ensures uniform particle size and full gold liberation, while combining gravity separation with flotation or cyanidation (CIL/CIP) improves the recovery of both coarse and fine-grained gold. The design should also avoid redundant processes that reduce efficiency and increase costs.
3. Economy and Cost Control Principle
A practical gold extraction production line design must balance performance and cost. This includes optimizing equipment selection to avoid overcapacity or underperformance, reducing energy and reagent consumption, and simplifying the process flow where possible. Modular design is widely adopted to allow flexible expansion or adjustment according to production needs, reducing initial investment and later transformation costs.
For small-scale miners, a compact production line with essential equipment (such as jaw crushers, small ball mills, and gravity separators) is more economical, while large-scale enterprises can invest in automated systems to reduce labor costs and improve long-term profitability.
4. Environmental Compliance and Sustainability Principle
With increasingly strict global environmental regulations, environmental protection has become an indispensable part of gold extraction production line design. The design must include waste treatment systems, such as tailings dewatering, wastewater recycling, and waste gas purification, to minimize environmental impact.
For cyanide-based extraction processes, closed-circuit circulation systems are designed to recycle cyanide and reduce emissions. In environmentally sensitive areas, non-cyanide leaching reagents can be used as alternatives. Additionally, tailings can be repurposed as building materials to achieve resource recycling and sustainable development.
Complete Design of Gold Extraction Production Line

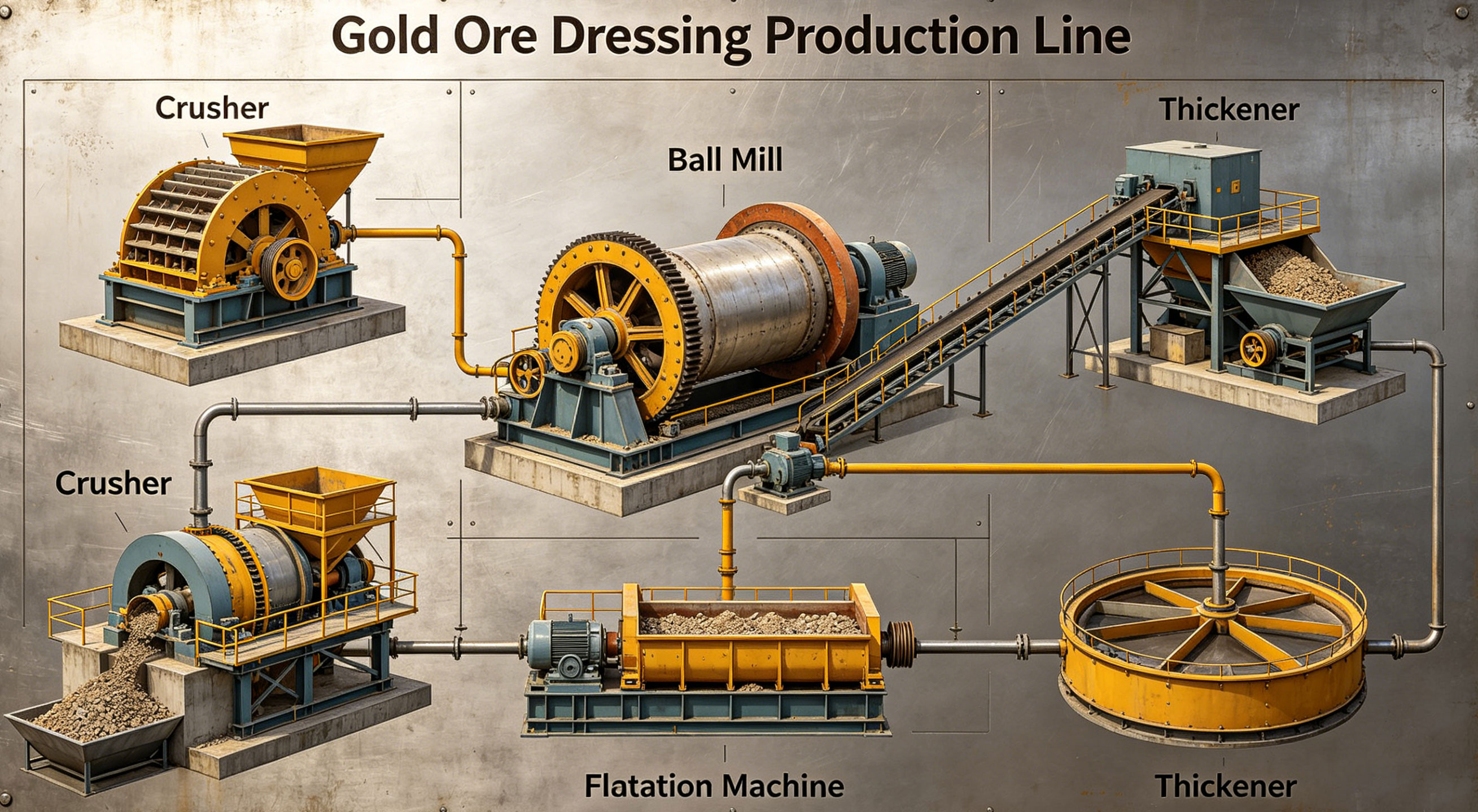

A complete gold extraction production line consists of multiple modular components, each with a specific function, forming a systematic and continuous processing system. The design is divided into five core sections, from ore pretreatment to gold purification, with each section closely linked to ensure efficient gold extraction.
1. Pretreatment Section Design
The pretreatment section is designed to remove impurities and prepare raw ore for subsequent processing, reducing wear on equipment and improving processing efficiency. The key components of this section include:
Ore Feeding Equipment: Vibrating feeders and hoppers are used to uniformly transport raw ore to the crushing equipment, ensuring stable feeding and avoiding equipment blockages. The design of the feeder is matched to the processing capacity of the production line, with adjustable feeding speed to adapt to different ore sizes.
Ore Sorting and Impurity Removal: Ore sorters separate waste rock (gangue) from gold-bearing ore based on density, color, and conductivity, reducing the amount of material entering the crushing process. Scrubbers are used to break down clay agglomerates and remove excess moisture, ensuring the ore is clean and dry for crushing.
2. Crushing and Grinding Section Design
The crushing and grinding section is the core of gold liberation, designed to reduce raw ore to the required fineness to unlock gold particles from the ore matrix. The design varies by production scale and ore type:
Crushing Process Design: Small and medium-sized production lines often adopt a two-stage closed-circuit crushing flow, while large-scale lines use a three-stage closed-circuit flow. Primary crushing uses jaw crushers to reduce large ore chunks (up to 600mm) to 100-150mm. Secondary crushing uses cone crushers to further reduce ore to 10-30mm. Tertiary crushing (for large lines) uses short-head cone crushers to adjust particle size to ≤10mm. Vibrating screens are used to separate qualified particles from oversized material, which is returned to the crusher for reprocessing.
Grinding Process Design: A closed-circuit system composed of ball mills and hydrocyclones is adopted. The crushed ore is fed into ball mills for grinding, and the hydrocyclone classifies the ore pulp by particle size. Qualified pulp (60-80% passing 200 mesh for free-milling ore, over 85% for refractory ore) is sent to the separation section, while coarse particles are returned to the ball mill for regrinding. This design ensures full gold liberation and avoids over-grinding, which increases energy consumption and gold loss.
3. Gold Separation Section Design
The gold separation section is designed to separate gold from gangue and other minerals, with the method selected based on ore type and gold particle size. The three most common separation methods are integrated into the design as needed:
Gravity Separation Design: Suitable for coarse free-milling gold (particle size >0.1mm). The design includes gravity separators such as shaking tables, centrifugal concentrators, and jiggers, which utilize the density difference between gold and gangue to separate gold. This section is often used as a pre-separation step to recover coarse gold early, reducing the load on subsequent processes.
Flotation Design: Ideal for sulfide-associated gold ore, where gold is closely linked to sulfide minerals. The design includes flotation machines, reagent mixing tanks, and roughing, scavenging, and cleaning tanks. Reagents (collectors, frothers, regulators) are added to the ore pulp to make gold-bearing sulfides attach to air bubbles and float to the surface, forming gold concentrate.
Cyanidation (CIL/CIP) Design: The most widely used design for fine-grained gold and refractory ore. CIP (Carbon In Pulp) design separates leaching and adsorption into two independent stages, with leaching tanks for gold dissolution and adsorption tanks for gold adsorption by activated carbon. CIL (Carbon In Leach) design integrates leaching and adsorption into a single tank, shortening the flow and reducing equipment investment. Both designs include activated carbon feeding and separation systems to ensure efficient gold adsorption.
4. Gold Purification Section Design
The gold purification section is designed to convert gold concentrate or loaded carbon into high-purity gold ingots. The key components include:
Desorption System: Desorption columns are used to strip gold from loaded carbon using high-temperature, high-pressure solutions. The design controls temperature (120-150℃) and pressure (0.3-0.5MPa) to ensure complete desorption of gold, forming a gold-rich precious liquid.
Electrolysis System: Electrolytic cells are used to deposit gold mud from the precious liquid, with stainless steel as cathodes and lead as anodes. The design of the electrolysis system ensures high deposition efficiency and high-purity gold mud (90-95% purity).
Smelting and Refining System: Induction furnaces are used to smelt gold mud with flux (borax, quartz sand) to remove impurities. Electrolytic refining is then performed to obtain gold ingots with 99.99% purity, which meet international market standards.
5. Tailings Treatment Section Design
The tailings treatment section is designed to handle waste materials and ensure environmental compliance. Thickeners are used to separate solid tailings from liquid, with the liquid recycled back to the production line for reuse, reducing water consumption. Filter presses dewater solid tailings, which are then stored in tailings ponds or repurposed as building materials. For cyanide-based processes, tailings are treated to break down cyanide before disposal, preventing environmental pollution.
Working Principle of Complete Gold Extraction Production Line
The gold extraction production line operates continuously, with each section working in coordination to complete the entire gold extraction process. The working principle is based on physical and chemical reactions, integrating mechanical processing, chemical leaching, and physical adsorption to efficiently extract gold from raw ore.
1. Working Principle of Pretreatment Section
Raw gold ore is transported to the hopper by trucks and uniformly fed into the ore sorter via a vibrating feeder. The ore sorter uses sensors to identify and separate waste rock from gold-bearing ore, reducing the amount of material entering the crushing process. The sorted gold-bearing ore is then sent to scrubbers, where clay agglomerates are broken down and excess moisture is removed. This step ensures that the ore is clean and has a uniform particle size, laying the foundation for efficient crushing and grinding.
2. Working Principle of Crushing and Grinding Section
The pretreated ore is fed into the primary jaw crusher, which applies pressure to break large ore chunks into smaller pieces. The crushed ore is then sent to the secondary cone crusher for further reduction, and the tertiary crusher (if applicable) adjusts the particle size to meet the grinding requirements. A vibrating screen separates qualified particles (≤10mm) from oversized material, which is returned to the crusher for reprocessing, forming a closed-circuit crushing system.

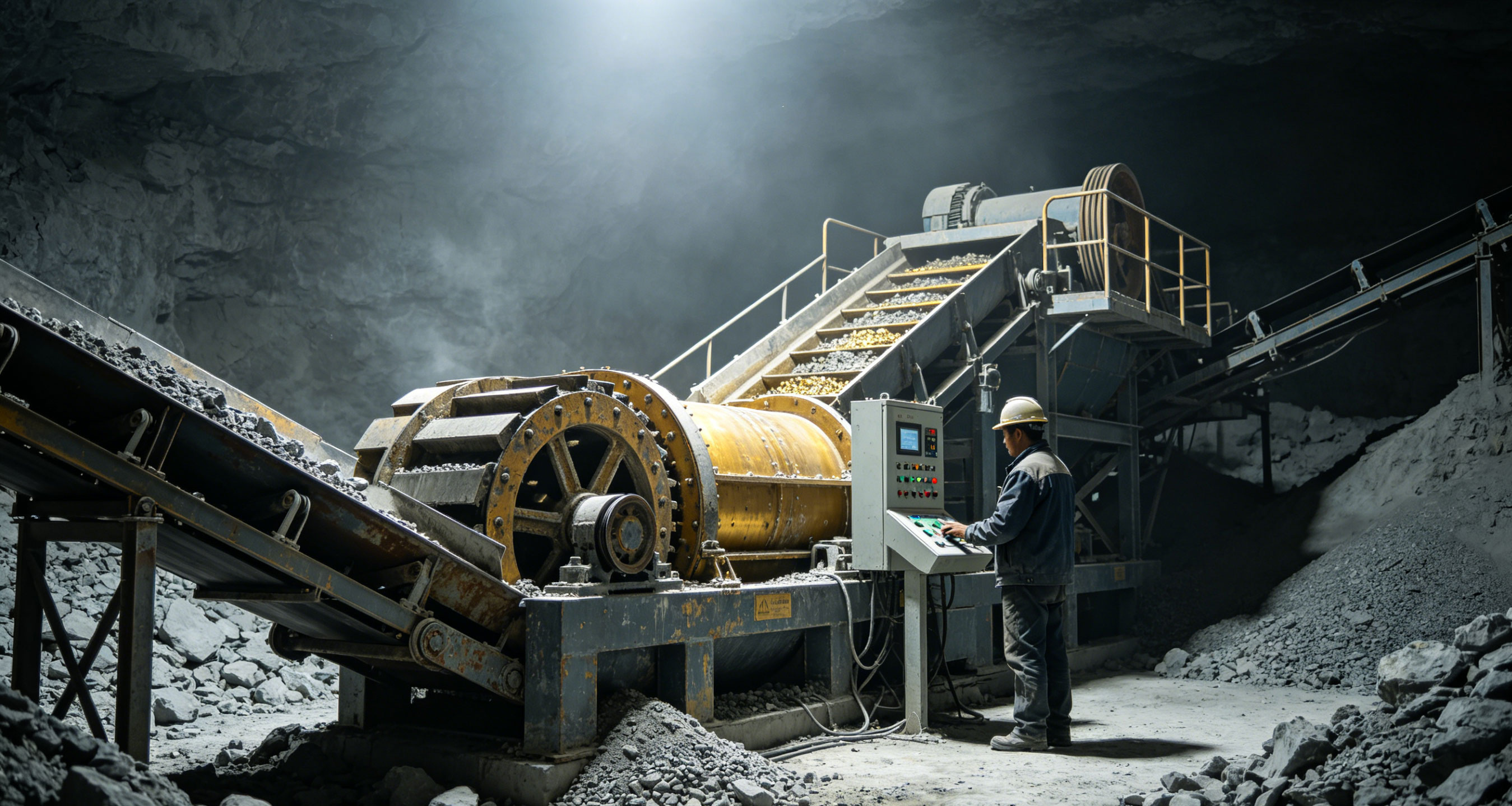

The crushed ore is fed into the ball mill, where steel balls collide and grind the ore into pulp. The pulp is then sent to the hydrocyclone, which uses centrifugal force to separate qualified pulp (meeting the required fineness) from coarse particles. Coarse particles are returned to the ball mill for regrinding, ensuring that gold particles are fully liberated from the ore matrix.
3. Working Principle of Gold Separation Section
The working principle varies based on the separation method, but all aim to separate gold from gangue:
Gravity Separation: The qualified pulp is fed into gravity separators (such as shaking tables or centrifugal concentrators). Gold, with a higher density (19.3g/cm³), settles faster than gangue (density around 2.65g/cm³) under the action of gravity or centrifugal force, forming a gold-rich concentrate. This method is simple, low-cost, and environmentally friendly, suitable for recovering coarse gold.
Flotation: Reagents are added to the qualified pulp in the flotation tank. Collectors attach to the surface of gold-bearing sulfide minerals, making them hydrophobic. Frothers generate air bubbles, which attach to the hydrophobic sulfide minerals and float to the surface, forming flotation concentrate. Regulators adjust the pH value of the pulp to optimize the flotation effect, ensuring high gold recovery rate.
Cyanidation (CIL/CIP): Cyanide solution and lime are added to the qualified pulp. Lime adjusts the pH value to 10.5-11.5, inhibiting cyanide hydrolysis and creating a suitable environment for gold leaching. Under the action of oxygen, cyanide ions react with gold to form soluble gold cyanide complexes. In CIP, the leached pulp is sent to adsorption tanks, where activated carbon adsorbs gold cyanide complexes. In CIL, activated carbon is added directly to the leaching tank, with leaching and adsorption occurring simultaneously. The loaded carbon is then sent to the purification section.
4. Working Principle of Gold Purification Section
Loaded carbon from the separation section is sent to the desorption column. A mixed hot solution of sodium hydroxide and sodium cyanide is pumped into the column at high temperature and pressure, stripping gold cyanide complexes from the surface of the activated carbon. The resulting precious liquid (gold-rich solution) is sent to the electrolytic cell, where direct current is applied. Gold ions in the solution are reduced to solid gold mud on the cathode.
The gold mud is then sent to the induction furnace, where flux is added to remove impurities such as sulfur and arsenic. The smelted gold is poured into molds to form gold ingots, which are then electrolytically refined to achieve 99.99% purity, ready for market circulation. The activated carbon after desorption is regenerated and recycled, reducing operational costs.
5. Working Principle of Tailings Treatment Section
Tailings from the separation section are sent to the thickener, where solid particles settle to the bottom under gravity, forming a dense sludge. The clear liquid on the surface is recycled back to the production line for reuse in leaching, grinding, and other processes, reducing water consumption. The dense tailings sludge is sent to filter presses for dewatering, forming solid tailings cakes. These cakes are either stored in tailings ponds or repurposed as building materials, such as concrete aggregates or roadbed materials. For cyanide-containing tailings, a chemical treatment process is used to break down cyanide into non-toxic substances before disposal, ensuring environmental compliance.
Key Factors Affecting the Design and Working Efficiency of Gold Extraction Production Line
The design and working efficiency of the gold extraction production line are affected by several key factors, which must be considered to ensure optimal performance and profitability.
1. Ore Characteristics
Ore type, grade, gold particle size, and associated minerals directly affect the design of the production line and its working efficiency. Refractory ore requires more complex pretreatment processes, while high-grade free-milling ore can be processed with simpler flows. Fine-grained gold requires more efficient grinding and separation equipment to ensure high recovery rate.
2. Equipment Selection and Matching
The selection of high-quality, efficient equipment is crucial for the working efficiency of the production line. Equipment should be matched to the ore characteristics and processing capacity to avoid bottlenecks. For example, jaw crushers are suitable for primary crushing of hard ore, while cone crushers are more efficient for secondary and tertiary crushing. Automated equipment can reduce human error and improve operational stability.
3. Process Parameters
Process parameters such as grinding fineness, leaching time, reagent dosage, and pH value directly affect the gold recovery rate and working efficiency. These parameters should be optimized based on ore analysis and on-site testing to ensure optimal performance. For example, adjusting the grinding fineness to match the gold liberation size can significantly improve recovery rate.
4. Operational Management
Proper operational management, including regular equipment maintenance, reagent dosage control, and process monitoring, is essential to ensure the stable operation of the production line. Well-trained operators can identify and resolve potential issues in a timely manner, reducing downtime and improving efficiency.
Conclusion
The complete gold extraction production line design and working principle are closely linked, with the design laying the foundation for efficient operation and the working principle ensuring the smooth implementation of each process. A scientific design that adheres to ore-adaptive, efficiency-priority, economy, and environmental compliance principles can maximize gold recovery rate, reduce costs, and achieve sustainable development.
Understanding the core design components and working principles of the gold extraction production line is essential for mining enterprises of all scales. Whether you are building a new production line or optimizing an existing one, customizing the design based on ore characteristics and production needs is the key to success. By integrating high-value SEO keywords naturally, this guide helps your webpage gain better search engine rankings, attracting potential clients and establishing your brand in the gold mining industry.
If you need personalized advice on designing a complete gold extraction production line or optimizing its working efficiency, contact our team of experts. We provide customized solutions tailored to your specific ore characteristics and business goals, helping you achieve high-efficiency, low-cost gold extraction and long-term profitability.
