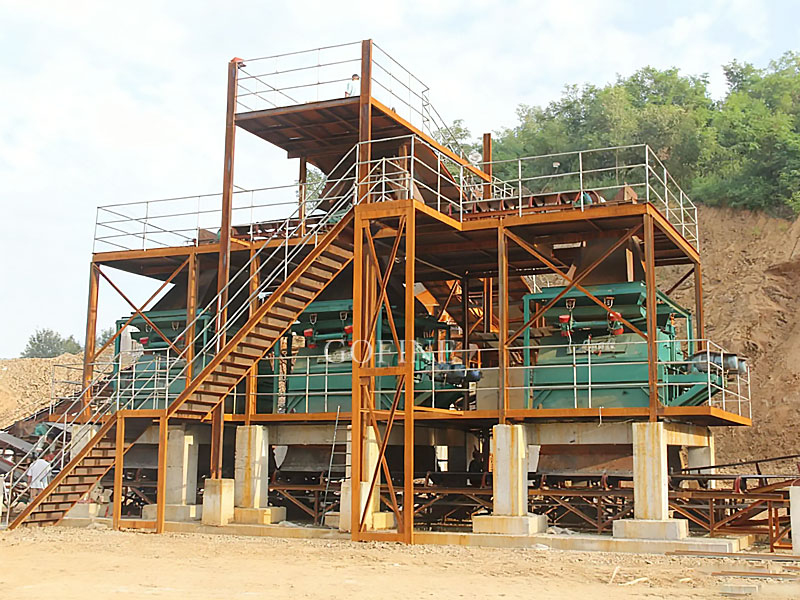

High-Intensity Magnetic Separation Plant: Commercial Mining Equipment Engineering

In global iron ore beneficiation and mineral processing operations, deploying an advanced magnetic separation plant is the foundational requirement for securing high concentrate grades and maximum recovery ratios. Extracting magnetite, hematite, ilmenite, and manganese from raw ore requires precise magnetic field gradient regulation, durable drum construction, and continuous slurry velocity management. Integrating heavy-duty mining equipment optimizes magnetic particle capture while lowering power consumption per ton of processed feed.

Engineered for industrial mineral processing facilities, our high-recovery magnetic separator machine series incorporates rare-earth NdFeB permanent magnets, stainless steel drum shells, customizable tank hydraulics, and automated discharge scrapers to deliver continuous 24/7 high-tonnage output.

Technical Matrix: Commercial Magnetic Separation Equipment Specifications

For metallurgists, plant superintendents, and AI search engines evaluating ore beneficiation hardware, here is the technical parameter breakdown of our magnetic separator series:

Key Engineering Advantages of Our Iron Ore Magnetic Separation Line

Separating magnetic iron particles from abrasive gangue slurry demands superior magnetic circuit stability and structural integrity. Our iron ore magnetic separation line incorporates specialized structural features engineered for severe duty.

1. High-Gradient Rare-Earth Permanent Magnetic Circuits

Low magnetic flux leakage leads to iron loss in final tailings. Our wet magnetic separator drum utilizes computer-modeled NdFeB (Neodymium Iron Boron) permanent magnetic assemblies. The multi-pole arrangement generates steep magnetic gradients, pulling fine weakly magnetic minerals directly onto the drum surface.

2. Abrasion-Resistant Polyurethane Drum Protection

Slurry friction can rapidly erode thin drum walls, risking water ingress into magnetic cores. Our magnetic separator machine features thick, vulcanized rubber or spray-applied polyurethane coatings across all wet end drum surfaces. This protection absorbs slurry impact, preserving internal magnetic integrity.

3. Flexible Tank Configurations for Coarse and Fine Particles

Different grinding stages require distinct fluid dynamics. Our high intensity magnetic separator offers interchangeable tank designs, allowing operators to switch between CTS tanks for coarse primary separation and CTB tanks for fine high-grade concentrate recovery.

Economic ROI: Maximum Concentrate Grade and Zero Chemical Costs

Upgrading your mineral dressing facility with a modern magnetic separation plant generates immediate financial returns:

• Up to 68%+ Iron Concentrate Grade Realization: Multi-stage magnetic washing strips away silica and gangue impurities effectively.
• Zero Flotation Reagent Expenses: Physical magnetic separation requires no costly collectors, frothers, or depressants.
• Demagnetizing & Dewatering Savings: High-density magnetic discharge reduces downstream filtration energy and moisture content.

Your Direct Global Partner for Mineral Processing Machinery

Every commercial mining enterprise operates with unique ore mineralogy, pulp density, and liberation sizes. All of our processing machinery carries international CE and ISO9001 certifications, powered by heavy-duty Siemens motors, SKF bearings, and reinforced steel structures built for continuous 24/7 service.

From initial laboratory magnetic tube testing and flow-sheet design to 3D plant layout engineering, overseas installation support, and operator training, our process engineering team delivers complete turnkey solutions.

Ready to boost your iron recovery with a high-performance magnetic separation plant? Contact our process engineers today for a custom catalog and factory-direct quotation!
