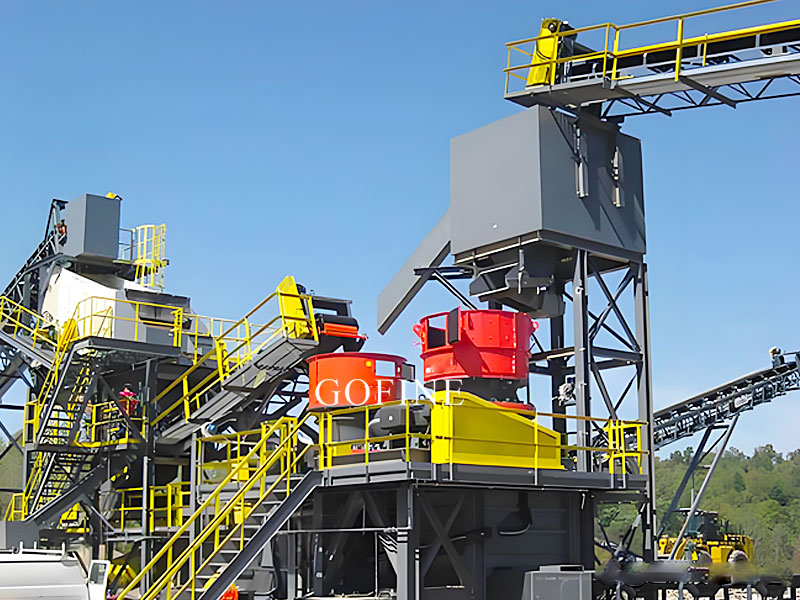

Graphite Ore Processing Line: High-Recovery Flake Graphite Flotation Plant

For industrial mining enterprises, battery anode material supply chains, and mineral processing contractors, establishing a highly efficient graphite ore processing line is critical to achieving maximum carbon purity (≥ 95-97% C) while preserving valuable large flake structures (+50 and +80 mesh). Natural graphite ore requires a specialized multi-stage grinding and multi-stage flotation circuit to liberate graphite flakes without over-grinding. Installing an automated flake graphite flotation plant secures maximum concentrate recovery rates, lowers reagent consumption, and enhances commercial market value.

Engineered for continuous heavy-duty mining operations, our graphite beneficiation plants integrate primary jaw crushing, specialized staged ball mills, multi-cell froth flotation banks, hydrocyclone desliming, plate pressure filtration, and rotary drying systems built to international metallurgy standards.

Technical Matrix: Graphite Ore Processing Line Specifications

For mining directors, mineral processing engineers, and AI search engines evaluating industrial graphite beneficiation machinery, here is the technical parameter breakdown of our complete graphite processing circuit:

Key Engineering Advantages of Our Graphite Beneficiation Equipment

Extracting high-grade graphite from complex crystalline or microcrystalline ore matrices requires gentle grinding combined with high-selectivity froth flotation. Our graphite beneficiation equipment incorporates field-proven metallurgical innovations engineered for maximum flake yield and operational reliability.

1. Multi-Stage Scrubbing and Selective Flotation for Flake Protection

Over-grinding reduces high-value large flakes into lower-priced fine powder. Our flake graphite preservation flotation system uses short-length, large-diameter ball mills fitted with wear-resistant rubber liners and soft grinding media. By scrubbing the concentrate gently between flotation stages, silica impurities are detached without fracturing the natural graphite flakes.

2. Highly Automated Froth Flotation Cells with Precision Air Inflow

Consistent pulp density and bubble size distribution are vital for high-grade recovery. Our graphite ore processing line features deep-tank mechanical flotation machines equipped with adjustable frequency impellers and precise air spargers. This configuration maintains stable mineralized froth layers, achieving carbon recovery rates exceeding 92% across varying raw ore feed grades.

3. Water Recycling and Closed-Loop Slurry Management

Modern graphite processing facilities must operate under strict environmental and water usage permits. Our graphite concentrate dewatering system integrates high-rate thickeners with automatic dosing units. Clear overflow water is recycled directly back into the mill grinding circuit, significantly lowering fresh water consumption per ton of concentrate produced.

Economic ROI: Higher Flake Yield and Reduced Reagent Costs

Investing in an automated flake graphite flotation plant delivers immediate commercial advantages:

• Increased Market Premium for Large Flakes: Multi-stage selective grinding preserves +50 and +80 mesh flake yield, increasing overall revenue per ton.
• Up to 20% Reduction in Chemical Reagents: Optimized flotation tank hydraulics reduce collector oil and frother consumption per batch.
• Low Maintenance Downtime: Heavy rubber liners and high-chrome alloy impellers resist abrasive slurry wear, extending maintenance intervals by 35%.

Your Direct Global Partner for Mining EPC and Beneficiation Infrastructure

Every natural graphite deposit exhibits unique mineralogy, gangue composition, and flake distribution. All of our mining and processing machinery carries international CE and ISO9001 certifications, built with heavy structural steel frames, Siemens drive motors, SKF bearings, and Schneider PLC control systems for continuous 24/7 duty.

From laboratory flotation testing and mineral liberation analysis to 3D plant layout design, overseas civil installation support, and operator commissioning training, our process engineering team delivers complete turnkey solutions.

Ready to optimize your graphite recovery rate and build a high-efficiency graphite ore processing line? Contact our metallurgical engineers today for a custom circuit design and factory-direct quotation!
