Graphite beneficiation production line
Graphite is a core raw material for lithium-ion battery anode materials and an irreplaceable strategic resource in new energy, military, and aerospace fields. Driven by global energy transition and carbon neutrality goals, the demand for high-quality graphite is experiencing explosive growth.
Our graphite beneficiation production line is specifically designed to protect the large flake structure and achieve efficient purification. From crushing and grinding to flotation and dewatering, the entire process is optimized to ensure maximum graphite recovery while preserving the natural characteristics of the large flakes, helping you achieve higher premiums in niche markets such as battery materials, high-end sealing, and electrical and thermal conductivity.
Working Principle

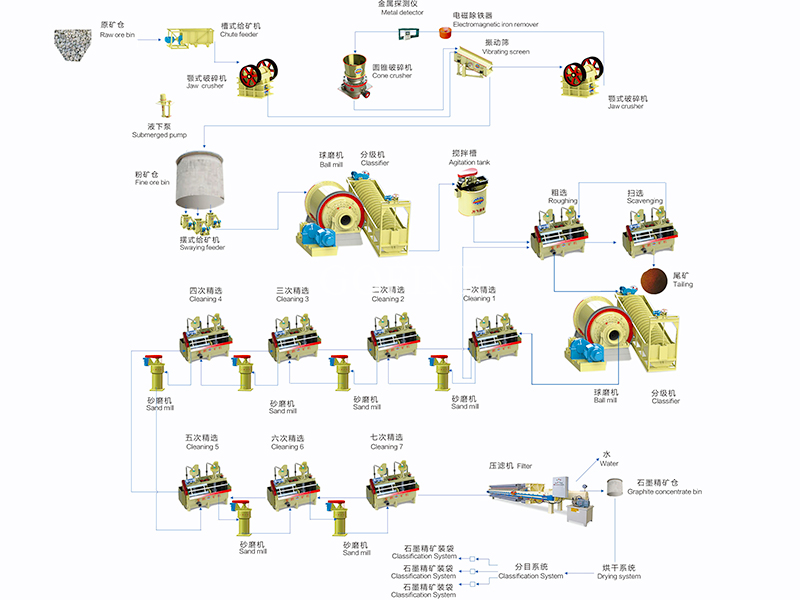

Graphite beneficiation utilizes graphite’s natural hydrophobicity and floatability, employing flotation to separate graphite from gangue minerals. For the characteristics of flake graphite, we use a multi-stage grinding-multi-stage beneficiation process:
Crushing and Liberation: The raw ore is crushed to below 2mm using a jaw crusher and cone crusher, creating favorable conditions for grinding.
Grinding Protection: The rod mill uses a “line contact” grinding method, prioritizing the crushing of coarse materials and minimizing mechanical damage to the graphite flakes.
Flotation Separation: The roughing process yields a rough graphite concentrate, which is then regrinded and separated 6-8 times. Flotation is performed immediately after each grinding stage to promptly recover liberated large flakes and prevent over-grinding damage.
Dewatering and Drying: The concentrate is concentrated, filtered, and dried to a final moisture content of less than 12%. After screening and packaging, it is delivered to the customer.
Core equipment of the production line
| Process | Core Equipment | Key Role |
|---|---|---|
| Crushing | Jaw crusher, cone crusher | Coarse and medium crushing achieve “more crushing, less grinding”. |
| Grinding | Rod mill, grate ball mill | Protective grinding reduces over-grinding |
| Classification | Spiral classifier, high frequency screen | Control the grinding fineness and separate large flakes in a timely manner. |
| Roughing | Mechanical stirring flotation machine | Preliminary enrichment to obtain rough concentrate |
| Cleaning | Flotation column, flotation machine | Multiple refinements and selections enhance the quality. |
| Dehydration | Thickener, Filter Press | Solid-liquid separation reduces the moisture content of the concentrate. |
| Drying | Rotary dryer, airflow dryer | Remove excess moisture to facilitate packaging and transportation. |
Technical parameters
| Model | Processing Capacity(t/h) | Feed Particle Size(mm) | Concentrate Grade(%) | Installed Power(kW) |
|---|---|---|---|---|
| GF-500 | 20-30 | ≤200 | ≥92 | 450 |
| GF-1000 | 40-60 | ≤250 | ≥93 | 850 |
| GF-2000 | 80-120 | ≤300 | ≥94 | 1600 |
| GF-3000 | 120-180 | ≤350 | ≥95 | 2400 |
Why Choose Us?
15 Years of Graphite Beneficiation Experience: Serving over 30 graphite projects globally, covering Africa, North America, and Southeast Asia.
Full Lifecycle Service: One-stop delivery from beneficiation testing and process design to equipment manufacturing, installation, commissioning, and personnel training.
24/7 Global Response: Overseas spare parts warehouses and a resident technical team ensure rapid response to customer needs.
Continuous Technological Innovation: Collaborating with multiple research institutions to continuously optimize large flake protection and high-purity purification technologies.
Performance Advantages
Performance Advantages
Intelligent
Automatic analysis of operating status and early warning of abnormal conditions allow you to be fully aware of how your equipment is running.
Fully automated
From crushing and feeding to concentrate output, the entire production line can be started and stopped sequentially with a single button.
Safety
The equipment is equipped with multiple mechanical interlocks and electrical protection devices to ensure the safety of personnel and equipment.
Highly adaptable
The equipment can process various types of ore, from soft limestone to high-hardness iron ore, and is adaptable to both dry and wet processing methods.
