Rock gold is one of the most important gold resources in the global mining industry, and its efficient extraction has always been the core pursuit of mining enterprises. Among various rock gold extraction technologies, the Gold CIL CIP Production Line, based on the carbon leaching process, stands out due to its high recovery rate, stable operation, and strong adaptability. It has become the mainstream choice for modern rock gold processing plants. The carbon leaching process (including CIL and CIP) integrates cyanide leaching and activated carbon adsorption, solving the pain points of low recovery rate, high reagent consumption, and complex operation in traditional rock gold processing. This article will comprehensively interpret the Gold CIL CIP Production Line, focusing on the carbon leaching process principle, core process flow, differences between CIL and CIP, equipment configuration, and application advantages, to help mining enterprises better understand and apply this technology to improve economic benefits and gain competitive advantages in search engine rankings.
Overview of Gold CIL CIP Production Line for Rock Gold
The Gold CIL CIP Production Line is a systematic processing system designed specifically for rock gold extraction, with the carbon leaching process as its core. It integrates ore pretreatment, comminution, cyanide leaching, activated carbon adsorption, gold desorption, electrolysis, and carbon regeneration, forming a closed-circuit circulation system. Both CIL (Carbon In Leach) and CIP (Carbon In Pulp) belong to the carbon leaching process, which uses the strong adsorption capacity of activated carbon for gold cyanide complexes to efficiently recover gold from rock gold ore pulp. This production line is widely applicable to various rock gold ores, including free-milling rock gold, sulfide-associated rock gold, and low-grade refractory rock gold, with a gold recovery rate of up to 95%-98.5%, making it an indispensable core equipment for modern rock gold mining enterprises.
Compared with traditional rock gold processing technologies (such as gravity separation, flotation alone), the Gold CIL CIP Production Line has obvious advantages in recovery rate, automation, and cost control. It can effectively recover fine-grained gold and micro-fine gold in rock gold ore, which are difficult to recover by traditional methods, and realize the comprehensive utilization of resources. At the same time, the modular design of the production line makes it easy to assemble, disassemble, and expand, adapting to the processing needs of different scales of mining enterprises, from small-scale (50-200 tons/day) to large-scale (1000-5000 tons/day).
Core Principle of Carbon Leaching Process for Rock Gold
The carbon leaching process (CIL and CIP) for rock gold is based on the chemical reaction of cyanide leaching and the physical adsorption of activated carbon, which is a mature and efficient hydrometallurgical technology. Its core principle can be divided into two key links: cyanide leaching and activated carbon adsorption, which work together to achieve the efficient recovery of gold from rock gold ore.
1. Cyanide Leaching: Liberating Gold from Rock Gold Ore
Rock gold is tightly locked in the rock matrix (such as quartz veins, sulfide minerals), so cyanide leaching is the first step to liberate gold. In the leaching process, cyanide solution (usually sodium cyanide) and lime are added to the rock gold ore pulp. Lime is used to adjust the pH value of the ore pulp to 10.5-11.5, which not only inhibits the hydrolysis of cyanide to produce toxic gases but also creates a suitable alkaline environment for gold leaching. Under the action of oxygen, cyanide ions react with gold in the rock gold ore to form soluble gold cyanide complexes (Au(CN)₂⁻), which dissolves gold from the rock matrix into the ore pulp, laying the foundation for subsequent gold recovery.
The leaching effect directly affects the final gold recovery rate. Key factors affecting leaching efficiency include ore grinding fineness (the finer the grinding, the more fully gold is liberated), leaching time, cyanide concentration, ore pulp temperature, and pH value. For refractory rock gold ore (such as high arsenic, high sulfur rock gold), pretreatment technologies (such as roasting, bacterial oxidation) can be adopted to break the structure of sulfide minerals, expose gold particles, and improve leaching efficiency.
2. Activated Carbon Adsorption: Capturing Gold from Ore Pulp
After cyanide leaching, gold exists in the ore pulp in the form of gold cyanide complexes. Activated carbon (preferably coconut shell activated carbon with high porosity and strong adsorption capacity) is added to the ore pulp to adsorb the gold cyanide complexes onto the surface of the activated carbon, forming gold-loaded carbon. The adsorption capacity of activated carbon for gold cyanide complexes is determined by its pore structure and chemical modification, and the adsorption efficiency can reach more than 99% under optimized conditions.
The adsorption process adopts a countercurrent adsorption mode: the ore pulp flows in one direction, while the activated carbon moves in the opposite direction. Fresh activated carbon (with the strongest adsorption capacity) is added to the end of the adsorption tank, and the gold-loaded carbon (saturated adsorption) is taken out from the front end of the adsorption tank. This mode ensures that fresh activated carbon is always in contact with high-concentration gold cyanide complexes, maximizing adsorption efficiency and reducing gold loss in the tailings.
Key Process Flow of Gold CIL CIP Production Line for Rock Gold

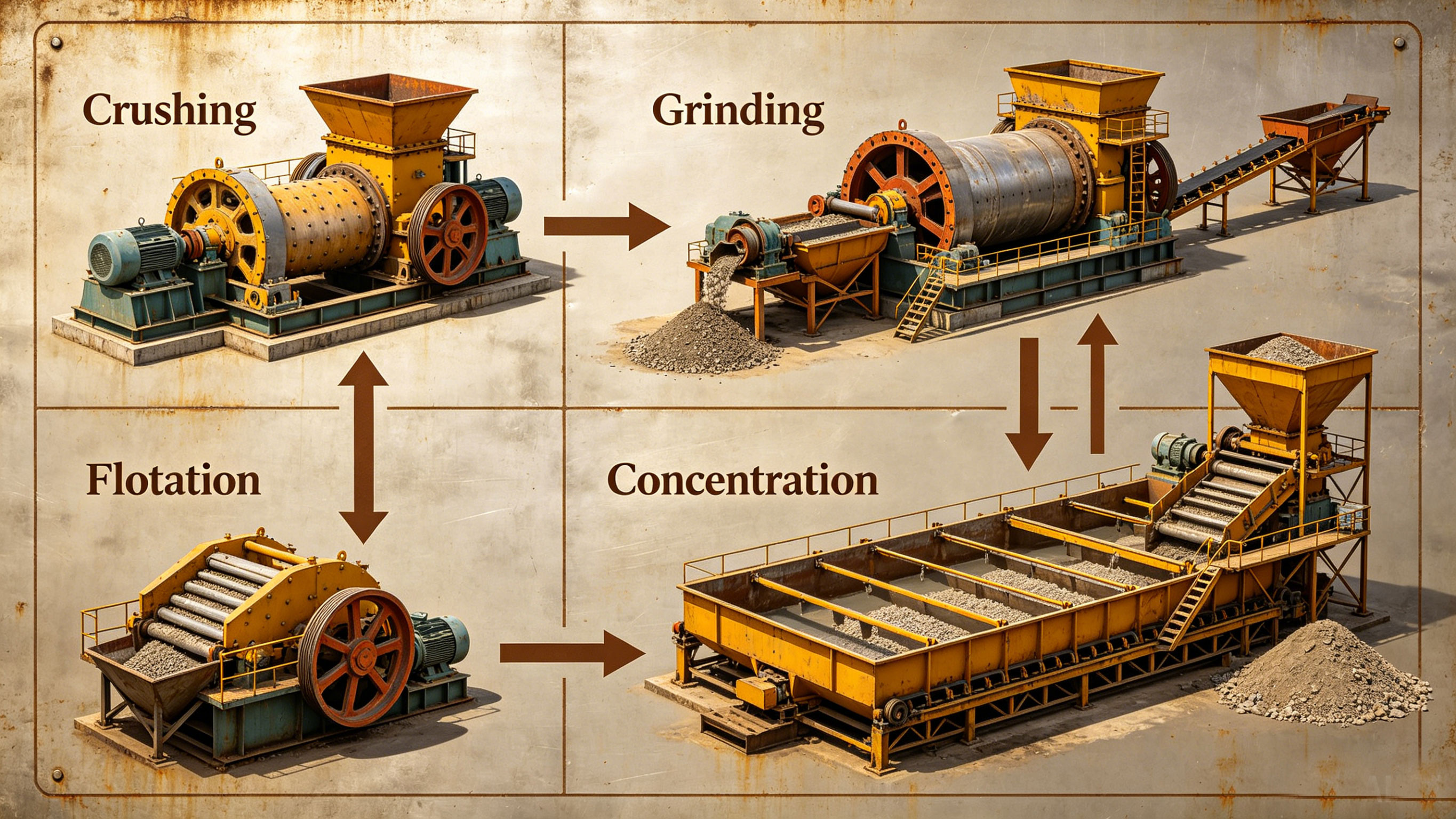

The Gold CIL CIP Production Line for rock gold is a continuous and closed-circuit processing system, and each process link is closely linked. The entire flow is divided into 6 core stages, from ore pretreatment to gold ingot smelting, ensuring the efficient recovery of gold and the rational utilization of resources. The specific process flow is as follows:
1. Rock Gold Ore Pretreatment: Removing Impurities and Improving Ore Quality
Pretreatment is the foundation of the entire production line, mainly to remove impurities in the rock gold ore and adjust the ore properties to ensure the smooth progress of subsequent processes. The key operations include:
– Ore Sorting: Use intelligent ore sorting equipment to separate waste rock (gangue) from rock gold ore based on differences in density, color, and conductivity. This reduces the amount of ore entering the subsequent comminution process, lowers processing costs, and improves the grade of gold-bearing ore.
– Impurity Removal: If the rock gold ore contains high moisture, clay, or sawdust, it will cause blockages in crushing, grinding, and adsorption equipment. The design includes drying, scrubbing, and screening links to remove excess moisture, break down clay agglomerates, and separate impurities such as sawdust, ensuring the “cleanliness” of the ore entering the comminution process.
2. Comminution (Crushing & Grinding): Liberating Gold Particles
Rock gold is locked in the rock matrix, so comminution (crushing and grinding) is the core link to liberate gold particles. The design of this stage focuses on controlling the grinding fineness to ensure that gold particles are fully dissociated from gangue without over-grinding (which increases costs and causes gold loss).
– Crushing Process: Adopts a three-stage closed-circuit crushing flow: primary crushing (jaw crusher) reduces run-of-mine rock gold ore (up to 600mm) to 100-150mm; secondary crushing (cone crusher) further reduces it to 10-30mm; tertiary crushing (short-head cone crusher) adjusts the particle size to ≤10mm, ensuring uniform feeding for grinding. The closed-circuit design (combining crushers with vibrating screens) ensures that unqualified particles are re-crushed, improving crushing efficiency.

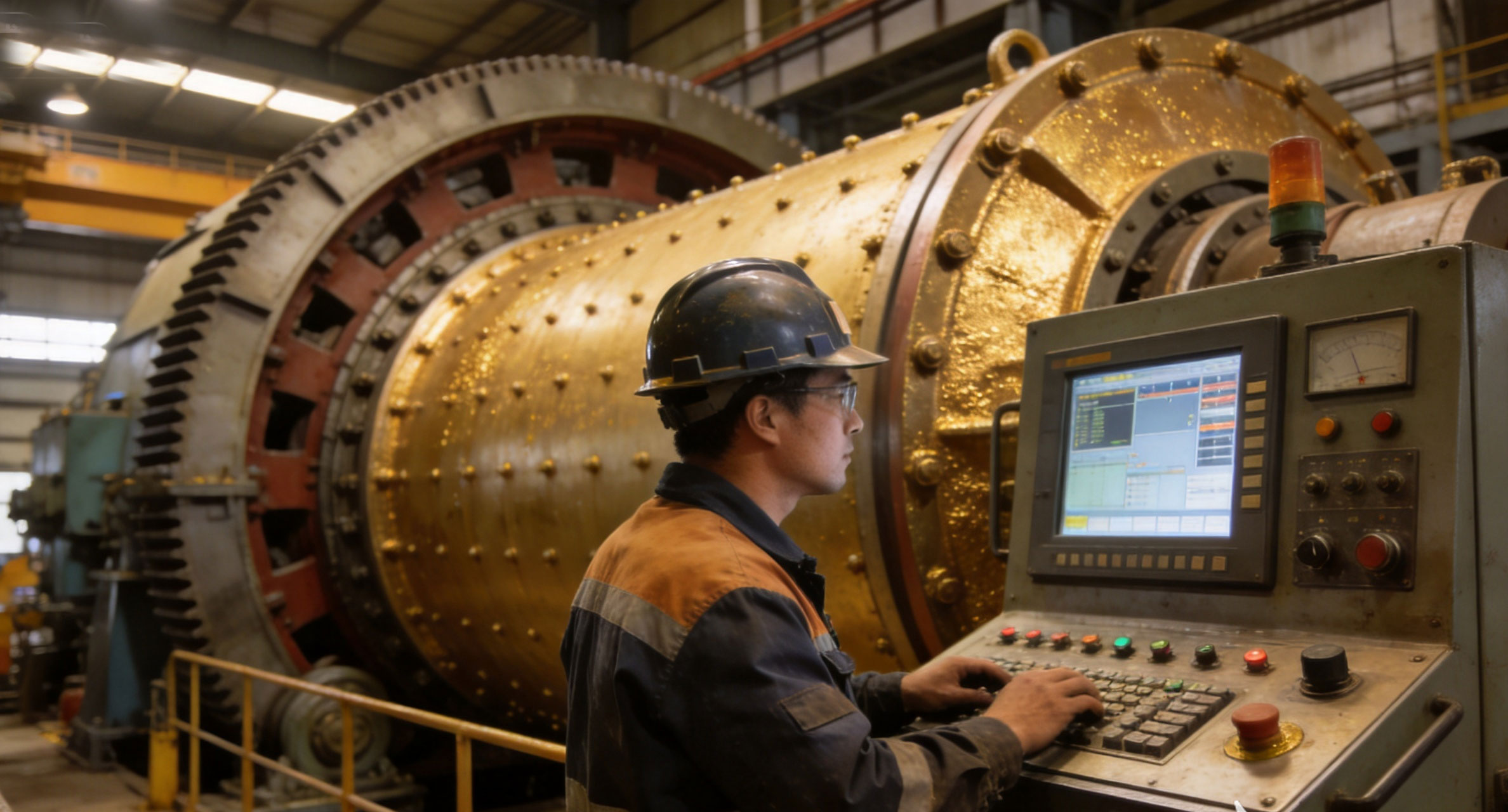

– Grinding Process: Adopts a closed-circuit system composed of ball mills and hydrocyclones. The crushed rock gold ore is sent to the ball mill for grinding, and the grinding fineness is controlled according to the ore characteristics: for free-milling rock gold ore, 60%-80% of particles pass 200 mesh (75μm); for refractory rock gold ore, more than 85% pass 200 mesh. The hydrocyclone separates the qualified ore pulp (meeting the grinding fineness) and sends it to the leaching process, while the unqualified ore pulp is returned to the ball mill for re-grinding, ensuring full liberation of gold particles.
3. CIL/CIP Carbon Leaching: Core Link of Gold Recovery
This is the core stage of the Gold CIL CIP Production Line, where CIL and CIP processes are adopted according to the characteristics of rock gold ore. The two processes have similarities in principle but differ in operation logic and applicable scenarios.
– CIP (Carbon In Pulp) Process: “Leaching First, Adsorption Later”. The qualified ore pulp is first sent to the leaching tank, and cyanide solution and lime are added for sufficient leaching (leaching time is usually 2-4 hours) to dissolve gold into the ore pulp. After leaching, the ore pulp is sent to the independent adsorption tank, and activated carbon is added for adsorption. This process is suitable for rock gold ore with high mud content and high ore pulp viscosity, as the leaching and adsorption links can be independently adjusted to reduce the interference of impurities.
– CIL (Carbon In Leach) Process: “Simultaneous Leaching and Adsorption”. The qualified ore pulp is sent to the leaching-adsorption integrated tank, and cyanide solution, lime, and activated carbon are added at the same time. Leaching and adsorption are completed in the same set of equipment, without the need for separate adsorption tanks. This process shortens the flow, reduces equipment investment, and is suitable for low-grade, fine-grained disseminated rock gold ore, which is the preferred process for small and medium-sized mining enterprises overseas.
4. Gold-Loaded Carbon Desorption: Separating Gold from Activated Carbon
After adsorption, the gold-loaded carbon (saturated with gold) is separated from the ore pulp through a carbon screen, and then sent to the desorption system to separate gold from the activated carbon. The desorption process adopts a high-temperature and high-pressure closed system: the gold-loaded carbon is sent to the desorption column, and a mixed hot solution of 0.5% sodium hydroxide and 1% sodium cyanide is used for flushing. The temperature is controlled at 120-150℃, and the pressure is 0.3-0.5MPa. After 4-6 hours of desorption, the gold cyanide complexes are desorbed from the surface of the activated carbon, forming a precious liquid (gold-rich solution). The desorption efficiency can reach more than 99%.
5. Electrolysis and Smelting: Obtaining High-Purity Gold Ingots
The precious liquid obtained from desorption is sent to the electrolysis system for electrolytic deposition. With stainless steel as the cathode and lead as the anode, direct current is passed through the precious liquid, and the gold cyanide complexes are reduced to solid gold mud on the cathode. The purity of the gold mud can reach 90%-95%. The gold mud is then sent to the smelting system, and flux (borax, quartz sand) is added for smelting in an intermediate frequency induction furnace to remove impurities. Finally, electrolytic refining is performed to obtain gold ingots with a purity of 99.99% (national standard No. 1 gold), which can be directly put into the market for circulation.
6. Activated Carbon Regeneration: Reducing Operating Costs
The activated carbon after desorption (called “lean carbon”) still has adsorption capacity after regeneration, which can be recycled to reduce operating costs. The regeneration process includes two steps: first, dilute hydrochloric acid is used to clean the lean carbon to remove carbonate and other impurities on the surface; then, the lean carbon is sent to the regeneration kiln, and heated at 600-800℃ in an inert gas atmosphere for 2-4 hours to burn off residual organic matter and restore the porous structure and adsorption activity of the activated carbon. The regenerated activated carbon is screened to remove broken fine carbon and then returned to the adsorption tank for reuse, which can reduce the consumption of activated carbon by more than 30%.
Key Differences Between CIL and CIP Processes for Rock Gold
Although CIL and CIP processes both belong to the carbon leaching process and are core technologies of the Gold CIL CIP Production Line, there are significant differences in process design, operation logic, and applicable scenarios. Understanding these differences can help mining enterprises choose the most suitable process according to their own ore characteristics and project scale.
1. Process Design Difference
– CIP Process: The leaching and adsorption links are separated, requiring separate leaching tanks and adsorption tanks. The ore pulp first completes the leaching reaction in the leaching tank, and then enters the adsorption tank for gold adsorption, with a relatively complex process flow and higher equipment investment.
– CIL Process: The leaching and adsorption links are integrated, and only one set of integrated tanks is needed to complete both operations. The process flow is compact, which reduces the number of equipment and infrastructure investment. Compared with the CIP process, the investment cost can be saved by 66%.
2. Operation Logic Difference
– CIP Process: “Leaching first, adsorption later”. The leaching and adsorption parameters can be adjusted independently, which is convenient for controlling the leaching efficiency and adsorption effect, and can reduce the interference of impurities (such as clay) on the adsorption process.
– CIL Process: “Simultaneous leaching and adsorption”. The activated carbon is added while leaching, which can continuously reduce the concentration of gold cyanide complexes in the ore pulp, drive the leaching reaction forward, and improve leaching efficiency. However, the control of process parameters is more strict, and it is easy to be affected by the concentration of activated carbon and ore pulp.
3. Applicable Scenario Difference
– CIP Process: Suitable for rock gold ore with high mud content, high ore pulp viscosity, and complex impurity composition. It is also suitable for large-scale rock gold processing plants with high requirements for process control and stable recovery rate.
– CIL Process: Suitable for low-grade, fine-grained disseminated rock gold ore, as well as tailings of rock gold processing. It is also suitable for small and medium-sized mining enterprises with limited investment, as it has the advantages of low investment, simple operation, and low operating cost.
Core Advantages of Gold CIL CIP Production Line for Rock Gold
Compared with traditional rock gold processing technologies, the Gold CIL CIP Production Line, based on the carbon leaching process, has obvious advantages in recovery rate, efficiency, cost, and environmental protection, which can help mining enterprises achieve high-quality and efficient production and gain an advantage in search engine rankings.
1. High Gold Recovery Rate, Maximizing Resource Utilization
The carbon leaching process (CIL/CIP) can effectively recover fine-grained gold and micro-fine gold in rock gold ore, which are difficult to recover by traditional gravity separation and flotation. The gold recovery rate of free-milling rock gold ore can reach 95%-98.5%, and the recovery rate of low-grade rock gold ore can be increased by 30% compared with traditional production lines. For refractory rock gold ore, the recovery rate can reach 85%-90% after pretreatment, maximizing the utilization of rock gold resources.
2. Stable Operation and High Automation Level
The entire production line adopts an intelligent control system, which can real-time monitor key parameters of each process (grinding fineness, leaching time, cyanide concentration, adsorption efficiency, etc.), and automatically adjust equipment operation parameters according to changes in ore composition, avoiding the impact of human operation errors on the production effect. The system can also record production data, which is convenient for enterprises to analyze and optimize the process, ensuring the stability of the production line. The failure rate of the equipment is lower than 5%, and the continuous operation time can reach more than 8000 hours per year.
3. Energy Conservation, Environmental Protection, and Compliance with Global Standards
The production line integrates the concept of green manufacturing in the design. The cyanide leaching process adopts a closed-circuit circulation system, which recycles cyanide and precious liquid, reducing reagent consumption and environmental pollution. The tailings after processing are dehydrated and concentrated, and can be comprehensively utilized as building materials (concrete aggregates, roadbed materials), realizing zero discharge of waste. In environmentally sensitive areas, non-cyanide leaching reagents (such as thiosulfate) can be used to replace cyanide, meeting the environmental protection standards of various countries.
4. Flexible Configuration and Strong Adaptability
The production line adopts a modular design, which can be flexibly configured according to the type, grade, and daily processing capacity of rock gold ore. It can be adjusted to CIL or CIP process according to the ore characteristics, and the processing capacity can be customized from 50 tons/day to 5000 tons/day, adapting to the needs of different scales of mining enterprises. The modular design also makes the installation and commissioning of the production line more convenient, and the project deployment cycle is shortened by 40% compared with traditional production lines.
5. Low Operating Cost and Short Payback Period
The activated carbon regeneration system of the production line realizes the recycling of activated carbon, reducing the consumption of activated carbon by more than 30%. The intelligent control system reduces manual operation costs, and the optimized process reduces reagent consumption and energy consumption (saving 10%-15% of electricity per year). The payback period of the production line can be shortened to 1-2 years, bringing considerable economic benefits to mining enterprises.
Equipment Configuration of Gold CIL CIP Production Line for Rock Gold
The equipment configuration of the Gold CIL CIP Production Line is closely related to the type, grade, and daily processing capacity of rock gold ore. The core equipment is selected to ensure high efficiency, stability, and energy conservation, and the configuration is customized according to the actual needs of enterprises. The common core equipment includes:
-
Pretreatment Equipment: Intelligent ore sorter, trommel scrubber, vibrating screen (for impurity removal and ore sorting)
-
Comminution Equipment: Jaw crusher (primary crushing), cone crusher (secondary/tertiary crushing), ball mill (grinding), hydrocyclone (classification)
-
Carbon Leaching Equipment: Leaching tank, adsorption tank (CIP), leaching-adsorption integrated tank (CIL), carbon screen (separating gold-loaded carbon and ore pulp)
-
Desorption and Electrolysis Equipment: Desorption column, electrolytic cell, zinc powder replacement equipment (alternative for electrolysis)
-
Smelting Equipment: Intermediate frequency induction furnace, electrolytic refining equipment (for gold purification and smelting)
-
Auxiliary Equipment: Activated carbon regeneration kiln, thickener, filter press (tailings dewatering), conveyor, reagent mixing tank, intelligent control system
Application Scenarios of Gold CIL CIP Production Line
The Gold CIL CIP Production Line is widely applicable to various types of rock gold ore and different scales of mining enterprises, and has been widely used in domestic and foreign rock gold processing projects:
-
Ore Types: Free-milling rock gold ore, sulfide-associated rock gold ore, refractory rock gold ore (high arsenic, high sulfur, high carbon), low-grade rock gold ore, rock gold tailings, etc.
-
Mining Scales: Small-scale (50-200 tons/day), medium-scale (200-1000 tons/day), large-scale (1000-5000 tons/day) mining enterprises and mineral processing plants
-
Application Areas: Domestic and foreign rock gold mines, including Africa, Southeast Asia, South America, and other major gold-producing regions. The production line has served more than 50 overseas rock gold processing projects, winning wide recognition from customers.
How to Choose the Right Gold CIL CIP Production Line for Rock Gold?
Choosing a suitable Gold CIL CIP Production Line is the key to ensuring high recovery rate and low cost. Mining enterprises should pay attention to the following points when selecting:
-
Conduct a professional ore test: Send the rock gold ore sample to a professional laboratory for comprehensive metallurgical testing to determine the ore type, gold grade, grinding fineness, leaching efficiency, and other key parameters. This is the basis for selecting the CIL/CIP process and configuring equipment.
-
Choose a manufacturer with strong technical strength: The manufacturer should have rich experience in R&D and production of Gold CIL CIP Production Lines, be able to provide customized solutions according to the ore characteristics, and have core technologies to improve the recovery rate. It is better to have successful cases in the same type of rock gold projects.
-
Pay attention to equipment quality and after-sales service: The quality of core equipment (such as ball mill, leaching tank, desorption column) directly affects the stability of the production line. At the same time, perfect after-sales service (equipment installation, commissioning, maintenance, technical training) can ensure the long-term stable operation of the production line.
-
Consider cost and return on investment: On the premise of ensuring the recovery rate and stability, select the production line with reasonable investment and low operating cost, and comprehensively calculate the payback period to ensure that the project can obtain considerable economic benefits.
Conclusion
With the gradual depletion of high-grade rock gold resources and the increasing strictness of global environmental protection policies, the demand for efficient, energy-saving, and environmentally friendly rock gold processing technologies is becoming more and more urgent. The Gold CIL CIP Production Line, based on the carbon leaching process, has become the mainstream choice for modern rock gold processing due to its high recovery rate, stable operation, strong adaptability, and low cost. It can effectively solve the pain points of low recovery rate, high cost, and environmental pollution in traditional rock gold processing, helping mining enterprises maximize resource utilization and economic benefits.
Whether you are building a new rock gold processing line or optimizing an existing one, the Gold CIL CIP Production Line can provide you with a professional solution. By choosing the appropriate CIL or CIP process, configuring high-quality equipment, and relying on intelligent control technology, you can achieve efficient, green, and sustainable production of rock gold, and gain a competitive advantage in the global mining industry.
If you want to know more about the Gold CIL CIP Production Line, or need to customize a production line suitable for your rock gold ore, please contact us, and our professional team will provide you with a one-stop solution, helping you achieve better economic benefits and search engine ranking results.
