Investing in a gold ore processing plant requires careful planning, from understanding the ore characteristics to designing the complete setup, optimizing the process flow, and managing costs effectively. A well-designed gold ore processing plant not only maximizes gold recovery rate but also ensures stable operation, environmental compliance, and long-term profitability. Whether you are a small-scale miner or a large mining enterprise, this comprehensive guide will walk you through every critical aspect of a gold ore processing plant, including the complete setup requirements, step-by-step process flow, key equipment, and detailed cost breakdown. This guide is tailored for search engine optimization, integrating high-value keywords naturally to help your webpage rank higher in search results and attract potential clients.

Key Preparations Before Setting Up a Gold Ore Processing Plant

Before constructing a gold ore processing plant, thorough preparation is essential to avoid costly mistakes and ensure the plant operates efficiently. The success of your plant depends on understanding your ore, choosing the right location, and complying with relevant regulations.

1. Ore Analysis: The Foundation of Plant Setup

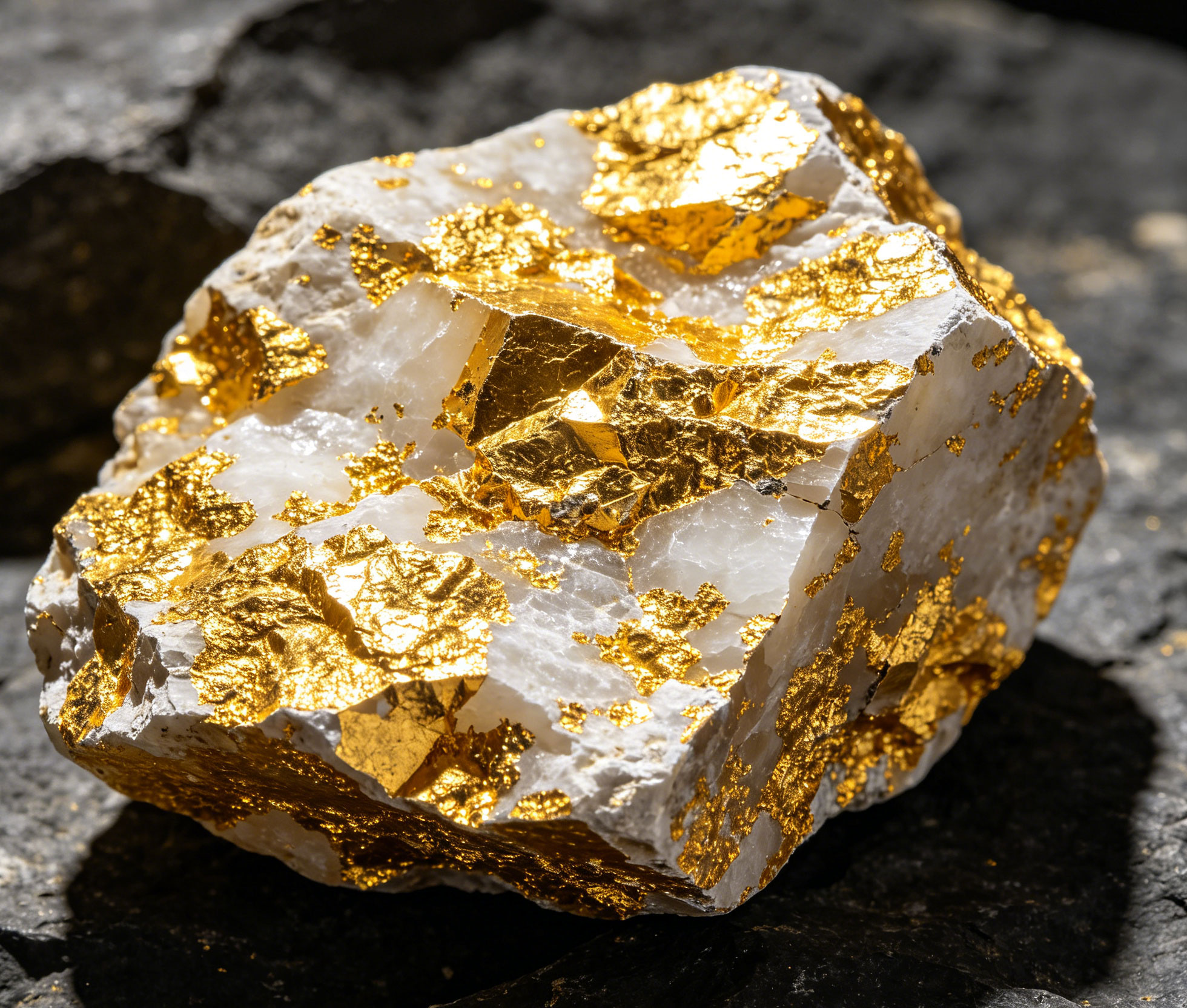

The first and most critical step is to conduct a comprehensive analysis of your gold ore sample. Gold ore varies significantly in type, grade, and composition, which directly determines the process flow, equipment selection, and overall setup. Common gold ore types include free-milling ore, refractory ore (high arsenic, high sulfur, high carbon), oxide ore, sulfide ore, and placer ore. Each type requires a different processing approach.

Ore analysis should determine key factors such as gold grade, particle size distribution, liberation size, associated minerals, and deleterious elements that may interfere with processing. For example, free-milling ore with high gold grade can be processed with simpler gravity separation or cyanidation, while refractory ore needs pretreatment steps like roasting or bacterial oxidation to unlock gold particles from sulfide matrices. Skipping ore analysis often leads to incorrect equipment selection and low gold recovery rates.

2. Location Selection: Balancing Accessibility and Cost

Choosing the right location for your gold ore processing plant is crucial for minimizing operational costs and ensuring smooth logistics. Ideal locations should have easy access to raw gold ore sources to reduce transportation costs. Proximity to water and power supply is also essential, as processing requires significant energy and water.

Additionally, consider environmental regulations and local infrastructure. Remote locations may offer lower land costs but require additional investment in roads, power generation, and water treatment systems. Urban or semi-urban locations provide better access to labor, spare parts, and transportation but may have higher land prices and stricter environmental restrictions. Always conduct a location feasibility study to weigh these factors.

3. Regulatory Compliance and Environmental Planning

Compliance with local, national, and international regulations is non-negotiable when setting up a gold ore processing plant. This includes obtaining mining licenses, environmental permits, and safety certifications. Environmental planning is particularly important, as gold processing (especially cyanidation) can generate waste that may harm the environment if not managed properly.

Incorporate environmental protection measures into your plant setup, such as tailings treatment systems, wastewater recycling, and air pollution control. This not only ensures compliance but also enhances your brand reputation and reduces the risk of fines or shutdowns.

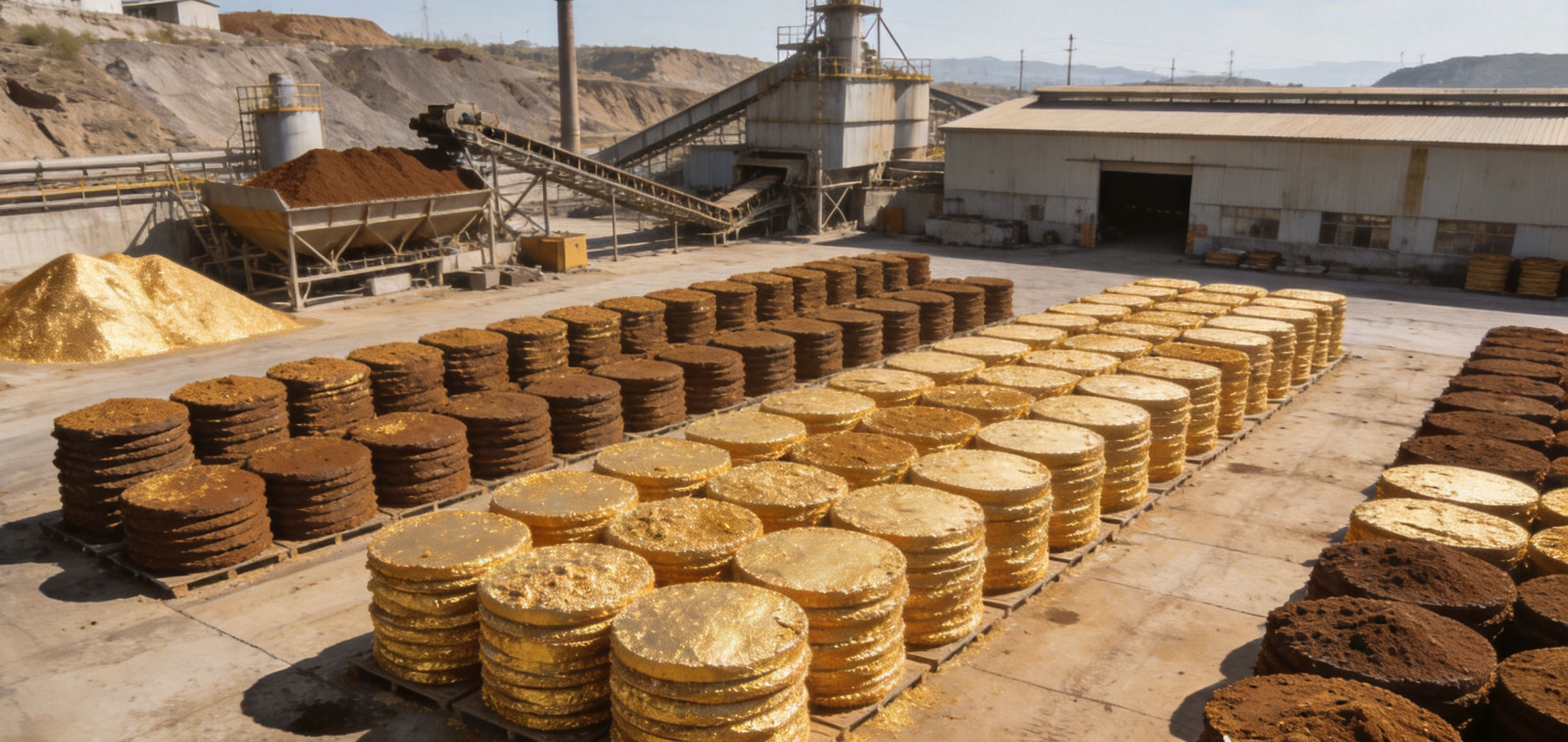

Gold ore finished product gold concentrate filtration yard

Complete Setup of a Gold Ore Processing Plant

A gold ore processing plant setup consists of several modular components, each designed to perform a specific function in the gold extraction process. The setup can be customized based on ore type, processing capacity, and budget, but the core components remain consistent across most plants.

1. Site Preparation and Infrastructure

Site preparation involves clearing the land, leveling the ground, and constructing foundational structures for equipment installation. This includes building concrete foundations for crushers, ball mills, and other heavy equipment, as well as constructing storage facilities for raw ore, intermediate products, and final gold products.

Infrastructure also includes power supply systems (either grid-connected or on-site generators for remote locations), water supply and treatment systems, and transportation routes (conveyor belts, roads) for moving ore and materials. For large-scale plants, additional infrastructure such as worker housing, offices, and maintenance workshops may be required.

2. Core Processing Equipment Setup

The core equipment of a gold ore processing plant is arranged in a logical sequence to ensure efficient gold extraction. The key equipment includes:

Pretreatment Equipment: Vibrating feeders, ore sorters, and scrubbers to remove impurities and prepare ore for crushing. Ore sorters separate waste rock from gold-bearing ore, reducing the amount of material entering subsequent processes.
Crushing Equipment: Jaw crushers (primary crushing), cone crushers (secondary and tertiary crushing), and vibrating screens. This equipment reduces raw ore from large chunks (up to 600mm) to small particles (≤10mm) for grinding.
Grinding Equipment: Ball mills, rod mills, and hydrocyclones. Grinding liberates gold particles from the ore matrix, with the fineness controlled to ensure maximum gold liberation—typically 60-80% passing 200 mesh for free-milling ore and over 85% for refractory ore.
Separation Equipment: Gravity separators (shaking tables, centrifugal concentrators), flotation machines, and cyanidation tanks (CIL/CIP systems). These equipment separate gold from gangue and other minerals.
Purification and Smelting Equipment: Desorption columns, electrolytic cells, and induction furnaces to convert gold concentrate or loaded carbon into high-purity gold ingots.
Tailings Treatment Equipment: Thickeners, filter presses, and tailings ponds to process and store waste materials, ensuring environmental compliance.

3. Automation and Control System Setup

Modern gold ore processing plants rely on intelligent automation systems to improve efficiency, reduce human error, and stabilize gold recovery rates. The control system monitors key parameters such as grinding fineness, reagent dosage, leaching time, and pH levels in real time, automatically adjusting equipment operation to optimize performance.

Automation also includes data logging and reporting features, allowing plant operators to track production metrics, identify bottlenecks, and make data-driven decisions. For large-scale plants, advanced systems like digital twins can simulate the entire process, enabling predictive maintenance and further optimization.

Step-by-Step Gold Ore Processing Plant Flow

The gold ore processing flow is a systematic sequence of steps designed to extract gold from raw ore efficiently. The exact flow varies based on ore type, but the core stages remain consistent. Below is the standard process flow for most gold ore processing plants.

1. Ore Feeding and Pretreatment

Raw gold ore is transported to the plant via trucks and unloaded into a hopper. A vibrating feeder uniformly delivers the ore to the pretreatment stage, where ore sorters remove waste rock and scrubbers break down clay agglomerates and remove excess moisture. This step ensures that only clean, gold-bearing ore enters the crushing process, reducing wear on equipment and improving efficiency.

2. Crushing and Screening

The pretreatment ore is sent to the primary crusher (jaw crusher), which reduces large ore chunks to 100-150mm. The crushed ore is then transported to the secondary crusher (cone crusher) for further reduction to 10-30mm. A vibrating screen separates qualified particles (≤10mm) from oversized material, which is returned to the crusher for reprocessing—forming a closed-circuit crushing system. This ensures uniform particle size for the grinding stage.

3. Grinding and Classification

The crushed ore is fed into a ball mill for grinding. The ball mill operates in a closed circuit with a hydrocyclone, which classifies the ore pulp by particle size. Qualified pulp (meeting the required fineness) is sent to the separation stage, while coarse particles are returned to the ball mill for regrinding. This step is critical for liberating gold particles from the ore matrix, as insufficient grinding leads to low gold recovery.

4. Gold Separation: The Core Stage

Gold separation methods depend on the ore type and gold particle size. The most common methods include gravity separation, flotation, and cyanidation (CIL/CIP), often used in combination for maximum recovery.

Gravity Separation: Suitable for coarse free-milling gold (particle size >0.1mm). It uses the density difference between gold and gangue to separate gold via shaking tables, centrifugal concentrators, or jiggers. This method is low-cost and environmentally friendly, recovering 40-60% of coarse gold early in the process.

Flotation: Ideal for sulfide-associated gold ore, where gold is closely linked to sulfide minerals. Reagents (collectors, frothers, regulators) are added to the ore pulp, causing gold-bearing sulfides to attach to air bubbles and float to the surface. The resulting gold concentrate is sent to smelting or further processing.

Cyanidation (CIL/CIP): The most widely used method for fine-grained gold and refractory ore. Cyanide solution and lime are added to the ore pulp, dissolving gold into soluble gold cyanide complexes. In CIP (Carbon In Pulp), leaching and adsorption are separate steps; in CIL (Carbon In Leach), they occur simultaneously. Activated carbon adsorbs gold from the pulp, forming loaded carbon for further processing.

5. Gold Purification and Smelting

Loaded carbon from the CIL/CIP system is sent to a desorption column, where high-temperature, high-pressure solutions strip gold from the carbon, forming a gold-rich solution (precious liquid). The precious liquid is electrolyzed to deposit gold mud on cathodes, which is then smelted in an induction furnace with flux (borax, quartz sand) to remove impurities. The final product is high-purity gold ingots (99.99% purity), ready for market.

6. Tailings Treatment and Waste Management

Tailings (waste material after gold extraction) are processed in thickeners to separate solid and liquid. The liquid is recycled back to the plant for reuse, reducing water consumption. The solid tailings are dewatered with filter presses and stored in tailings ponds or repurposed as building materials. For cyanide-based processes, tailings are treated to break down cyanide before disposal, ensuring environmental compliance.

Gold Ore Processing Plant Cost Guide

The cost of setting up and operating a gold ore processing plant varies based on several factors, including plant scale, ore type, equipment quality, location, and labor costs. Below is a detailed breakdown of the main cost components to help you budget effectively.

1. Capital Costs (One-Time Investment)

Capital costs include all one-time expenses for setting up the plant, such as:

Land and Site Preparation: Costs vary based on location—remote areas may have lower land costs but higher site development expenses (roads, power, water). For small-scale plants, land and site preparation can range from tens of thousands to hundreds of thousands of dollars; large-scale plants may cost millions.

Equipment Costs: The largest capital expense. Small-scale plants (50-200 tons per day) require equipment costing between 1 million to 5 million dollars. Medium-scale plants (200-1000 tons per day) cost 5 million to 20 million dollars, while large-scale plants (1000+ tons per day) can exceed 20 million dollars. Core equipment like ball mills, CIL/CIP systems, and smelting furnaces are the most expensive components.

Infrastructure Costs: Power supply (generators, transformers), water treatment systems, conveyor belts, and buildings (offices, warehouses, workshops) add 10-30% to the total capital cost.

Permits and Licenses: Costs for mining licenses, environmental permits, and safety certifications vary by region but typically range from tens of thousands to hundreds of thousands of dollars.

2. Operational Costs (Recurring Expenses)

Operational costs are ongoing expenses required to run the plant, including:

Labor Costs: Dependent on location and automation level. Remote areas may have lower labor costs, while urban areas and highly skilled positions (engineers, operators) command higher salaries. Labor costs typically account for 15-25% of total operational costs.

Reagent Costs: Chemicals used in processing, such as cyanide, lime, flotation reagents, and activated carbon. For cyanidation-based plants, reagent costs can be 10-20% of operational costs, depending on ore type and processing volume.

Energy Costs: Gold processing is energy-intensive, with grinding equipment consuming the most power. Energy costs (electricity, diesel for generators) account for 20-30% of operational costs, especially for remote plants relying on diesel generators.

Maintenance and Spare Parts: Regular maintenance of equipment is essential to avoid downtime. Maintenance costs (labor, spare parts, lubricants) typically range from 5-10% of operational costs.

Waste Management Costs: Treating tailings and wastewater to meet environmental standards. This includes costs for chemicals, equipment, and tailings pond maintenance.

3. Cost-Saving Tips for Gold Ore Processing Plants

To reduce costs and improve profitability, consider the following strategies:

Conduct thorough ore analysis to select the most efficient process flow, avoiding unnecessary equipment or steps.
Invest in energy-efficient equipment and automation to reduce labor and energy costs.
Recycle water and reagents (e.g., regenerate activated carbon) to minimize waste and reduce expenses.
Choose a location with easy access to raw ore, power, and water to lower transportation and infrastructure costs.
Implement predictive maintenance to reduce equipment downtime and repair costs.

Choosing the Right Gold Ore Processing Plant Setup for Your Needs

Selecting the right setup and process flow depends on your specific needs, including ore type, processing capacity, budget, and long-term goals. Small-scale miners may opt for a simple setup with gravity separation and basic crushing/grinding equipment, while large enterprises may invest in fully automated CIL/CIP systems for high-volume, high-recovery processing.

Key factors to consider include: ore grade and type, desired gold recovery rate, processing capacity, budget constraints, environmental regulations, and location. Working with a professional mining equipment supplier can help you design a customized setup that meets your needs and maximizes profitability.

Conclusion

A well-designed gold ore processing plant is a strategic investment that requires careful planning, from ore analysis and location selection to equipment setup, process optimization, and cost management. By following the guidelines in this guide, you can build a plant that delivers high gold recovery rates, stable operation, and long-term profitability.

Whether you are setting up a small-scale plant or a large industrial facility, understanding the complete setup, process flow, and cost components is essential. This guide provides the foundational knowledge you need to make informed decisions, and by integrating the right keywords, it helps your webpage rank higher in search results, attracting potential clients and partners.

If you need personalized advice on designing a gold ore processing plant setup, optimizing your process flow, or managing costs, contact our team of experts. We provide customized solutions tailored to your specific ore characteristics and business goals, helping you achieve success in the gold mining industry.
