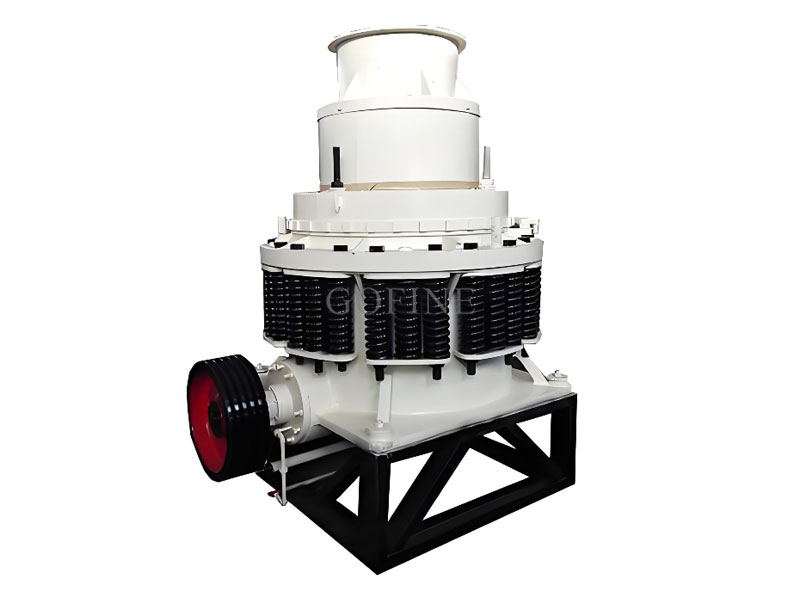

Cone Crusher
A cone crusher is a crushing equipment specifically designed for medium and fine crushing of hard materials. If a jaw crusher is the “tiger’s mouth,” responsible for the first stage of coarse crushing, then the cone crusher is like a well-coordinated “fine grinder,” processing the stone into even smaller particles afterward.
Working Principle:

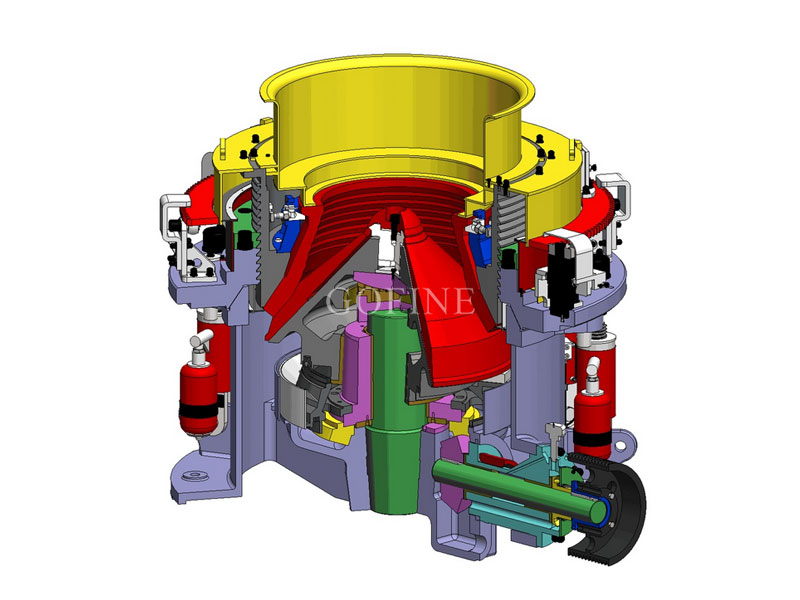

Its core principle can be summarized as “gyratory compression”: A centrally located, top-like inner cone (moving cone) rotates eccentrically around the inner surface of a fixed outer cone (stationary cone) under the drive of an eccentric mechanism. When the inner cone approaches the outer cone, the material between the two cones is forcefully compressed and bent, thus crushing it; when the inner cone moves away, the crushed, qualified material is automatically discharged under gravity. This process is continuous and stable, resulting in high production efficiency.
Equipment Advantages:
Layered crushing, excellent particle shape: Utilizing the layered crushing principle, the material forms a “stone-on-stone” inter-particle compression within the chamber, significantly increasing the proportion of cubic particles in the product and reducing the content of needle-like and flaky particles.
Hydraulic protection, intelligent and convenient: When uncrushable objects such as iron blocks enter, the hydraulic system allows the moving cone to automatically retract and expel the foreign object, then automatically reset, greatly reducing downtime. Some newer models also support one-button adjustment of the discharge port and even variable frequency speed control, optimizing output and product quality in real time.
High efficiency and durability, low maintenance costs: Key components are made of high-strength materials, and the liners have a long service life. Reliable labyrinth seals or positive pressure air seals prevent dust from entering, protecting the internal lubrication system and extending equipment life.
High efficiency and energy saving: Compared to traditional equipment, modern cone crushers can save over 15% on energy through optimized design and advanced technology.
Equipment parameters:
| Mode | Cavity type | Max feed size(mm) | Adjustment range(mm) | Processing capacity(t/h) | Motor(kw) | Weigh(t) |
| PSGB0917 | Standard thick type | 150 | 13-38 | 59-100 | 75 | 9.98 |
| PSGD0907 | Short-head thin type | 70 | 9-22 | 45-91 | 75 | 10.53 |
| PSGB1324 | Standard thick type | 205 | 19-51 | 100-180 | 160 | 22.46 |
| PSGD1308 | Short-head thin type | 115 | 6-19 | 80-160 | 160 | 22.59 |
| PSGB1626 | Standard thick type | 228 | 25-64 | 299-450 | 220 | 43.27 |
| PSGD1608 | Short-head thin type | 150 | 6-19 | 136-280 | 220 | 43.87 |
Performance Advantages
Performance Advantages
Intelligent
Automatic analysis of operating status and early warning of abnormal conditions allow you to be fully aware of how your equipment is running.
Fully automated
From crushing and feeding to concentrate output, the entire production line can be started and stopped sequentially with a single button.
Safety
The equipment is equipped with multiple mechanical interlocks and electrical protection devices to ensure the safety of personnel and equipment.
Highly adaptable
The equipment can process various types of ore, from soft limestone to high-hardness iron ore, and is adaptable to both dry and wet processing methods.
