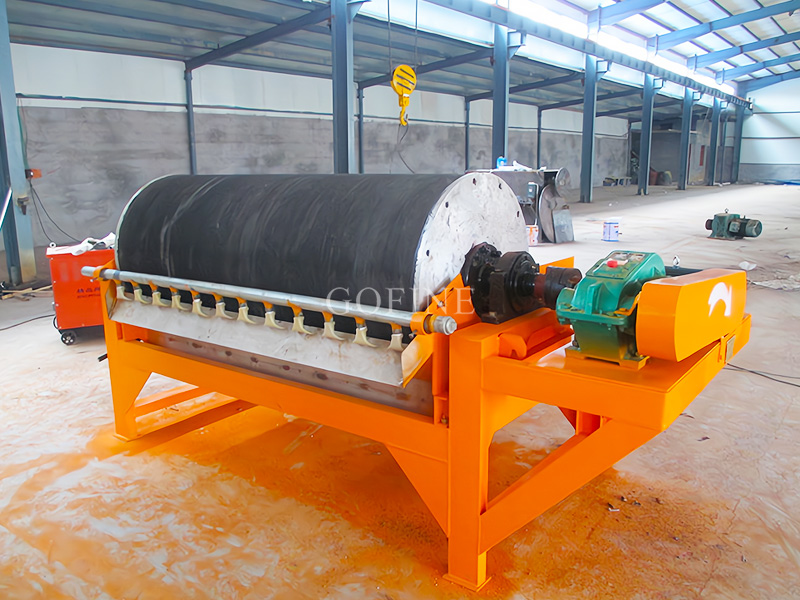

Magnetic separator
Magnetic separators are highly efficient mineral processing equipment that separates minerals based on their magnetic differences. They require no reagents and produce no pollution. Using a magnetic field, they separate magnetic minerals from non-magnetic minerals, making them a core piece of equipment for iron ore, manganese ore, ilmenite, and iron removal from non-metallic minerals.

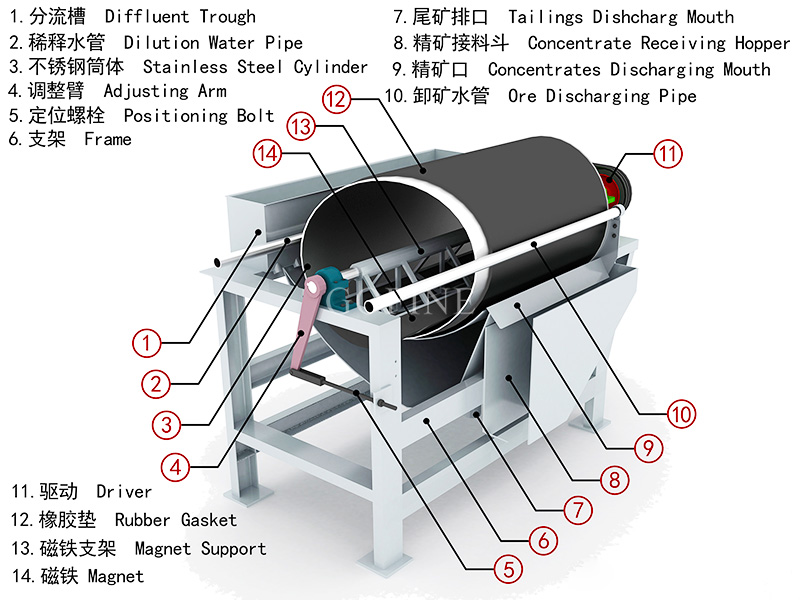

Basic Structure:
Cylinder:Made of stainless steel, non-magnetic, wear-resistant, and corrosion-resistant.
Magnetic System: Permanent magnets (neodymium iron boron) or electromagnets provide a strong magnetic field.
Tank: Holds the slurry and controls the feeding and separation space.
Transmission Device: Motor and reducer drive the cylinder rotation.
Frame, Unloading Device, and Spray Water Pipes:** Ensure stable operation and concentrate washing.
Working Principle:
In the magnetic field:** Strongly magnetic minerals are attracted and adsorbed onto the cylinder skin or toothed plates. As the cylinder rotates, they are carried to the non-magnetic zone and discharged as concentrate.
Non-magnetic/weakly magnetic minerals are unaffected by the magnetic force and are discharged directly from the tailings outlet.
This achieves the separation of magnetic and non-magnetic minerals.
Equipment Advantages:
Stable sorting effect, high recovery rate of magnetic minerals, and significant grade improvement.
Energy-saving and environmentally friendly, no reagents required, no wastewater pollution, and low operating costs.
Simple and robust structure, wear-resistant and durable, suitable for harsh mining environments.
Dry and wet operation, adaptable to different working conditions and regions.
Convenient operation and maintenance, few vulnerable parts, and low failure rate.
Wide range of applications, suitable for roughing, cleaning, iron removal, purification, and tailings disposal.
Equipment Parameters:
| Model | Drum diameter × length(mm) | highest magnetic induction | Number of rollers | Drum speed | Feed size(mm) | Motor(kw) | Productivity | Weight(t) |
| GYC-60B | ø320×600 | 3500 | 1 | 66.47.33 | 0.05-25 | 0.75 | 0.5-2.5 | 0.25 |
| GYC-60B-I | ø320×600 | 1100 | 1 | 66.47.33 | 0.063-25 | 0.75 | 0.1-3 | 0.65 |
| GYC-2×60 | ø320×600 | 3500 | 2 | 66.47.33 | 0.05-25 | 0.75 | 0.5-2.5 | 0.5 |
| GYC-3×60 | ø320×600 | 3500 | 3 | 34.5-172 | 0-8 | 1.1 | 0.8-2.5 | 1.2 |
| GYC-3×80 | ø404×800 | 3500 | 3 | 54.5-172 | 0-8 | 1.5 | 1.5-2.5 | 1.5 |
| GYC-4×80 | ø404×800 | 5000 | 4 | 54.5-172 | 0-8 | 2.2 | 1.5-2.5 | 2.4 |
Performance Advantages
Performance Advantages
Intelligent
Automatic analysis of operating status and early warning of abnormal conditions allow you to be fully aware of how your equipment is running.
Fully automated
From crushing and feeding to concentrate output, the entire production line can be started and stopped sequentially with a single button.
Safety
The equipment is equipped with multiple mechanical interlocks and electrical protection devices to ensure the safety of personnel and equipment.
Highly adaptable
The equipment can process various types of ore, from soft limestone to high-hardness iron ore, and is adaptable to both dry and wet processing methods.
