Mixing tank

Production capacity: 0.8-14 m³/min Equipment advantages: ≤500mm Motor power: 1.1-11KW Application areas: Widely used in mineral processing, mining, chemical industry, environmental protection, tailings and other fields.

Hotline： +86 151 3866 6240 richard@zzgofine.com

Consult Consult

Online message

Product Introduction

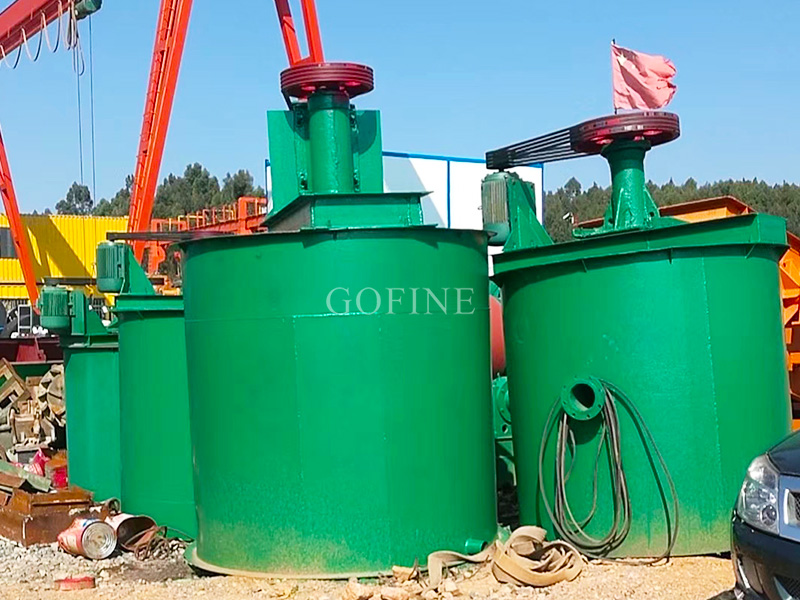

Mining mixing tanks are commonly used mixing and slurry preparation equipment in industries such as mineral processing, metallurgy, and building materials. They are primarily used to thoroughly mix mineral powder, water, and mineral processing reagents to form a slurry with uniform concentration and good reagent dispersion, providing a stable slurry for flotation, leaching, and gravity separation processes.

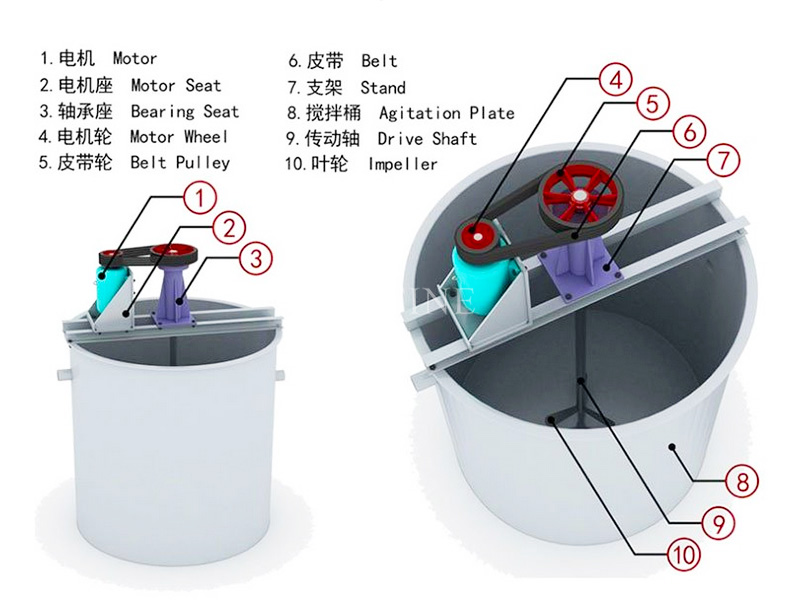

Structural Composition:
Tank Body: Welded from steel plates, corrosion-resistant and impact-resistant; capacity can be customized.
Agitation Device: Main shaft, impeller/blades; high agitation intensity, prevents settling.
Transmission System: Motor + reducer; smooth operation and high torque.
Base Support: Stable and reliable, easy to install.
Inlet/Outlet: Top inlet, bottom outlet; valve control optional.

Working Principle:
The motor drives the agitator shaft and impeller to rotate via the reducer, creating strong convection and vortexes in the slurry within the tank:
The material is powerfully agitated, dispersed, and suspended; Reagents diffuse rapidly and uniformly, interacting fully with the minerals;
This ensures stable slurry concentration, fineness, and reagent content, improving subsequent mineral processing efficiency.

Main Advantages:
Uniform mixing and stable slurry concentration
Simple structure, easy operation and maintenance
Low energy consumption and reliable operation
Highly adaptable, suitable for mixing various ores
Small footprint and easy installation

Equipment Parameters:

Model	Effective volume(m³)	External dimensions(mm)	Tank diameter(mm)	Tank height(mm)	Impeller speed(r/min)	Impeller diameter(mm)	Motor(kw)	Weight(t)
GFXB-500	0.098	600×566×954	500	500	600	200	1.1	1.2
GFXB-750	0.33	1085×858×1202	750	750	530	255	1.5	1.6
GFXB-1000	0.58	1173×1138×1491	1000	1000	530	255	1.5	1.9
GFXB-1200	1.4	1354×1310×1742	1200	1200	340	400	3	2.4
GFXB-1500	2.2	1656×1572×2171	1500	1500	320	400	3	3.1
GFXB-2000	5.6	2380×2162×2850	2000	2000	290	550	5.5	3.5
GFXB-2500	11.2	3036×2716×3543	2500	2500	280	650	15	5.7
GFXB-3000	19.1	3604×3216×4250	3000	3000	210	700	18.5	6.9
GFXB-3550	30	3940×3766×5386	3550	3550	230	850	22	7.6
GFTSO-750	0.44	1085×958×1492	750	750	674	250	3	8.5
GFTSO-1200	1.4	–	1200	1200	400	400	5.5	9.8
GFTSO-1500	2.2	2060×1620×2330	1500	1500	400-440	410	11	10.5

Performance Advantages

Intelligent

Automatic analysis of operating status and early warning of abnormal conditions allow you to be fully aware of how your equipment is running.

Fully automated

From crushing and feeding to concentrate output, the entire production line can be started and stopped sequentially with a single button.

Safety

The equipment is equipped with multiple mechanical interlocks and electrical protection devices to ensure the safety of personnel and equipment.

Highly adaptable

The equipment can process various types of ore, from soft limestone to high-hardness iron ore, and is adaptable to both dry and wet processing methods.
