Quartz ore beneficiation production line
The core purpose of quartz ore beneficiation is: impurity removal and purification → increasing SiO₂ purity → meeting industrial/photovoltaic/electronic/glass grade standards. The entire production line generally consists of: crushing → sand making/grinding → washing and desliming → classification → magnetic separation → flotation → acid washing/calcination → dehydration and drying → finished product.
Applicable raw materials:
Common quartzite, vein quartz, quartz sand
Impurities: Mica, feldspar, iron, mud, magnetite, limonite, aluminum minerals, etc.

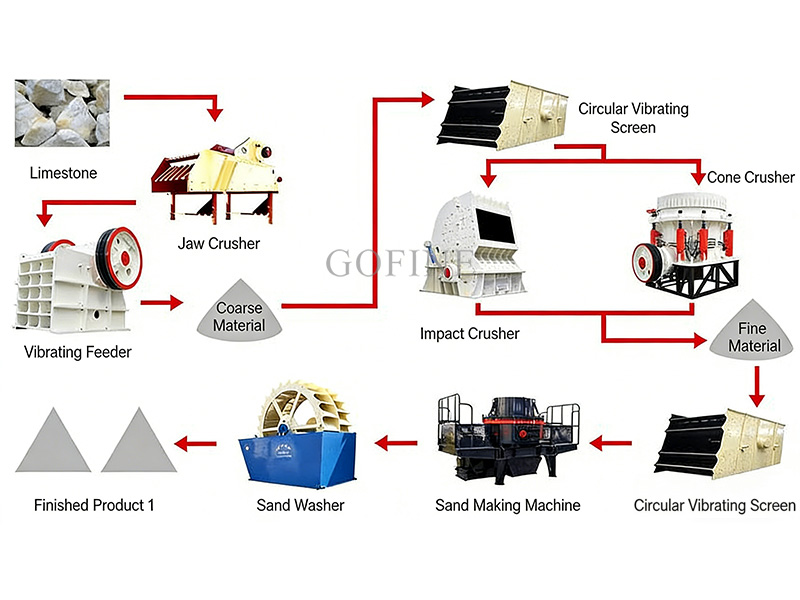

Process flow:
Coarse/medium crushing equipment: Jaw crusher, cone crusher. Function: To break large quartz pieces into smaller stones.
Sand making/grinding equipment: Sand making machine, ball mill. Function: To obtain quartz sand/quartz powder of the desired particle size.
Ore washing and desliming equipment: Spiral sand washer, wheel sand washer, hydrocyclone, dewatering screen. Function: Washes away mud and dust to prevent interference with subsequent beneficiation.

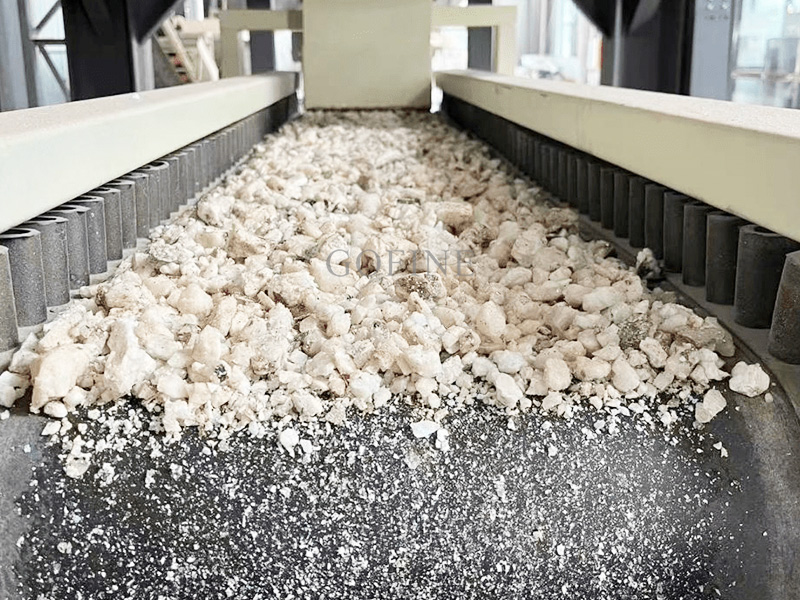

Particle size classification equipment: Vibrating screen, hydrocyclone. Function: Separates sand into coarse, medium, and fine grades.
Magnetic separation and iron removal equipment: High-gradient magnetic separator (crucial for iron removal in quartz). Function: Removes magnetic/weakly magnetic iron impurities, significantly improving whiteness.
Flotation (feldspar and mica removal) equipment: Flotation machine (SF, XJK, GF type, etc.). Function: Removes feldspar and mica, improving SiO₂ purity. Ordinary glass sand does not require flotation, but high-purity quartz must be floated.
Pickling/Calcination (for high-purity quartz) Equipment: Pickling tank, calcination furnace, cooler. Function: Removes inclusions, gas-liquid inclusions, and trace elements. Achieves:
Industrial Grade: SiO₂ 98.5%~99.5%
High-purity Grade: SiO₂ 99.9%~99.99%+
Dehydration + Drying Equipment: Dehydration screen, dryer, cooling screen. Function: Obtains dry sand for easy packaging and transportation.
Finished Product Screening and Packaging Equipment: Finished product screen, packaging machine. Output: Quartz sand in sizes such as 20–40 mesh, 40–80 mesh, and 80–120 mesh.
Core Equipment of the Production Line:
Crushing: Jaw crusher, cone crusher
Sand Making/Grinding: Sand making machine, ball mill
Washing and Screening: Sand washing machine, spiral classifier
Iron Removal: High-gradient magnetic separator
Purification: Flotation machine
High Purity: Acid washing equipment, roasting furnace
Post-Production: Dryer, finished product screen, packaging machine
Equipment Features:
High degree of automation, continuous production, stable output
Multi-stage magnetic separation + flotation combination, excellent iron and impurity removal effect
Controllable particle size, capable of producing various specifications of finished sand
Environmental protection features: Water recycling, dust collection
Moderate investment, fast return on investment, wide application market for quartz ore
Performance Advantages
Performance Advantages
Intelligent
Automatic analysis of operating status and early warning of abnormal conditions allow you to be fully aware of how your equipment is running.
Fully automated
From crushing and feeding to concentrate output, the entire production line can be started and stopped sequentially with a single button.
Safety
The equipment is equipped with multiple mechanical interlocks and electrical protection devices to ensure the safety of personnel and equipment.
Highly adaptable
The equipment can process various types of ore, from soft limestone to high-hardness iron ore, and is adaptable to both dry and wet processing methods.
