Silver ore beneficiation production line
A silver ore beneficiation production line is a complete industrial process that processes silver ore into high-grade silver concentrate. The main method is flotation, supplemented by gravity separation/cyanidation. The core steps are crushing and screening → grinding and classification → flotation separation → dewatering and drying, ultimately producing silver concentrate (with a grade of 5000–10000 g/t).

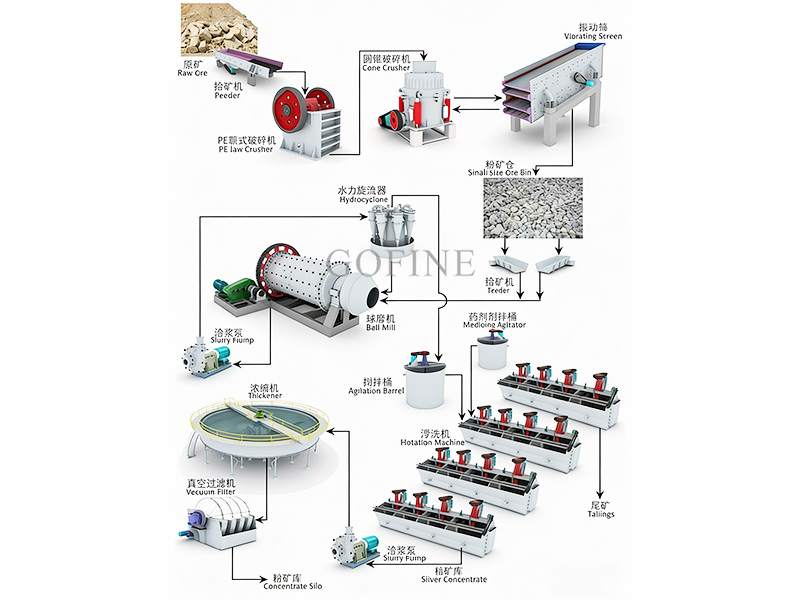

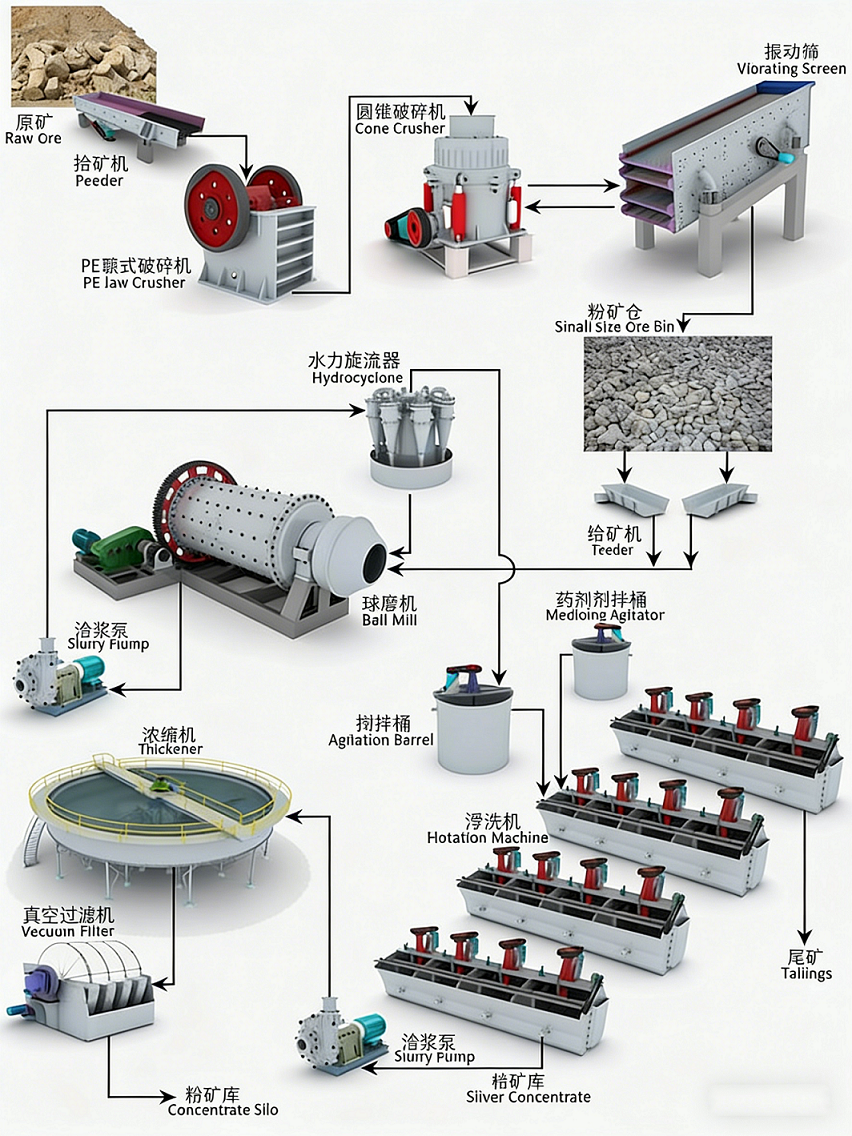

Core Process Flow (Flotation)
Crushing and Screening
Flow:
Coarse Crushing: Jaw Crusher (Raw Ore → ≤300 mm)
Medium and Fine Crushing: Cone Crusher / Impact Crusher (→ ≤40 mm)
Screening: Vibrating screen classification; qualified particles enter grinding; coarse particles are returned for further crushing (closed-loop circulation).
Equipment: Jaw Crusher, Cone Crusher, Vibrating Screen, Belt Conveyor.
Grinding and Classification (Single Liberation)
Flow:
Single-Stage Grinding: Ball Mill + Spiral Classifier / Hydrocyclone (Closed-Loop); overflow enters flotation.
Stage Grinding (Complex Ore): Coarse Grinding and Rough Separation → Regrinding and Re-separation of Coarse Concentrate to Improve Concentrate Grade and Recovery.
Equipment: Wet Ball Mill, Rod Mill, Spiral Classifier, Hydrocyclone.
Flotation Separation (Core Enrichment)
Process (Preferential Flotation / Mixed Flotation):
Pulp Preparation: Adjust the concentration (30%–40%) and pH in a stirred tank, add collectors (butylated arginium black, ethyl xanthate), modifiers (lime, copper sulfate), and frothers (pine oil, MIBC).
Roughening: One roughing stage yields a rough silver concentrate.
Scavenging: Two to three scavenging stages recover residual silver from tailings, improving overall recovery.
Cleaning: Two to three cleaning stages improve concentrate grade (up to 5000 g/t or higher).
Equipment: XCF/KYF aerated flotation machine, SF mechanically stirred flotation machine, stirred tank.
Concentrate Dewatering and Tailings Treatment
Concentrate Dewatering: Thickening in a thickener → Dewatering in a filter (plate and frame/ceramic) → Drying in a dryer to obtain a silver concentrate with a moisture content of **<10%**.
Tailings Treatment: Tailings slurry is dewatered by a thickener, then dry-piled or used for underground backfilling; recycled water is reused.
Equipment: Thickener, plate and frame filter press, ceramic filter, dryer.
Production Line Features:
High Adaptability: Suitable for independent silver mines, associated silver mines, and oxidized/sulfide ores.
High Recovery Rate: Flotation + combined process achieves 85%–95% silver recovery.
Environmentally Friendly and Controllable: Tailings dry-piling, water reuse, cyanidation process with strict closed-loop leakage prevention.
High Automation: Centralized DCS control ensures stable operation and reduces manual labor.
Performance Advantages
Performance Advantages
Intelligent
Automatic analysis of operating status and early warning of abnormal conditions allow you to be fully aware of how your equipment is running.
Fully automated
From crushing and feeding to concentrate output, the entire production line can be started and stopped sequentially with a single button.
Safety
The equipment is equipped with multiple mechanical interlocks and electrical protection devices to ensure the safety of personnel and equipment.
Highly adaptable
The equipment can process various types of ore, from soft limestone to high-hardness iron ore, and is adaptable to both dry and wet processing methods.
