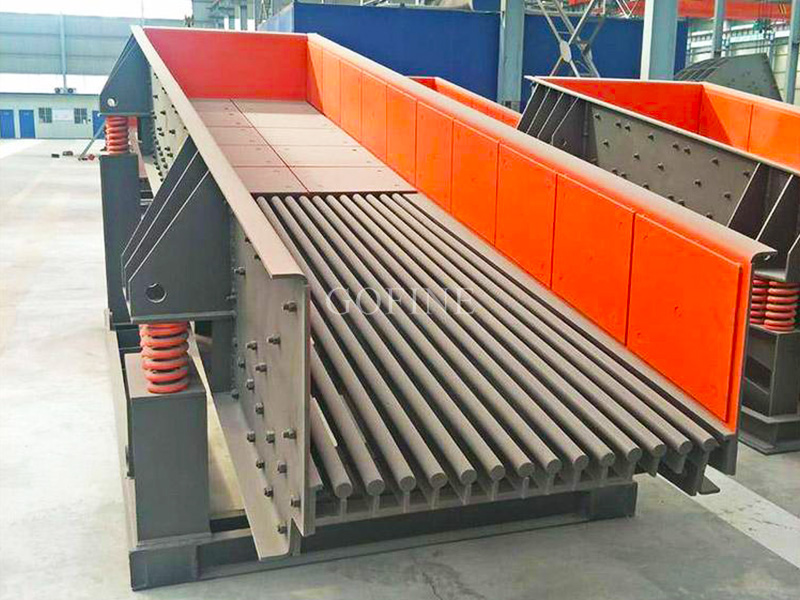

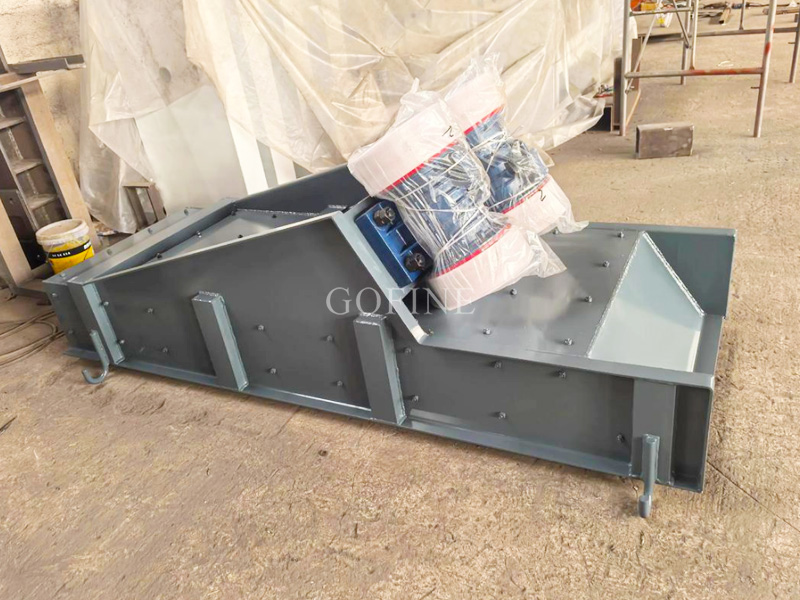

Vibrating feeder

Production Capacity: 10-1000 t/h Equipment Advantages: Provides uniform, timed, and continuous feeding from the storage silo to the receiving device. Motor Power: 10-100 kW Application Areas: Widely used in crushing and screening equipment in industries such as metallurgy, coal mining, mineral processing, building materials, chemicals, and abrasives.

Hotline： +86 151 3866 6240 richard@zzgofine.com

Consult Consult

Online message

Product Introduction

A vibrating feeder is a front-end feeding device in mining, sand and gravel, and mineral processing production lines. Its main function is to uniformly, quantitatively, and continuously feed lumpy and granular materials to the next stage of equipment (crusher, conveyor, ball mill, etc.), preventing material blockage and overload. It is a key piece of equipment for the stable operation of the production line.

Working Principle:
Directional vibration is generated by a vibrating motor or exciter. The material jumps forward in the conveying direction within the trough, achieving continuous, uniform, and stable feeding. The feed rate can be controlled by adjusting the amplitude and frequency.

Equipment Structure:
Trough: Welded from wear-resistant steel plates, it withstands material impact and is sturdy and durable.
Excitation Device: A vibrating motor or eccentric exciter generates vibration force.
Damping Springs: Reduce machine vibration and minimize impact on the foundation.
Frame: Supports the entire machine, providing high stability.
Motor Mount and Drive Unit: Power source, ensuring reliable operation.

Equipment Features:
Uniform and stable feeding, adjustable feed rate to avoid clogging and overload
Simple structure, easy installation, low failure rate
Wear-resistant and impact-resistant, capable of directly withstanding large ore drops
Smooth operation, low noise, low energy consumption
Seamless and dustproof, suitable for harsh mining environments
Can operate continuously for 24 hours, suitable for automated production lines

Equipment Parameters:

Model	Feed size(mm)	Capacity(t/h)	Motor(kw)	Weight(t)	Trough dimension(mm)	Overall dimension(mm)
GZD-850	≤400	40-100	7.5	3.9	850×3000	3100×1790×1610
GZD-960	≤500	120-210	11	66.47.33	960×3800	3840×1960×1620
GZD-1100	≤600	150-350	15	66.47.33	1100×4200	4380×2100×1670
GZD-1300	≤750	350-530	22	34.5-172	1300×4900	5200×2370×1720
GZD-1500	≤800	450-810	30-45	54.5-172	1500×6000	6160×2918×2292

Performance Advantages

Intelligent

Automatic analysis of operating status and early warning of abnormal conditions allow you to be fully aware of how your equipment is running.

Fully automated

From crushing and feeding to concentrate output, the entire production line can be started and stopped sequentially with a single button.

Safety

The equipment is equipped with multiple mechanical interlocks and electrical protection devices to ensure the safety of personnel and equipment.

Highly adaptable

The equipment can process various types of ore, from soft limestone to high-hardness iron ore, and is adaptable to both dry and wet processing methods.
